TXU Series

TXU Contact Type Connection Series

TX series products guide LED display into the era of micro-pitch, achieving 4K UHD resolution at a smaller screen size. The new size allows the micro-pitch LED display to be used in applications that originally belong to projection or tiled LCD products, to better utilize the outstanding features of LED products in terms of brightness, contrast, color, seamless, etc.

Prominent Features

Its main technical advantages include: self-researched Leyard A3 ASIC main control chip, common cathode LED driving method, single-point brightness and chromaticity correction, advanced image processing technology, image color enhancement processing, image denoising, image sharpening , ultrathin front maintenance, support DCI-P3 color gamut, etc.

Message

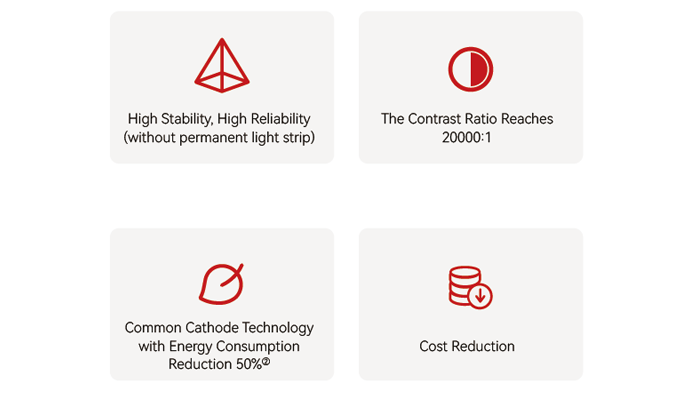

Product Highlights

LEYARD BLACK DIAMOND SERIES

Using Micro LED technology, the Black Diamond Series is a revolution in packaging technology and process, breaking through the bottleneck of low production yield and high processing costs, and can be used in displays with a pitch above 1.0mm.
> Leyard's new packaging technology, advanced display technology Micro LED, full flip chip, mass transfer.
> The deep black LED module with ultra-high brightness brightness is 2000nit; contrast ratio is 20,000:1; better uniformity.

LEYARD BLACK DIAMOND SERIES

> Agile-cabinet
With modular unit design, the series meets the needs of high-end indoor applications. It suitable for a wide range of applications for its pitch is from 0.4mm to 1.8mm①.

TX-MICRO LED (RGB FULL FLIP CHIP)

In 2020, with common shaded driver chips, self-developed A3™ ASIC master control chips and mega-transfer technology, Leyard is the first to achieve mass production of Micro LED display, officially leading the industry into the micro-pitch era.
> Micro LED Chips--Nanoscale flip chip size less than 100 microns (100um).
High luminous efficiency; uniform light output; reduced thermal resistance; reduced wire bonding process; stable and reliable.

TX-MICRO LED (RGB FULL FLIP CHIP)

> Self-Developed Molding Packaging Process
High consistency, good colour uniformity and higher contrast ratio.

TX-MICRO LED (RGB FULL FLIP CHIP)

> Ultra-Low Power Consumption--Self-developed common cathode driver IC and Leyard A3™ ASIC main controller chip.

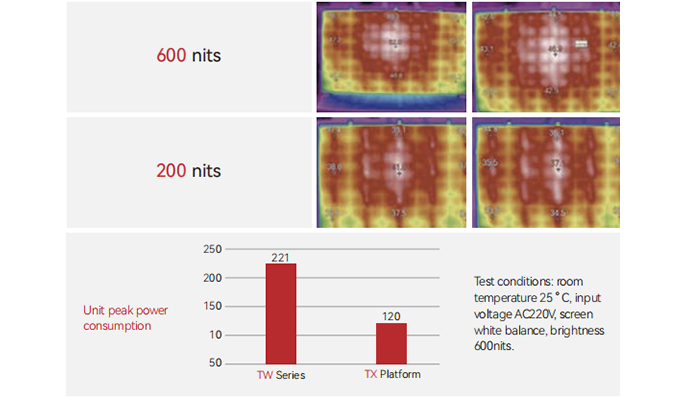

Power consumption is approximately 27% less than a co-positive driver design at the same brightness (600-800nit). It can achieve 2000nit peak brightness at the same peak power consumption.

TX-MICRO LED (RGB FULL FLIP CHIP)

> Superb Colour
With advanced image processing technology, the series achieves a 100% DCI-P3 colour gamut with twice the chromaticity.

TX-MICRO LED (RGB FULL FLIP CHIP)

> Minimum Pixel Pitch Is 0.4mm
P0.4 TX-Micro is the first product to be mass-produced, leading the LED display industry to develop high standards in electronic design and process manufacturing.

TX-MICRO LED (RGB FULL FLIP CHIP)

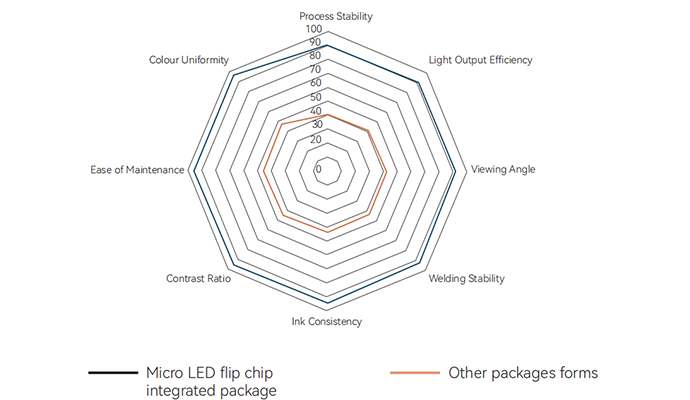

> Comprehensive Advantages

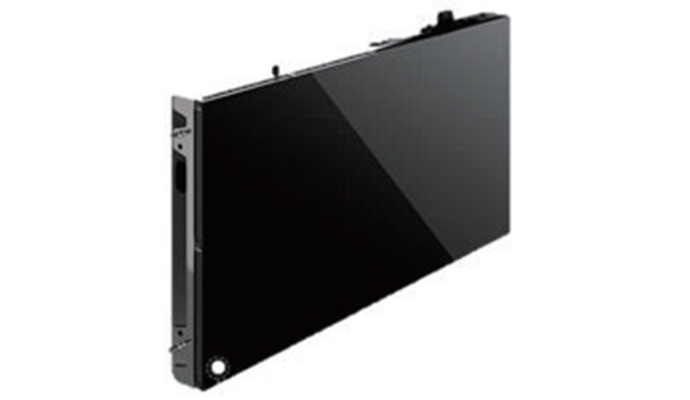

TX-MINI COB (RGB FULLY FLIP-CHIP COB PACKAGE)

COB technology refers to LED packaging technology where the LED chip is solidified directly onto a printed circuit board, rather than an already formed LED package soldered to a PCB.
Leyard can independently control the process of flip chip COB modules to achieve 100% electrical testing and postrepair yields.
> Mini
With Mini LED flip-chip, this series is available in sizes 100μm - 200μm. Fine pitch; higher pixels

TX-MINI COB (RGB FULLY FLIP-CHIP COB PACKAGE)

> Full Flip Chip
With RGB Full Flip Chip and COB technology, the series has high contrast ratio. Up to 95% of the display unit is black. With Full flip chip, it reduces process, avoids failure caused by soldering line, and greatly improves stability.

TX-MINI COB (RGB FULLY FLIP-CHIP COB PACKAGE)

> Easy Maintenance

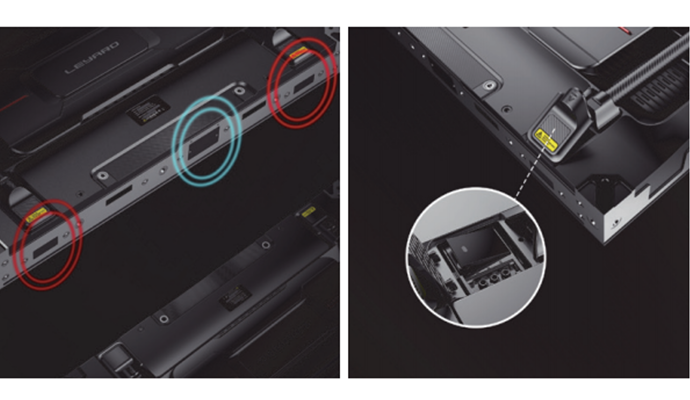

Supports front maintenance for greater convenience; special process with the following features: being wear resistant, scratch resistant, dust-proof, anti-static, waterproof, and washable.

TX-MINI COB (RGB FULLY FLIP-CHIP COB PACKAGE)

> Energy Saving
Using common cathode drive technology and selfdevelopedLeyard AJ™ ASIC master chip, this series saves about 27% energy

TX-MINI COB (RGB FULLY FLIP-CHIP COB PACKAGE)

> High Contrast
Contrast ratio up to 30,000:1.
The flip chip combined with the surface coating technology brings higher luminous efficiency and higher contrast ratio, significantly improving the product quality.

HIGH FRAME RATE HFR

The TX Platform supports high frequency HFR input signals, which can currently support 120Hz (2D).

SUPPORT DCI P3 COLOR GAMUT

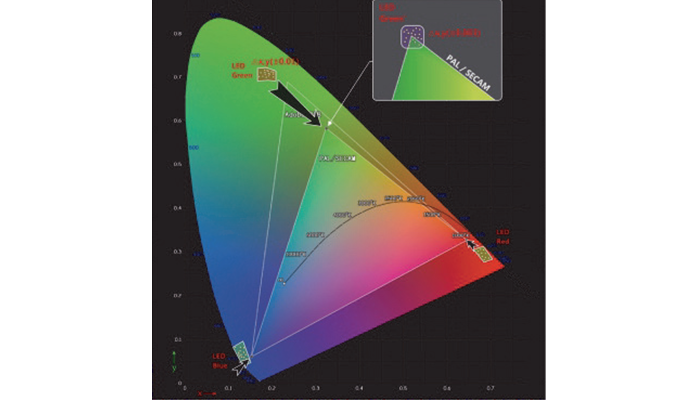

The color gamut of TX platform products can be as bigger as DCI P3 standard.
Compared with Rec. 709, there are more red and green color to be shown, and the blue is more precise.

10BIT

The TX Platform supports both 8bit and 10bit, allowing for higher quality video content to be displayed.

ADVANCED IMAGE PROCESSING TECHNOLOGY

Leyard master control has strong video processing and correction data calculation capabilities to output high-definition video images. It has broadcast-quality video processing technology, 10bit grayscale and 16bit color processing capabilities, can display 281 trillion colors. It automatically adapts to 50/60Hz signal source, scans frame by frame
to improve picture clarity, and has high image resolution, image can be restored pixel by pixel, clear and sharp. It also performs image noise reduction, sharpening, color optimization and color temperature adjustment.

COLOR ENHANCEMENT

> Color enhancement processing improves the useful information in the image.
>Make dim image clear and bright or emphasize certain features.
>Enlarge the difference between features of different objects in the image and suppress features that are not of interest.
>Improve image quality, enrich information, and enhance image interpretation and recognition.

IMAGE NOISE REDUCTION

Automatic image noise reduction to make the image smoother and enhance viewing experience.

IMAGE SHARPENING

Sharpening images by video processor can reveal more details and textures, enhance the grayscale contrast, and better identify the image features.

ADVANCED MOTION COMPENSATION

LED features Nanosecond response time, the internal between ON and OFF is extremely short. It could rapidly response without Visual Staying Phenomenon, very clear. It has big advantage for those applications requiring super good dynamic rendering effect. The self emitting mode for LED needs no response time, no visual staying phenomenon happened even when people observe the rapid movement objects.

VIEWER-FRIENDLY

TX platform products deliver an amazing viewing experience.

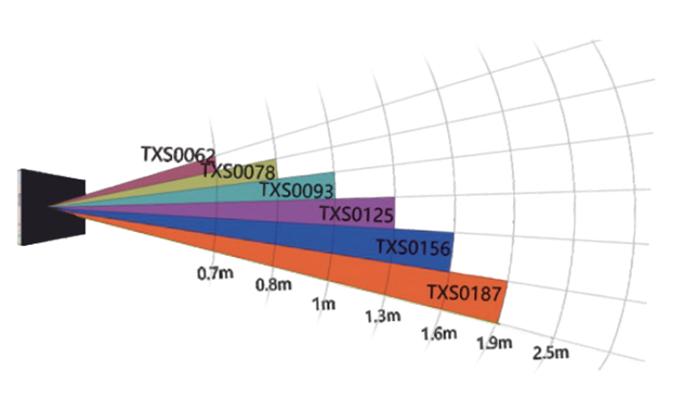

The incredible short viewing distance will introduce the products to brand-new applications.

COMMON CATHODE DRIVE MODE

Common cathode drive mode allows precise voltage control.
While reducing heat generation, the power consumption and probability of LED damage are effectively reduced, and the average life of LEDs is improved.

PIXEL BY PIXEL BRIGHTNESS AND COLOR CALIBRATION

Professional pixel-by-pixel brightness and color calibration, not full screen calibration, high precision, color uniformity <±0.003 (at 6500K white balance).

EASY TO UPGRADE DISPLAY RESOLUTION

The TX series adopts a modular design, and the control system supports 2K to 4K upgrades. It only needs to replace the control module to upgrade the screen from 2K to 4K.

CONTACT CONNECTIONS

The TXU Series - -large screen assembly solutions Wireless connection between cabinets; the series is easy to operate, anti-interference.

Solution

The TX Platform is a 4K UHD and 8K UHD compliant LED display. It supports HDR, HFR, WCG, 10bit and other features of the 4K UHD standard.

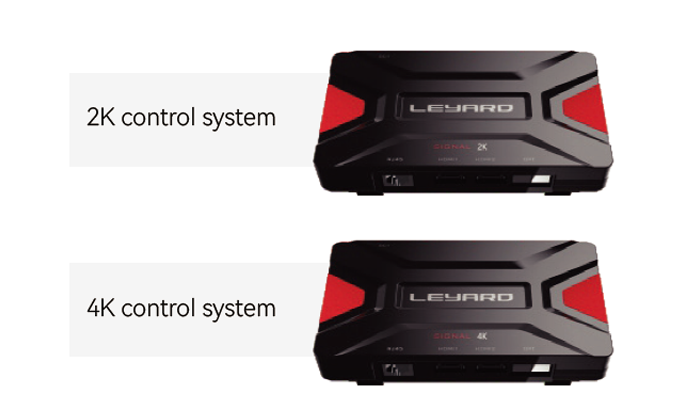

Using standard 2K and 4K HDMI video input interfaces, the series is integrated directly into the corresponding resolution display area, simplifying the system architecture. What's more，the series drastically reduces the amount of cabling and supports 3D.

Application

 Design Centre
Command Hall
Television Studio

 Conference Room

 Exhibition Centre

 Home Cinema

Specifications

TXU0093

TXU0125-L

TXU0156-L

TXU0187-L

TXU0046

TXU0062

TXU0078

TXU0093

Item
Pixel Configuration
Pitch (mm)
Module Resolution (WxH)
Cabinet Resolution
Cabinet Dimension (WxHxD, mm)
Pixel Density (pixel/㎡)
Surface Flatness (mm)
Brightness Calibration
Peak Brightness (nits) (after calibration)
White Balance Brightness (nits) (after calibration)
Color Temperature（K）
Brightness Uniformity
Viewing Angle (H/ V) °
Contrast Ratio
Drive Mode
Grey Level (bit)
Refresh Rate (Hz)
Operation Temperature (℃)
Storage Humidity (RH)
Operation Humidity (RH)

                                                                                TXU0093

                                                                                Leyard Black Diamond Micro LED

                                                                                0.9375

                                                                                160x180

                                                                                640x360

                                                                                600x337.5x78.5

                                                                                1137778

                                                                                ≤0.1

                                                                                Yes

                                                                                2000

                                                                                1000-1200 *

                                                                                3000~10000 adjustable

                                                                                ≥97%

                                                                                170/ 170

                                                                                15000:1

                                                                                Common cathode constant current drive

                                                                                16

                                                                                1920~7680

                                                                                -10 ~ 40

                                                                                10~85% no condensation

                                                                                10~80% no condensation

                                                                                TXU0125-L

                                                                                Leyard Black Diamond Micro LED

                                                                                1.25

                                                                                120×270

                                                                                480x270

                                                                                600x337.5x78.5

                                                                                640000

                                                                                ≤0.1

                                                                                Yes

                                                                                2000

                                                                                1000-1200 *

                                                                                3000~10000 adjustable

                                                                                ≥97%

                                                                                170/ 170

                                                                                20000:1

                                                                                Common cathode constant current drive

                                                                                16

                                                                                1920~7680

                                                                                -10 ~ 40

                                                                                10~85% no condensation

                                                                                10~80% no condensation

                                                                                TXU0156-L

                                                                                Leyard Black Diamond Micro LED

                                                                                1.5625

                                                                                96×216

                                                                                384×216

                                                                                600x337.5x78.5

                                                                                409600

                                                                                ≤0.15

                                                                                Yes

                                                                                2000

                                                                                1000-1200 *

                                                                                3000~10000 adjustable

                                                                                ≥97%

                                                                                170/ 170

                                                                                20000:1

                                                                                Common cathode constant current drive

                                                                                16

                                                                                1920~7680

                                                                                -10 ~ 40

                                                                                10~85% no condensation

                                                                                10~80% no condensation

                                                                                TXU0187-L

                                                                                Leyard Black Diamond Micro LED

                                                                                1.875

                                                                                80×180

                                                                                320×180

                                                                                600x337.5x78.5

                                                                                284444

                                                                                ≤0.15

                                                                                Yes

                                                                                2000

                                                                                1000-1200 *

                                                                                3000~10000 adjustable

                                                                                ≥97%

                                                                                170/ 170

                                                                                20000:1

                                                                                Common cathode constant current drive

                                                                                16

                                                                                1920~7680

                                                                                -10 ~ 40

                                                                                10~85% no condensation

                                                                                10~80% no condensation

                                                                                TXU0046

                                                                                Leyard Micro LED

                                                                                0.46875

                                                                                320x360

                                                                                1280x720

                                                                                600x337.5x78.5

                                                                                4550968

                                                                                ≤0.1

                                                                                Yes

                                                                                750

                                                                                500-600 *

                                                                                3000~10000 adjustable

                                                                                ≥97%

                                                                                170/150

                                                                                5000:1

                                                                                Common cathode constant current drive

                                                                                16

                                                                                1920~7680

                                                                                -10 ~ 40

                                                                                10~85% no condensation

                                                                                10~80% no condensation

                                                                                TXU0062

                                                                                Leyard Micro LED

                                                                                0.625

                                                                                240x270

                                                                                960x540

                                                                                600x337.5x78.5

                                                                                2560000

                                                                                ≤0.1

                                                                                Yes

                                                                                800

                                                                                600

                                                                                3000~10000 adjustable

                                                                                ≥97%

                                                                                170/150

                                                                                6000:1

                                                                                Common cathode constant current drive

                                                                                16

                                                                                1920~7680

                                                                                -10 ~ 40

                                                                                10~85% no condensation

                                                                                10~80% no condensation

                                                                                TXU0078

                                                                                Leyard Micro LED

                                                                                0.78125

                                                                                192x216

                                                                                768x432

                                                                                600x337.5x78.5

                                                                                1638400

                                                                                ≤0.1

                                                                                Yes

                                                                                1200

                                                                                800-1000 *

                                                                                3000~10000 adjustable

                                                                                ≥97%

                                                                                170/150

                                                                                10000:1

                                                                                Common cathode constant current drive

                                                                                16

                                                                                1920~7680

                                                                                -10 ~ 40

                                                                                10~85% no condensation

                                                                                10~80% no condensation

                                                                                TXU0093

                                                                                Leyard Micro LED

                                                                                0.9375

                                                                                160x180

                                                                                640x360

                                                                                600x337.5x78.5

                                                                                1137778

                                                                                ≤0.1

                                                                                Yes

                                                                                2000

                                                                                1000-1200 *

                                                                                3000~10000 adjustable

                                                                                ≥97%

                                                                                170/150

                                                                                10000:1

                                                                                Common cathode constant current drive

                                                                                16

                                                                                1920~7680

                                                                                -10 ~ 40

                                                                                10~85% no condensation

                                                                                10~80% no condensation

Remark: Above data is subject to change without prior notice
