High-performance Outdoor LED Display

Leyard NSO series is a high-performance outdoor LED display available in plastic (NSO-E) and aluminum (NSO-G) back shell structures. It offers IP66 waterproofing, a slim, lightweight design, efficient heat dissipation, and energy-saving operation for harsh conditions.

PRO FEATURES

- High Refresh Rate

- IP66 Protection Grade

- High Brightness

- Quick Front/Rear Installation and Maintenance

Message

Product Highlights

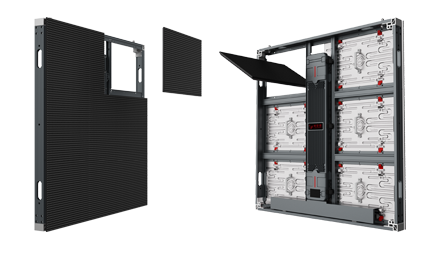

Quick Front/Rear Installation and Maintenance

Occupies less space, enables more ﬂexible installation, and allows for easier maintenance.

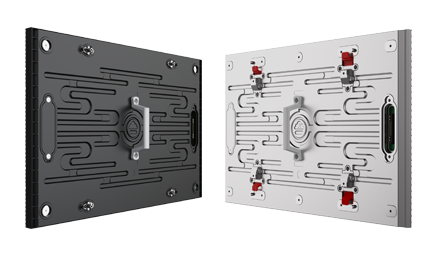

Dual Connectors for Modules

The module features a universal design with connectors on both the left and right sides, facilitating installation and maintenance.

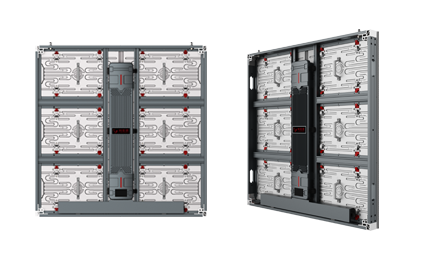

Aluminum Back Shell Class B

Compliant with Class B standards, NSO-G is suitable for a wide range of traﬃc and heavy industrial applications, such as airports, railway stations, and mining operations.
· Reduced EM Emissions
· Higher environmental adaptability
· Stronger anti-interference ability
* The certiﬁcation is expected to be completed by Q2-Q3 of 2026.

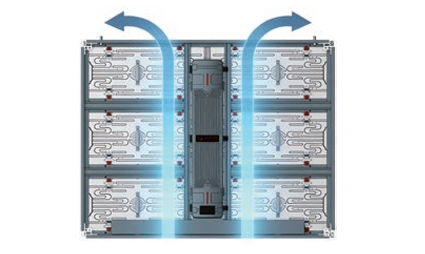

Eﬃcient Heat Dissipation

Features a eﬃcient cooling system with large-area dissipation and dedicated convection channels, ensuring reliable performance without fans.

This independent power box can ensure the thermal stability and performance of the display module.

Solution

Leyard NSO outdoor LED series is engineered for versatile and demanding applications. It delivers impactful visibility for outdoor advertising and digital billboards, enhances retail atmospheres in shopping malls, provides dynamic information displays at scenic spots, and ensures thrilling live viewing experiences in stadiums. Built to withstand harsh environments, it reliably delivers vibrant, high-brightness visuals wherever they are required.

Application

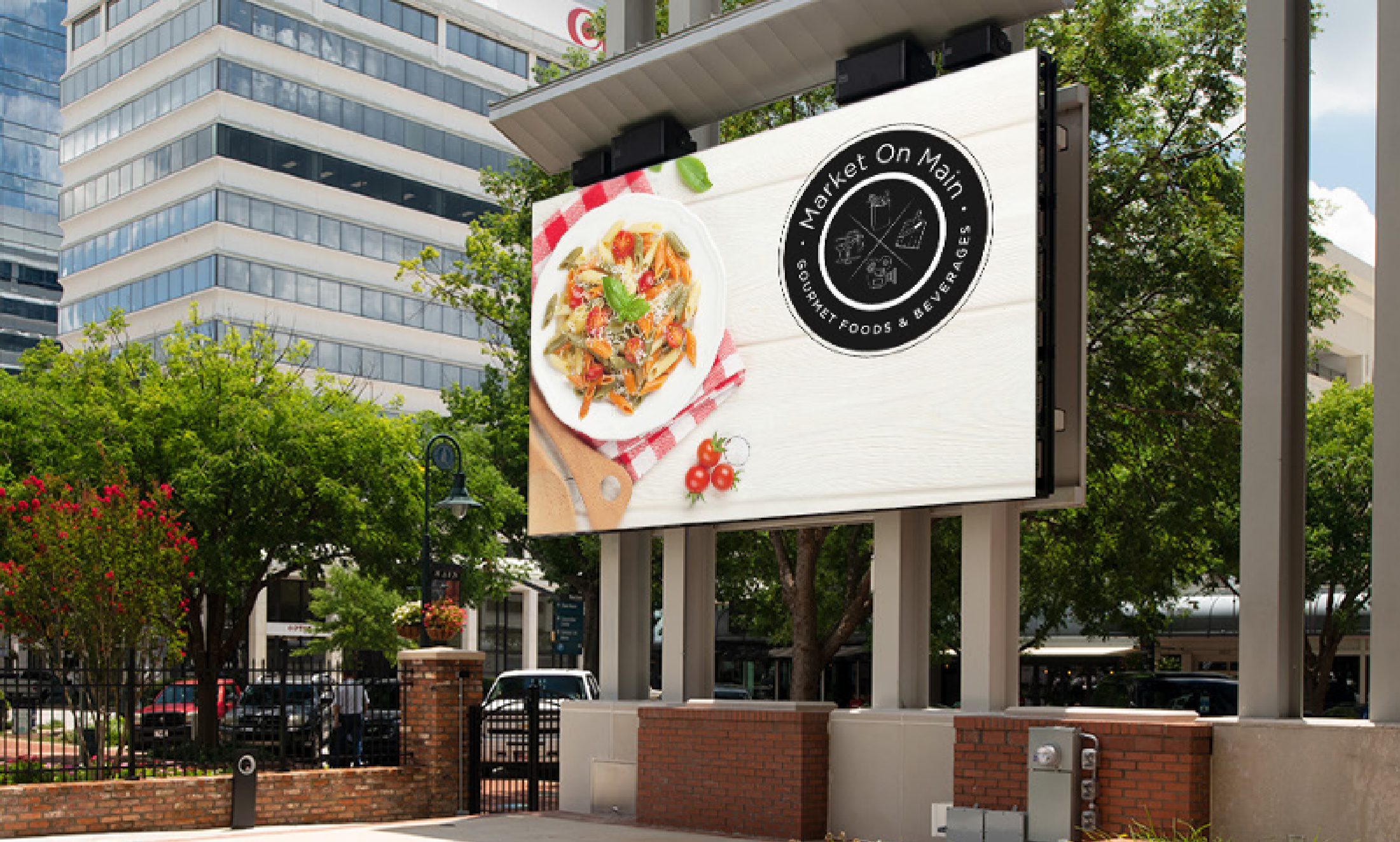

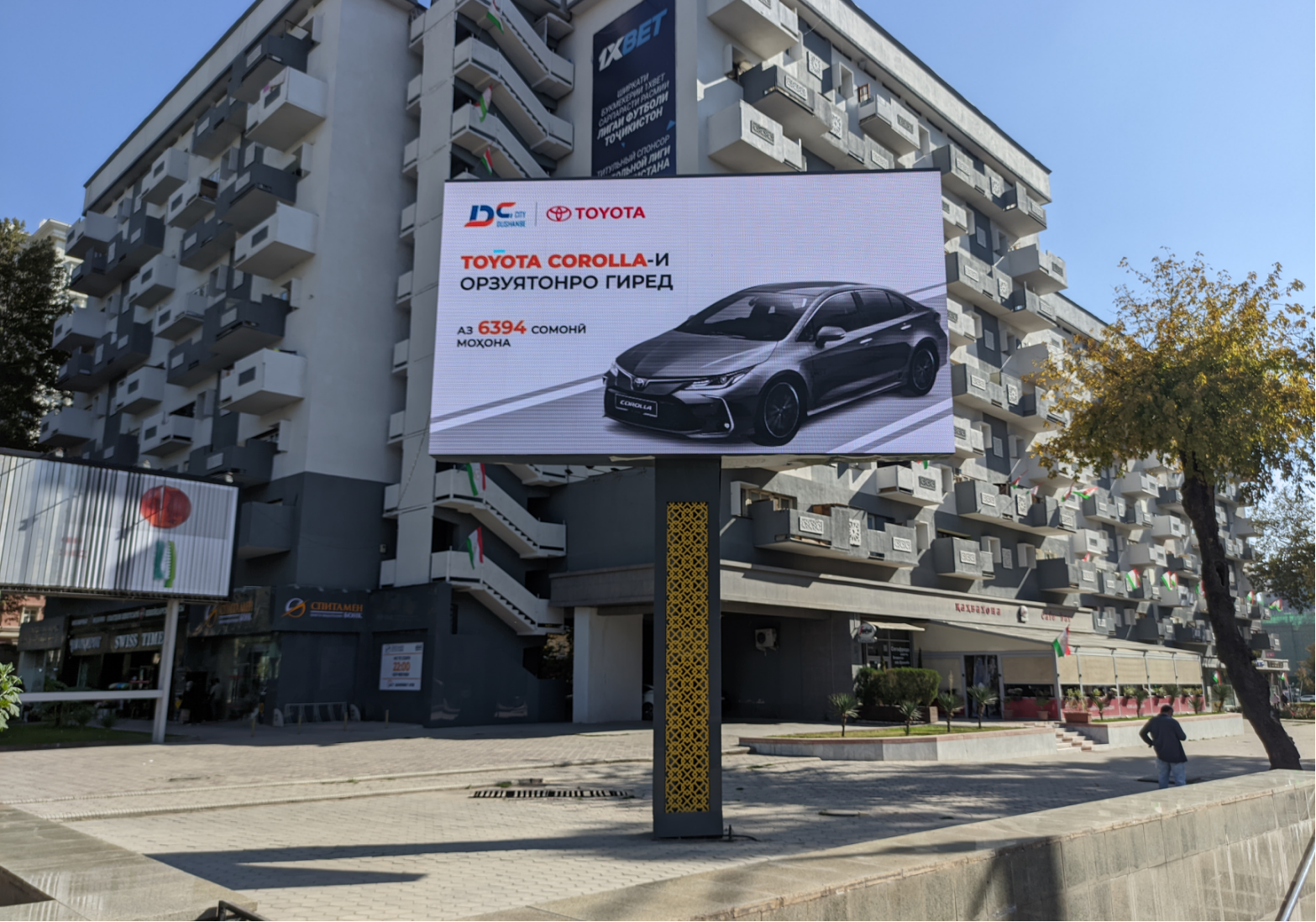

Outdoor advertisement

Shopping malls

Scenic spots

Stadiums

Specifications

NSO3S-G

NSO4S-G

NSO6S-G

NSO10S-G

NSO3S-E

NSO4S-E

NSO6S-E

NSO10S-E

Item
Pixel Pitch (mm)
Module Resolution
Module Size (mm)
Cabinet Dimension (WxHxD) (mm)
Max Brightness Calibrated (nit)
Contrast Ratio
Max/Ave Power Consumption (W/㎡)
Front-Side IP Rating
Operation/Storage Temperature (℃)

                                                                                NSO3S-G

                                                                                3.9

                                                                                128x84

                                                                                500x333.3

                                                                                1000x1000x87

                                                                                ≥7000

                                                                                10000:1

                                                                                550/200

                                                                                IP66

                                                                                -30~50/-40~60

                                                                                NSO4S-G

                                                                                4.8

                                                                                104x70

                                                                                500x333.3

                                                                                1000x1000x87

                                                                                ≥7500

                                                                                10000:1

                                                                                550/200

                                                                                IP66

                                                                                -30~50/-40~60

                                                                                NSO6S-G

                                                                                6.9

                                                                                72x48

                                                                                500x333.3

                                                                                1000x1000x87

                                                                                ≥7500

                                                                                10000:1

                                                                                550/200

                                                                                IP66

                                                                                -30~50/-40~60

                                                                                NSO10S-G

                                                                                10.4

                                                                                48x32

                                                                                500x333.3

                                                                                1000x1000x87

                                                                                ≥7500

                                                                                10000:1

                                                                                550/200

                                                                                IP66

                                                                                -30~50/-40~60

                                                                                NSO3S-E

                                                                                3.9

                                                                                128x84

                                                                                500x333.3

                                                                                1000x1000x87

                                                                                ≥7000

                                                                                10000:1

                                                                                550/200

                                                                                IP66

                                                                                -30~50/-40~60

                                                                                NSO4S-E

                                                                                4.8

                                                                                104x70

                                                                                500x333.3

                                                                                1000x1000x87

                                                                                ≥7500

                                                                                10000:1

                                                                                550/200

                                                                                IP66

                                                                                -30~50/-40~60

                                                                                NSO6S-E

                                                                                6.9

                                                                                72x48

                                                                                500x333.3

                                                                                1000x1000x87

                                                                                ≥7500

                                                                                10000:1

                                                                                550/200

                                                                                IP66

                                                                                -30~50/-40~60

                                                                                NSO10S-E

                                                                                10.4

                                                                                48x32

                                                                                500x333.3

                                                                                1000x1000x87

                                                                                ≥7500

                                                                                10000:1

                                                                                550/200

                                                                                IP66

                                                                                -30~50/-40~60

Remark: Above data is subject to change without prior notice
