VHC Series by adopting VHD LED display module

VHC SERIES LED DISPLAY CABINET

VHC is the cabinet equipped with VHD modules, which has the dual-power supply and dual signal backup. It is the full front access panel. The product has the edge cut to support right-angle installation (seamless)

KEY FEATURES

High Contrast Ratio
Wide Viewing Angle
Thin and Light Weight
Easy for Installation
ALL-IN-ONE
High Refresh Rate

Message

Product Highlights

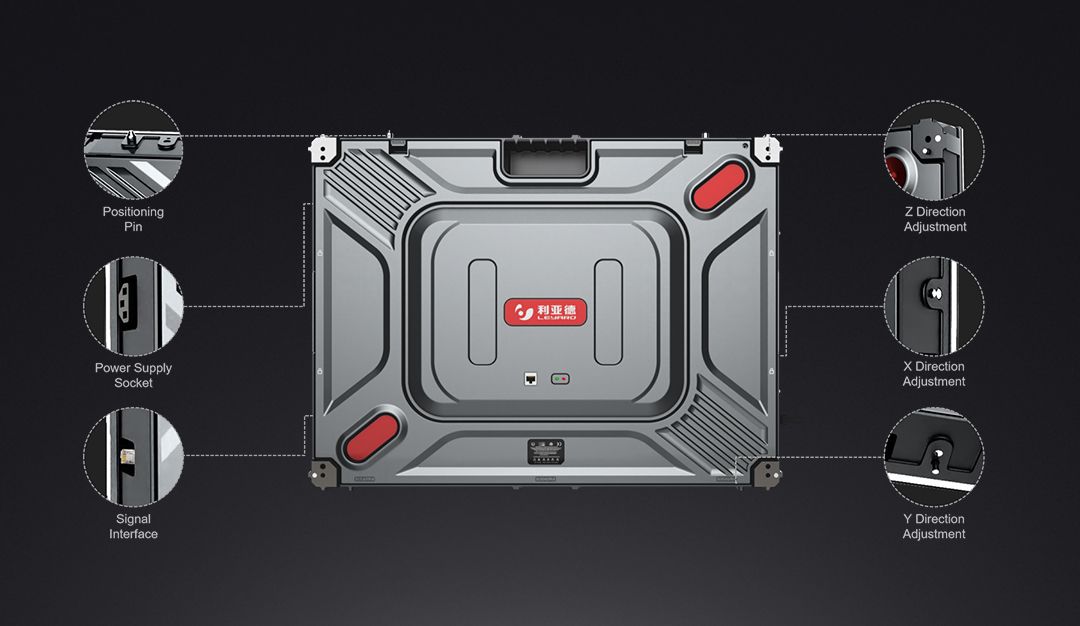

Structure Design

Perfect, easy alignment of displays in all axes for a homogeneous, flat appearance of the video wall; Highly precisely manufactured die-cast aluminium housing.

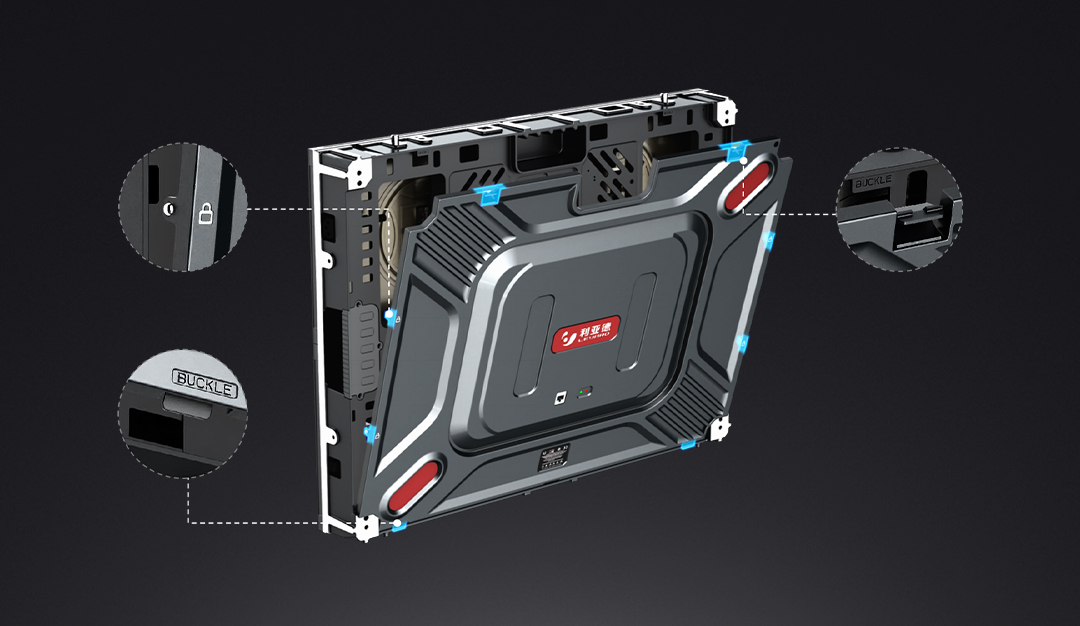

Back Cover Fixed to Cabinet Frame Without Screws

Slot at the bottom, glass beads in left and right, and elastic pin on the top to help fasten the rear cover of the cabinet.

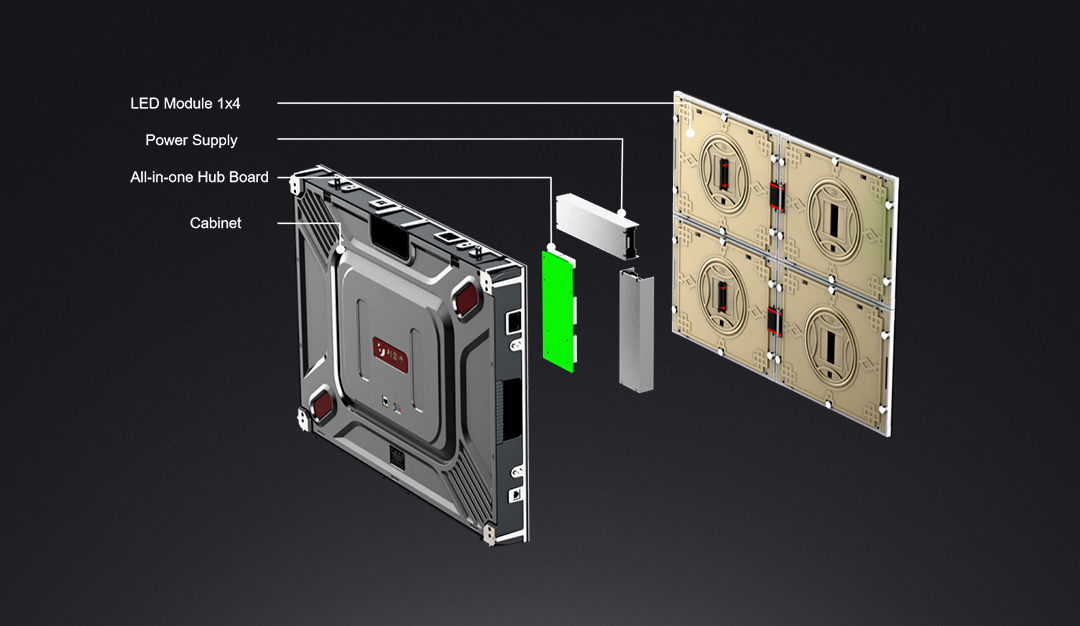

Rational Explosive View

The product has the signal loop backup and dual power supply backup function (power supply input AC100~240V(50-60Hz) to protect the signal transmission integrity. The distance between the power and data sockets is more than 300mm, which makes signal transmission more stable and reliable. The module and the driver board are connected by multi-pin connectors, which embedded the check function to make the connection more stable.

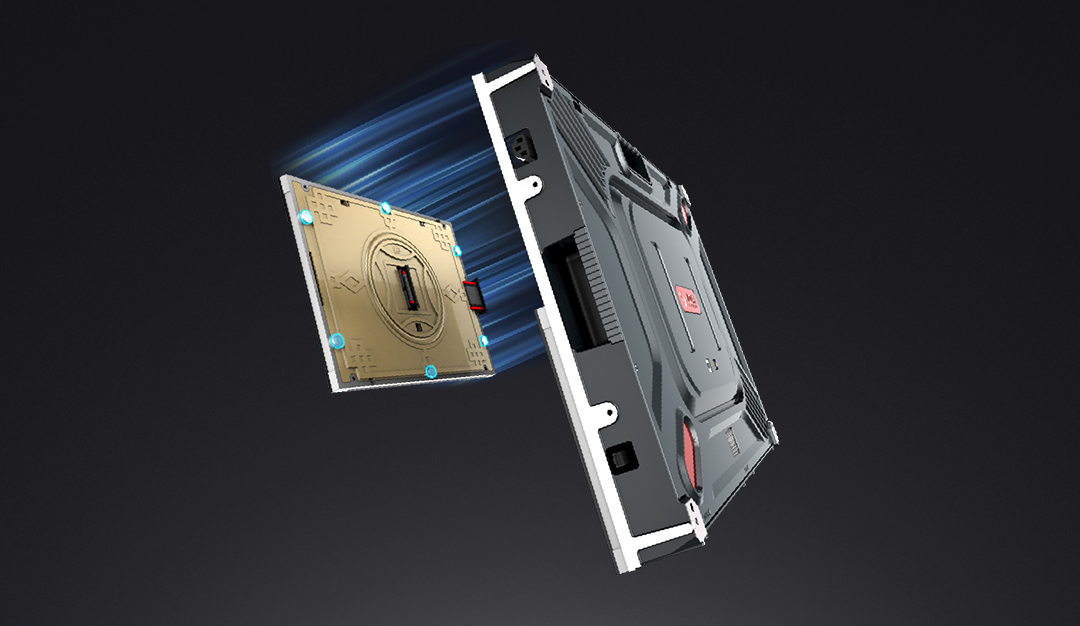

Strong Magnetic Force

There are 6 magnetic points of each module to provide strong magnetic force to connect module and cabinets.

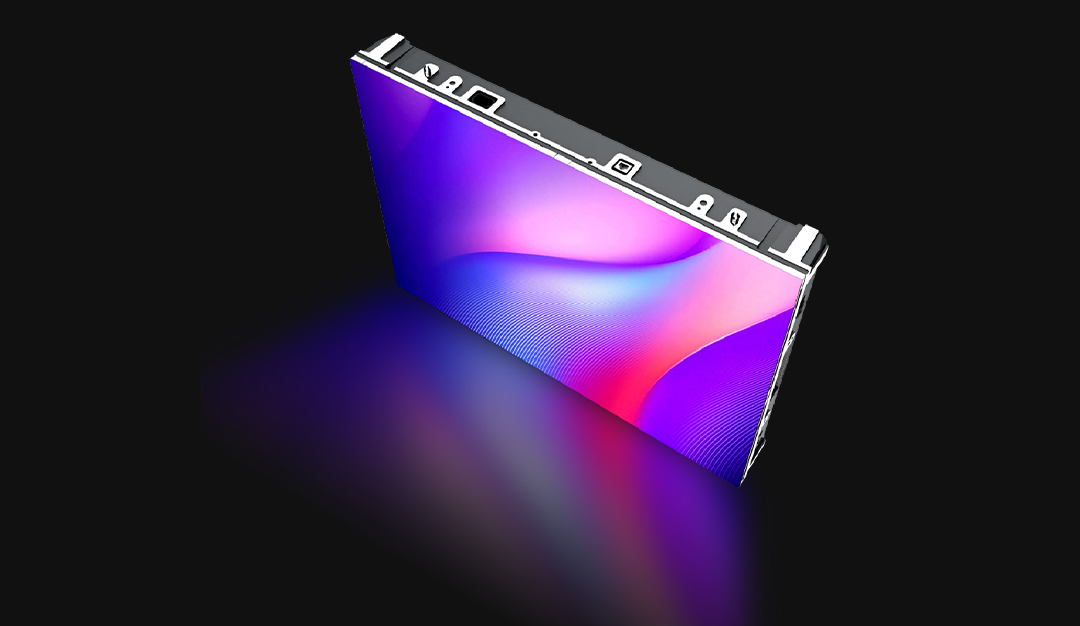

Ultra-High Contrast Ratio

5000:1 ultra-high contrast ratio, support HDR，16bit+9bit processing mode, display more dynamic range and image details.

Excellent Performance

High Contrast Ratio 5000:1
High Grayscale 16Bit
High Refresh Rates 3840Hz

Solution

VHC is the cabinet equipped with VHD modules, which has the dual-power supply and dual signal backup. It is the full front access panel. The product has the edge cut to support seamless right-angle installation.

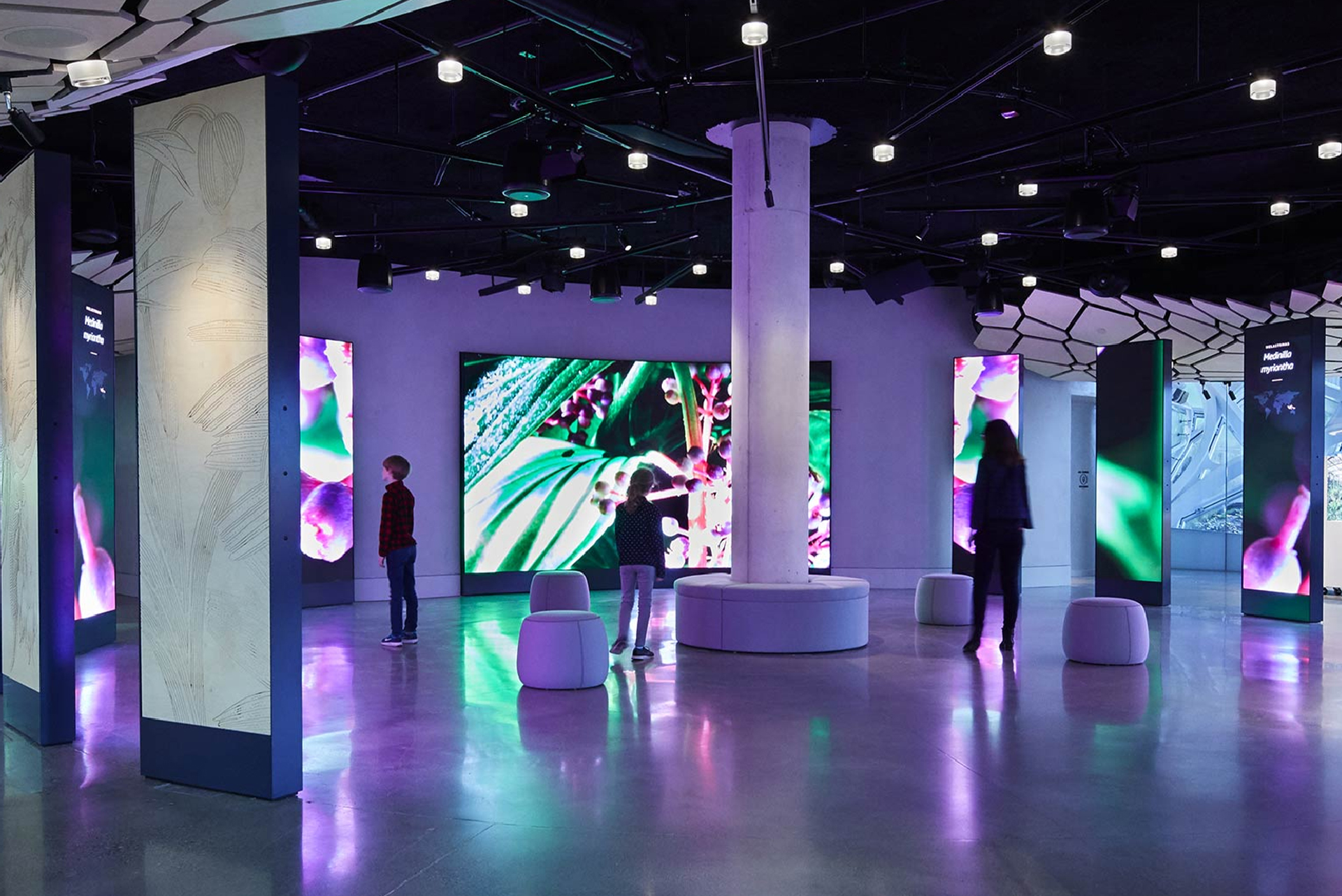

Application

Conference Centre

Control Centre

Broadcast

Meeting Room

Exhibition Centre

Home Cinema

Specifications

VHC32F012

VHC32F015

VHC32F018

VHC32F020

VHC32F025

VHC32F030

VHC32F040

Item
Pixel Configuration
Pitch (mm)
Module Composition (WxH)
Cabinet Resolution (WxH)
Cabinet Size (mm)(WxHxD)
Unit Area (㎡)
Pixel Density (pixel/㎡)
Color Temperature (K)
Viewing Angle (H/V)°
Power Consumption Max./Avg. (W/㎡)
Power Supply
Refresh Rate (Hz)
Operation Temperature (℃)
Operation/Storage Humidity (RH)

                                                                                VHC32F012

                                                                                SMD

                                                                                1.25

                                                                                2×2

                                                                                512x384

                                                                                640x480x72

                                                                                0.3072

                                                                                640000

                                                                                3000—10000 Adjustable

                                                                                160/140

                                                                                580/255

                                                                                AC100~240V (50/60Hz)

                                                                                3840

                                                                                -20 ~ 40

                                                                                10~80% / 10~85% no condensation

                                                                                VHC32F015

                                                                                SMD

                                                                                1.59

                                                                                2×2

                                                                                402x302

                                                                                640x480x72

                                                                                0.3072

                                                                                394384

                                                                                3000—10000 Adjustable

                                                                                160/140

                                                                                530/225

                                                                                AC100~240V (50/60Hz)

                                                                                3840

                                                                                -20 ~ 40

                                                                                10~80% / 10~85% no condensation

                                                                                VHC32F018

                                                                                SMD

                                                                                1.88

                                                                                2×2

                                                                                340x256

                                                                                640x480x72

                                                                                0.3072

                                                                                283333

                                                                                3000—10000 Adjustable

                                                                                160/140

                                                                                510/205

                                                                                AC100~240V (50/60Hz)

                                                                                3840

                                                                                -20 ~ 40

                                                                                10~80% / 10~85% no condensation

                                                                                VHC32F020

                                                                                SMD

                                                                                2.0

                                                                                2×2

                                                                                320x240

                                                                                640x480x72

                                                                                0.3072

                                                                                250000

                                                                                3000—10000 Adjustable

                                                                                160/140

                                                                                480/195

                                                                                AC100~240V (50/60Hz)

                                                                                3840

                                                                                -20 ~ 40

                                                                                10~80% / 10~85% no condensation

                                                                                VHC32F025

                                                                                SMD

                                                                                2.5

                                                                                2×2

                                                                                256x192

                                                                                640x480x72

                                                                                0.3072

                                                                                160000

                                                                                3000—10000 Adjustable

                                                                                160/140

                                                                                460/180

                                                                                AC100~240V (50/60Hz)

                                                                                3840

                                                                                -20 ~ 40

                                                                                10~80% / 10~85% no condensation

                                                                                VHC32F030

                                                                                SMD

                                                                                3.076

                                                                                2×2

                                                                                208x156

                                                                                640x480x72

                                                                                0.3072

                                                                                105625

                                                                                3000—10000 Adjustable

                                                                                160/140

                                                                                450/170

                                                                                AC100~240V (50/60Hz)

                                                                                3840

                                                                                -20 ~ 40

                                                                                10~80% / 10~85% no condensation

                                                                                VHC32F040

                                                                                SMD

                                                                                4.0

                                                                                2×2

                                                                                160x120

                                                                                640x480x72

                                                                                0.3072

                                                                                62500

                                                                                3000—10000 Adjustable

                                                                                160/140

                                                                                430/155

                                                                                AC100~240V (50/60Hz)

                                                                                3840

                                                                                -20 ~ 40

                                                                                10~80% / 10~85% no condensation

Remark: Above data is subject to change without prior notice
