Full Flip Chip COB

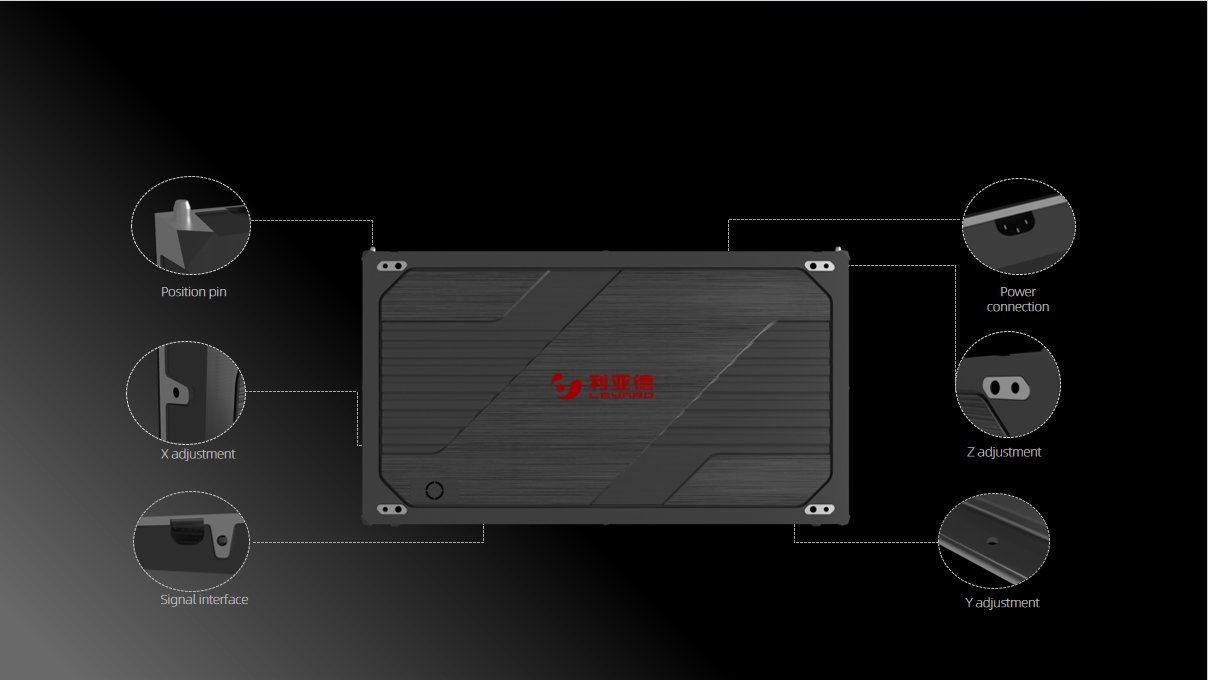

Full-front maintenance
Front and rear installation
Wide Viewing Angle
Ultra high contrast ratio
3 in 1 Design with Integrated Control
The Leyard VCS Series is a COB fine-pitch LED display with RGB flip-chip and wire-free packaging. Features 4H hardness, IP54 rating, integrated control/power system, and front-maintenance design for easy installation. The VCS Series is to provide a state-of-the-art visualization solution. The display is designed to achieve huge viewing angles and high contrast ratios. All this while maintaining a very high power efficiency ratio.
Item
Pixel Configuration
Pitch (mm)
Module Size (mm)
Cabinet Resolution
Cabinet Dimension (WxHxD, mm)
Pixel Density (pixel/㎡)
Viewing Angle (H/V) (°)
Refresh Rate(Hz)
Operation/Storage Temp(℃)
Operation/Storage Humidity(RH)
VCS009 C337.5
Full Flip Chip COB
0.93
150x168.75
640*360
600*337.5*39.75
1137777
160; 160
≥3840
-10 ~ 40; -20 ~ 60
10~80%; 10~85%
VCS012 C337.5
Full Flip Chip COB
1.25
150x168.75
480*270
600*337.5*39.75
640000
160; 160
≥3840
-10 ~ 40; -20 ~ 60
10~80%; 10~85%
VCS015 C337.5
Full Flip Chip COB
1.5625
150x168.75
384*216
600*337.5*39.75
409600
160; 160
≥3840
-10 ~ 40; -20 ~ 60
10~80%; 10~85%
VCS018 C337.5
Full Flip Chip COB
1.875
150x168.75
320*180
600*337.5*39.75
284444
160; 160
≥3840
-10 ~ 40; -20 ~ 60
10~80%; 10~85%
