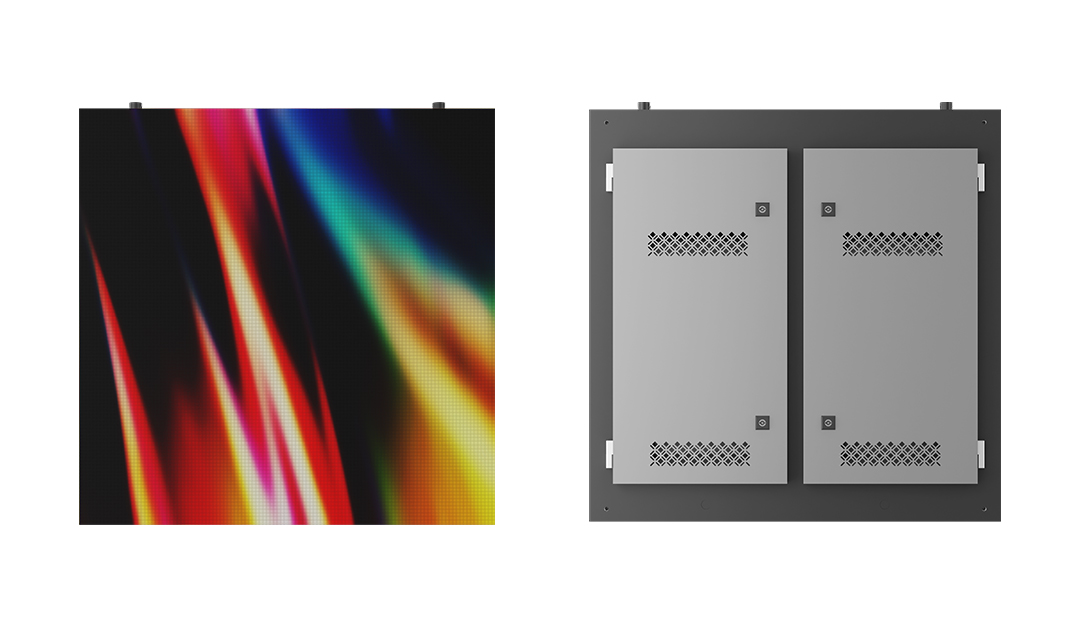

CV-18 Series Outdoor Fixed LED Display Cabinet Integrated & Die-casting

CLASSIC COST-EFFECTIVE OUTDOOR FIXED LED SOLUTION

Create the perfect outdoor viewing experience with the CV18 Outdoor LED Cabinet. CV18 series offers remarkable high resolution, vivid colors, and maximum brightness for unparalleled clarity in any outdoor environment. The cabinet is designed to withstand all weather conditions and keep your visuals looking their best. Enjoy stunning visuals with CV18 outdoor LED Cabinets.

KEY FEATURES

> Fast installation mechanism

> Convenient rear maintenance

> High-precision structure durable and reliable

Message

Product Highlights

Cost-effective

It is made of iron sheet metal, easy to design the cabinet structure, and comes with high waterproof performance, and strong and durable features, CV18 provides a classic and cost-effective outdoor fixed LED display solution.

Customizable & Flexible

The shape and size of the cabinet are flexible and can be customized. The sheet metal cabinet makes it suitable for any LED display modules with different pixel pitches.

Solution

CV18 series with wide viewing angles offer enhanced visibility, ensuring clear and consistent images can be seen from various directions, maximizing audience reach and engagement. CV18 series LED display cabinets allow for tailored solutions to fit specific architectural designs, optimizing space usage and enhancing aesthetic integration in diverse environments.

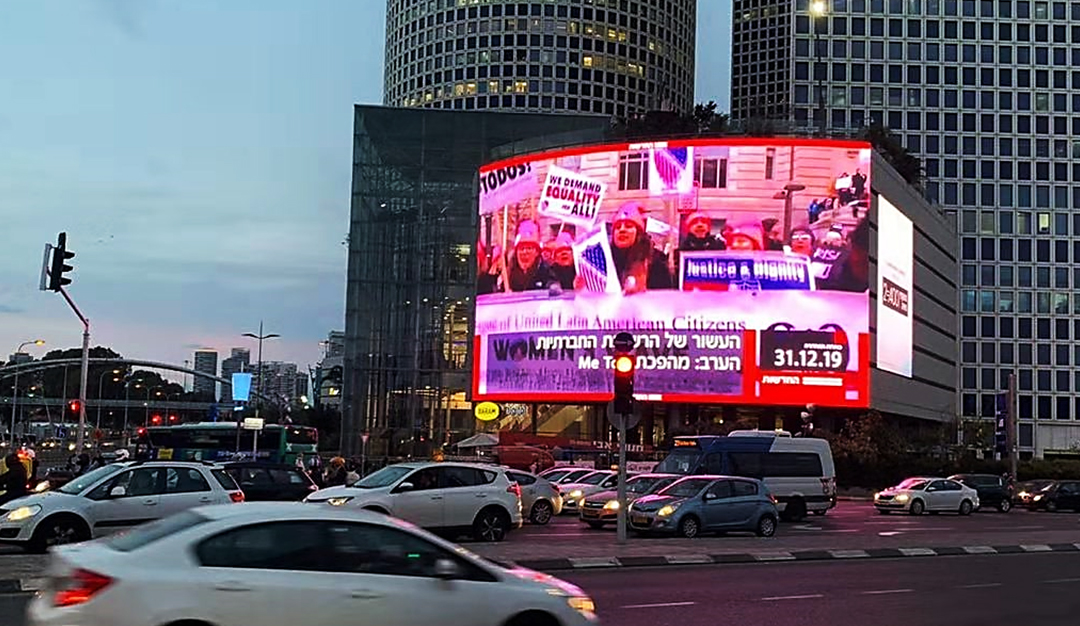

Application

Commercial Street

Shopping Mall

Office Building

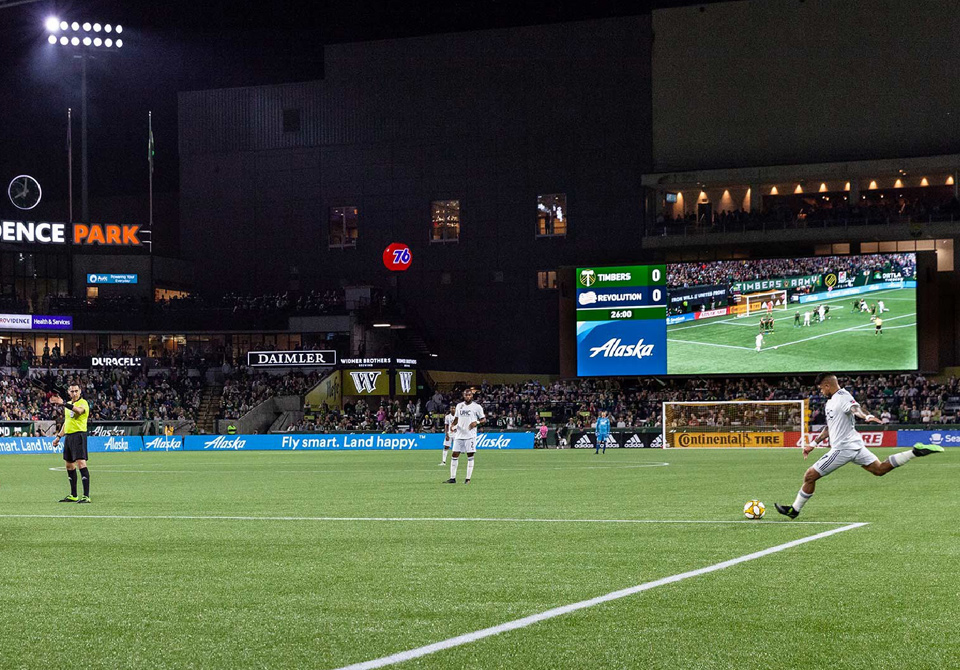

Sports Events

Train Station

Pedestrian Street

Subway Station

Central Park

Specifications

CV3S-18

CV4S-18

CV5S-18

CV6S-18

CV8S-18

CV10S-18

Item
Pixel Configuration
Pixel Pitch
Module Resolution (WxH）
Module Composition (WxH)
Cabinet Size (mm)(WxHxD)
Unit Area (㎡)
Cabinet Weight (kg/㎡)
Color Temperature (K)
Brightness (nits)
Viewing angle (horiz ; vert) °
Power (max; avg)W/㎡
Operation/Storage Temp (℃)
Operating/Storage Humidity (RH)

                                                                                CV3S-18

                                                                                SMD

                                                                                3

                                                                                104x52

                                                                                3x6

                                                                                960x960x136.3

                                                                                0.9216

                                                                                51

                                                                                3000-15000 Adjustable

                                                                                ≥4000

                                                                                160; 140

                                                                                712; 237

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                CV4S-18

                                                                                SMD

                                                                                4

                                                                                80x40

                                                                                3x6

                                                                                960x960x136.4

                                                                                0.9216

                                                                                51

                                                                                3000-15000 Adjustable

                                                                                4500~5000

                                                                                160; 140

                                                                                861; 287

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                CV5S-18

                                                                                SMD

                                                                                5

                                                                                64x32

                                                                                3x6

                                                                                960x960x137.2

                                                                                0.9216

                                                                                51

                                                                                3000-15000 Adjustable

                                                                                5000~6000

                                                                                160; 140

                                                                                750; 250

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                CV6S-18

                                                                                SMD

                                                                                5.9

                                                                                54x27

                                                                                3x6

                                                                                960x960x137

                                                                                0.9216

                                                                                51

                                                                                3000-15000 Adjustable

                                                                                ≥4500

                                                                                160; 140

                                                                                694; 231

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                CV6S-18

                                                                                SMD

                                                                                6

                                                                                32x32

                                                                                5x5

                                                                                960x960x137.4

                                                                                0.9216

                                                                                51

                                                                                3000-15000 Adjustable

                                                                                ≥4500

                                                                                160; 140

                                                                                768; 256

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                CV8S-18

                                                                                SMD

                                                                                8

                                                                                40x20

                                                                                3x6

                                                                                960x960x137.3

                                                                                0.9216

                                                                                51

                                                                                3000-15000 Adjustable

                                                                                ≥4500

                                                                                160; 140

                                                                                ≤809; ≤270

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                CV10S-18

                                                                                SMD

                                                                                10

                                                                                32x16

                                                                                3x6

                                                                                960x960x138.4

                                                                                0.9216

                                                                                51

                                                                                3000-15000 Adjustable

                                                                                5000~6000

                                                                                160; 140

                                                                                800; 265

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

Remark: Above data is subject to change without prior notice
