NHV Series Outdoor LED Display Solutions With IP67 Waterproof

NEW GENERATION OF OUTDOOR LED

HIGHLIGHT FEATURES

Right-angle and convex solution ready.
The modules are connected in star link instead of daisy chain to avoid the inline failure.
Single cable connection for both power and data to simply the cabling. The waterproof airplug to the control/power backpack provides the stable connection.
The module and control/power box are independent to each other, to improve the uniformity and eliminate the heat infuence.

Message

Product Highlights

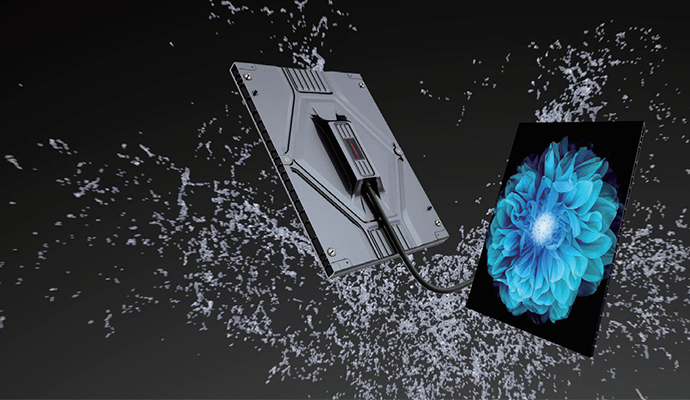

IP67 Waterproof Grade

HDR High Dynamic

> 7500nit White Balance Brightness Up to.
> 3000~10000K Color Temperature Adjustable Color Realistic.

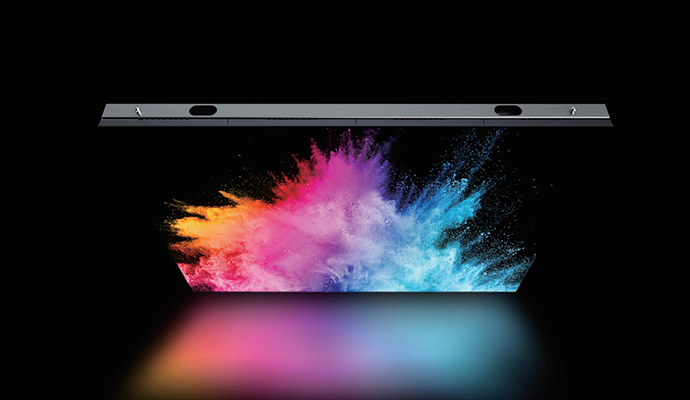

Ultra-clear Picture Quality

7500nits high brightness intelligent module design, support HDR, 16bit + 9bit processing mode, display more dynamic range and image details

7680Hz High Refresh Rate

> The image is very stable under the cameras of the mobile phones.
> Barcode is readable by the mobile phones to enable a more efficient interactive advertisement.

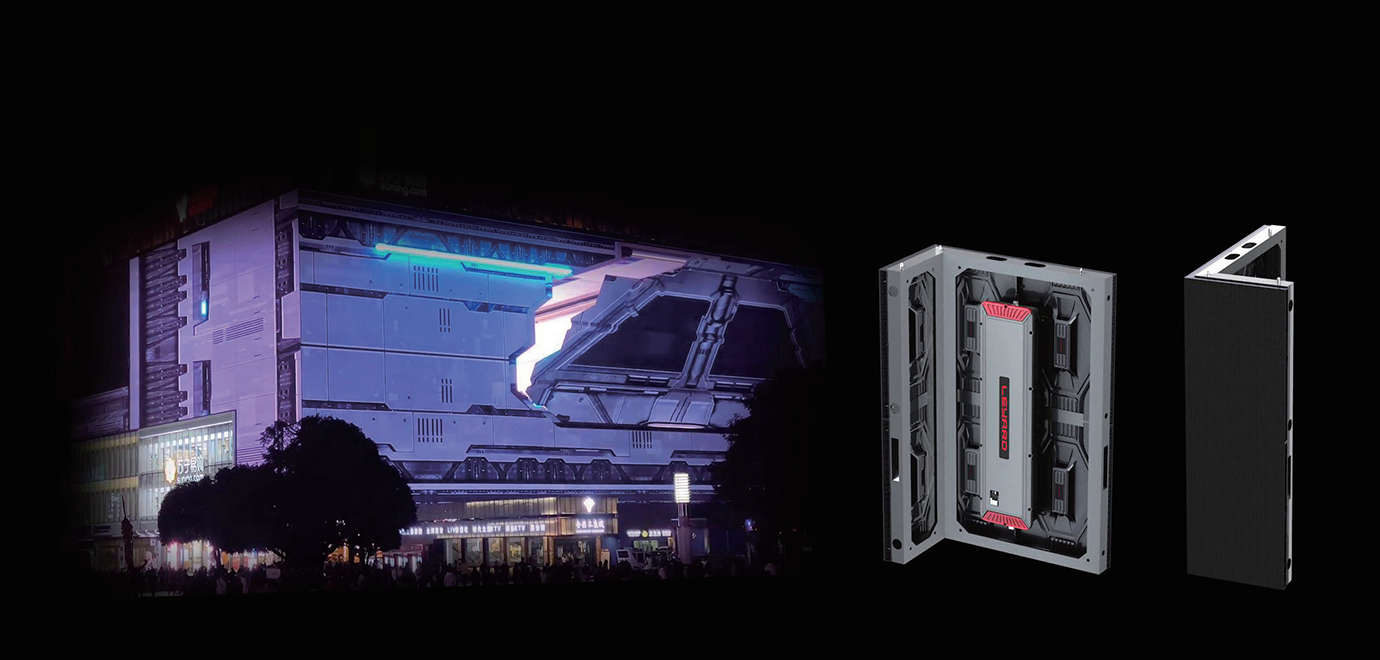

45 Degree Beveled Edge Design

Can be spliced into right angles or curved shapes.

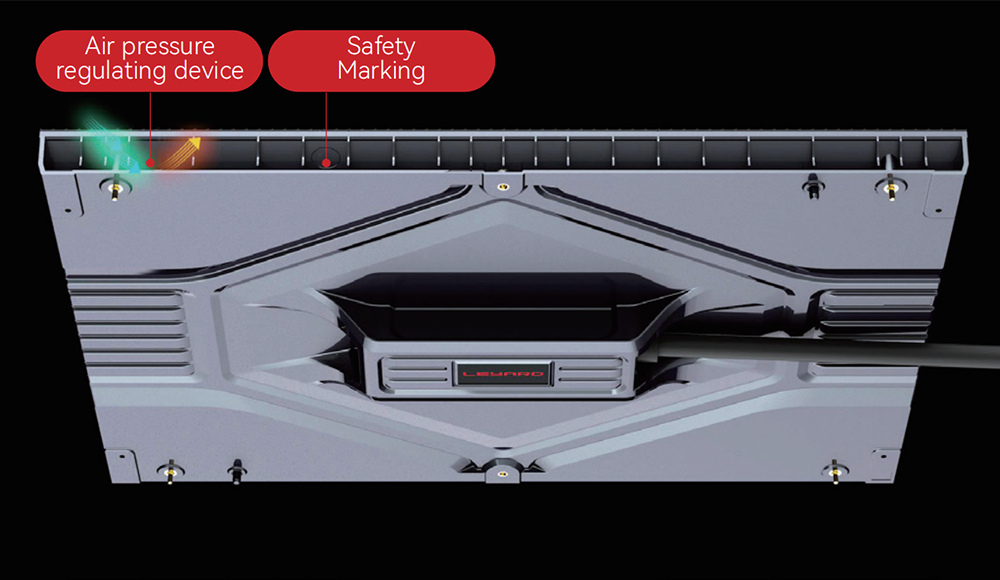

Waterproof Air Pressure Adjustable Device

Waterproof breathing valve can ensure that the gas can go in and out freely, while water molecules will not enter, and it is safe to use in rainy and wet conditions.

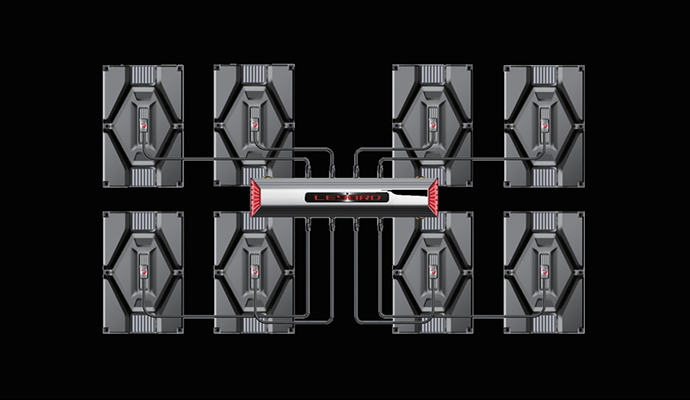

Star Type Connection Method

The LED module adopts star connection, independent waterproof module and independent control combination. Integrated power and signal combination "star" connection. Independent units work separately, thermal insulation to avoid mutual interference.

Solution

Leyard NHV series is a new generation of outdoor LED cabinet with waterproof modules. The module and control/power box are independent to each other, to improve the uniformity and eliminate the heat infuence. Due to its independent structural design, the NHV series can be equipped with simple easy LED display cabinet to achieve splicing of diferent sizes. With a 45° beveled edge, it can meet the needs of special-shaped splicing displays.

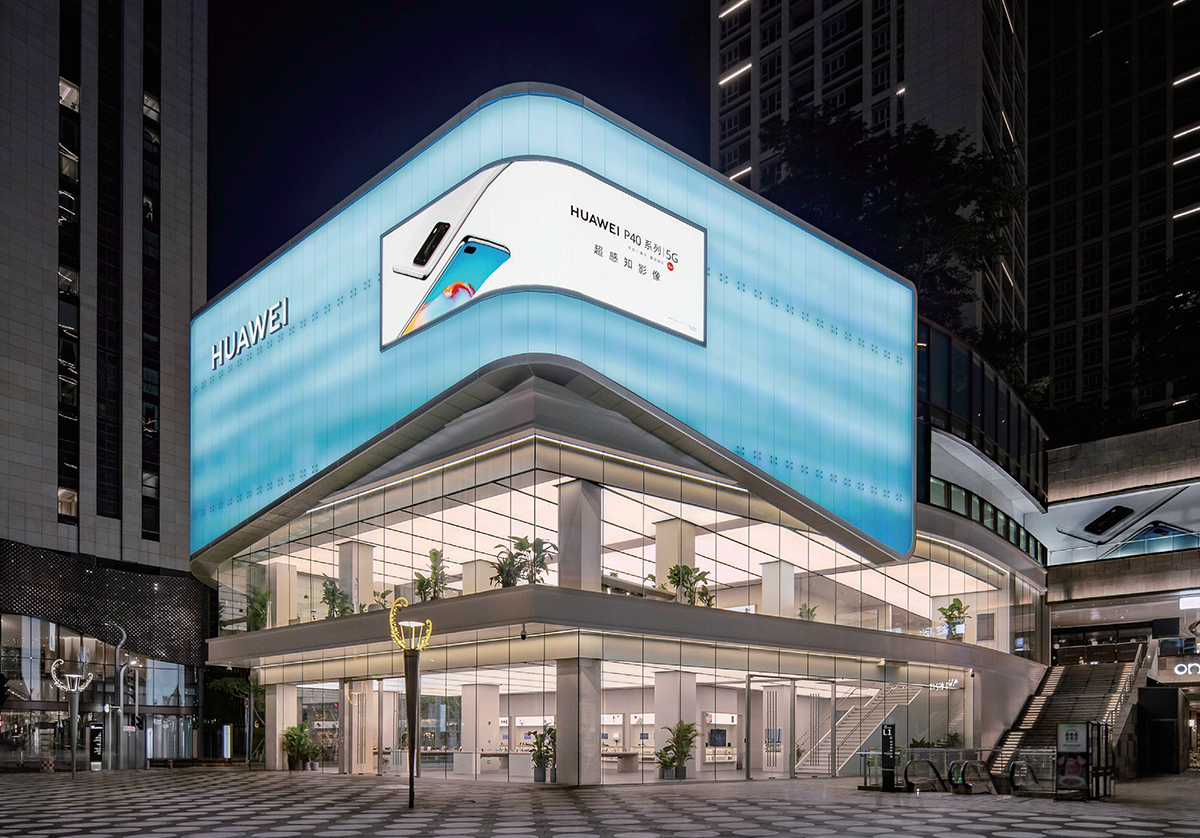

Application

Commercial Street
Shopping Mall
Office Building
Sports Events
Train Station
Pedestrian Street
Subway Station
Central Park

Specifications

NHV3

NHV4

NHV6

NHV8

NHV10

NHV3H

NHV4H

NHV6H

NHV8H

NHV10H

Item
LED Configuration
Pixel Pitch
Cabinet Dimension
Brightness (nits)
Refresh Rate
Cabinet Resolution (WxH)
IP Level
Viewing Angle (horiz; vert) °
Scanning Mode
Cabinet Weight (kg/㎡)
Color Temperature (K)
Lifetime (hrs)
Operating/Storage Temp (℃)
Operating/Storage Humidity (RH)
Power Consumption(max; avg)/㎡

                                                                                NHV3

                                                                                SMD

                                                                                3.3

                                                                                1280x960x75

                                                                                4000~4500

                                                                                3840

                                                                                384x288

                                                                                IP67

                                                                                150; 150

                                                                                12s

                                                                                26

                                                                                3000—10000 Adjustable

                                                                                100,000

                                                                                -30 ~ 50; -40 ~ 60

                                                                                10~80%; 10~85%

                                                                                720W; 295W

                                                                                NHV4

                                                                                SMD

                                                                                4

                                                                                1280x960x75

                                                                                4500~5000

                                                                                3840

                                                                                320x240

                                                                                IP67

                                                                                150; 150

                                                                                10s

                                                                                26

                                                                                3000—10000 Adjustable

                                                                                100,000

                                                                                -30 ~ 50; -40 ~ 60

                                                                                10~80%; 10~85%

                                                                                720W; 285W

                                                                                NHV6

                                                                                SMD

                                                                                6.6

                                                                                1280x960x75

                                                                                4500~5000

                                                                                3840

                                                                                192x144

                                                                                IP67

                                                                                150; 150

                                                                                6s

                                                                                26

                                                                                3000—10000 Adjustable

                                                                                100,000

                                                                                -30 ~ 50; -40 ~ 60

                                                                                10~80%; 10~85%

                                                                                720W; 265W

                                                                                NHV8

                                                                                SMD

                                                                                8

                                                                                1280x960x75

                                                                                4500~5000

                                                                                3840

                                                                                160x120

                                                                                IP67

                                                                                150; 150

                                                                                4s

                                                                                26

                                                                                3000—10000 Adjustable

                                                                                100,000

                                                                                -30 ~ 50; -40 ~ 60

                                                                                10~80%; 10~85%

                                                                                720W; 255W

                                                                                NHV10

                                                                                SMD

                                                                                10

                                                                                1280x960x75

                                                                                4500~5000

                                                                                3840

                                                                                128x96

                                                                                IP67

                                                                                150; 150

                                                                                2s

                                                                                26

                                                                                3000—10000 Adjustable

                                                                                100,000

                                                                                -30 ~ 50; -40 ~ 60

                                                                                10~80%; 10~85%

                                                                                720W; 240W

                                                                                NHV3H

                                                                                SMD

                                                                                3.3

                                                                                1280x960x75

                                                                                5000~6000

                                                                                3840

                                                                                384x288

                                                                                IP67

                                                                                150; 150

                                                                                12s

                                                                                26

                                                                                3000—10000 Adjustable

                                                                                100,000

                                                                                -30 ~ 50; -40 ~ 60

                                                                                10~80%; 10~85%

                                                                                720W; 295W

                                                                                NHV4H

                                                                                SMD

                                                                                4

                                                                                1280x960x75

                                                                                6000~7500

                                                                                3840

                                                                                320x240

                                                                                IP67

                                                                                150; 150

                                                                                10s

                                                                                26

                                                                                3000—10000 Adjustable

                                                                                100,000

                                                                                -30 ~ 50; -40 ~ 60

                                                                                10~80%; 10~85%

                                                                                720W; 285W

                                                                                NHV6H

                                                                                SMD

                                                                                6.6

                                                                                1280x960x75

                                                                                6500~10000

                                                                                3840

                                                                                192x144

                                                                                IP67

                                                                                150; 150

                                                                                6s

                                                                                26

                                                                                3000—10000 Adjustable

                                                                                100,000

                                                                                -30 ~ 50; -40 ~ 60

                                                                                10~80%; 10~85%

                                                                                720W; 265W

                                                                                NHV8H

                                                                                SMD

                                                                                8

                                                                                1280x960x75

                                                                                6500~10000

                                                                                3840

                                                                                160x120

                                                                                IP67

                                                                                150; 150

                                                                                4s

                                                                                26

                                                                                3000—10000 Adjustable

                                                                                100,000

                                                                                -30 ~ 50; -40 ~ 60

                                                                                10~80%; 10~85%

                                                                                720W; 255W

                                                                                NHV10H

                                                                                SMD

                                                                                10

                                                                                1280x960x75

                                                                                6500~10000

                                                                                3840

                                                                                128x96

                                                                                IP67

                                                                                150; 150

                                                                                2s

                                                                                26

                                                                                3000—10000 Adjustable

                                                                                100,000

                                                                                -30 ~ 50; -40 ~ 60

                                                                                10~80%; 10~85%

                                                                                720W; 240W

Remark: Above data is subject to change without prior notice
