VHR_VP Series-Fine Pitch Rental LED Display for Virtual Production

FINE PITCH RENTAL LED DISPLAY FOR VIRTUAL PRODUCTION

Virtual Production is a broad term for the merging of computer aided processes with traditional film or broadcast workflows and visualization. One of the main benefits of the virtual production is the added flexibility and streamlining of the production process over traditional methods.

PRO FEATURES

- 7680Hz Refresh Rate

- 10000:1 Super High Contrast Ratio

- 100000hrs Typical Lifetime Values

- Virtual Shooting XR / VR / AR

- Full Front Disassembly Installation

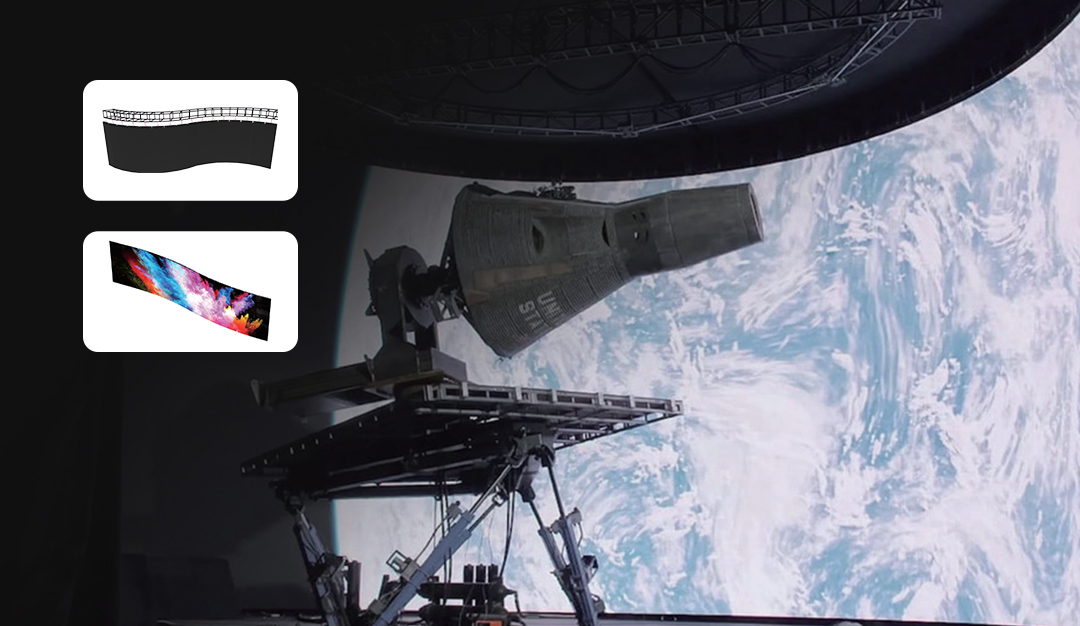

- Curved -10°~10° Optional Installation

- 160° Wide Viewing Angle

- 3000~10000K Adjustable Colour Temperature

- 500x500x63mm Standard Size

Message

Product Highlights

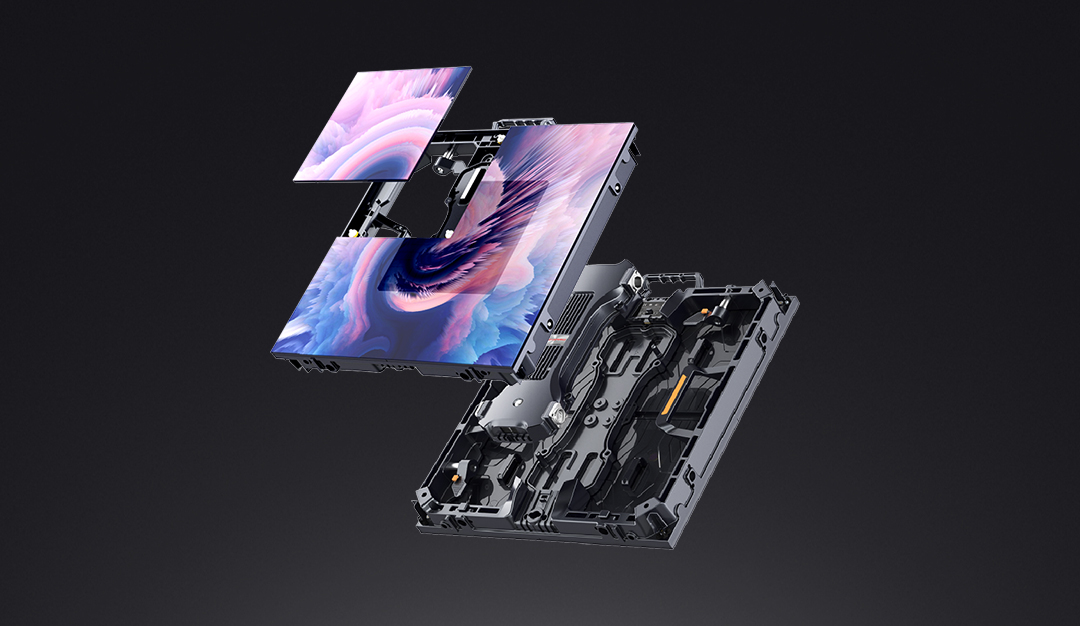

F/R maintenance & Installation

This series supports complete pre/post maintenance of modules, power supplies, and receiving cards, making it easy to operate. The cabinet structure supports front and rear installation. The flatness of adjacent cabinet can be ensured by adjusting the connecting piece for flatness.

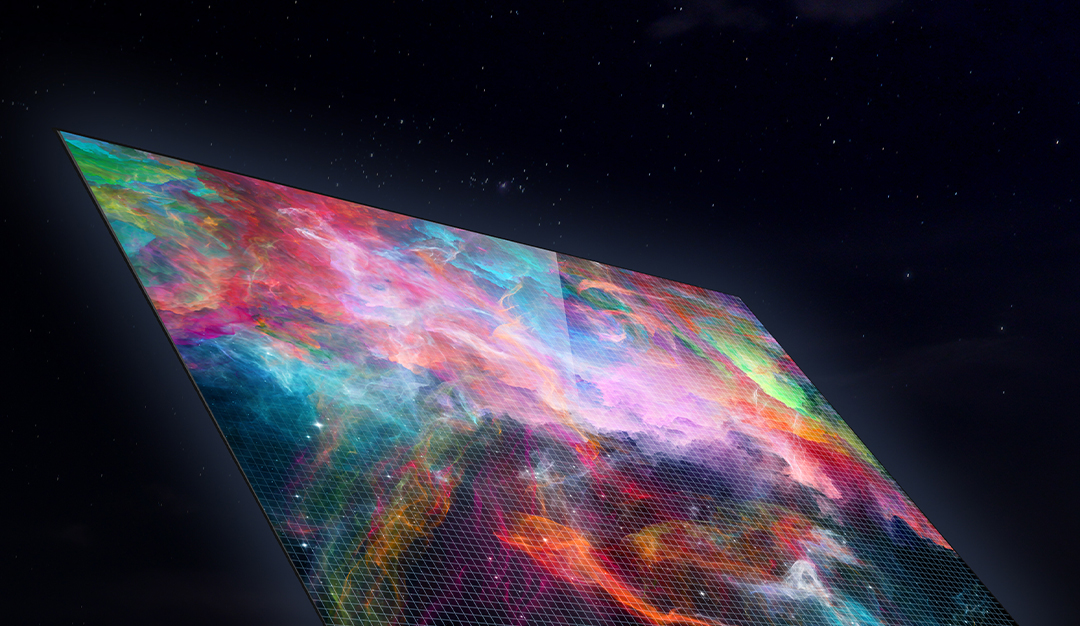

Precision Flatness, Showing Industrial Aesthetics

The case processing error ±0.02mm, the whole body is seamlessly formed by one-piece die-casting, which is durable, wear-resistant, impact-resistant and anti-oxidation. It adopts CNC diamond cutting process and secondary finishing treatment after PCB sealing, the error is ±0.01mm. The front connecting piece of this series is designed to ensure the assembling flatness of ±0.05mm.

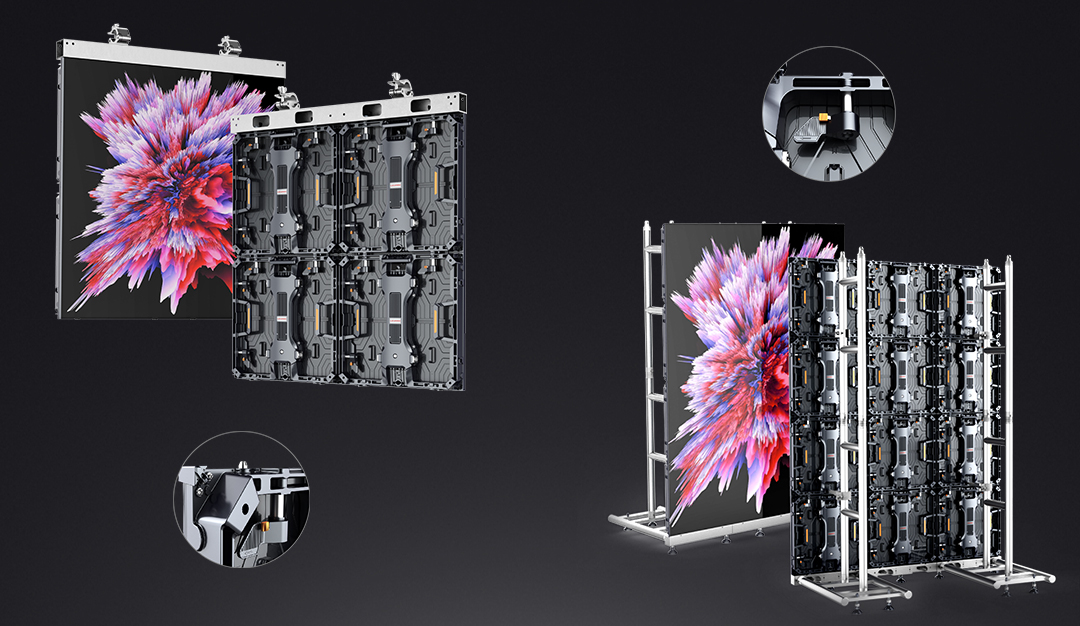

Diagram of Hoisting / Floor Type Installation

It is designed for full front dismantling and assembling. Easy to install and flexible for hanging / stand mounted.

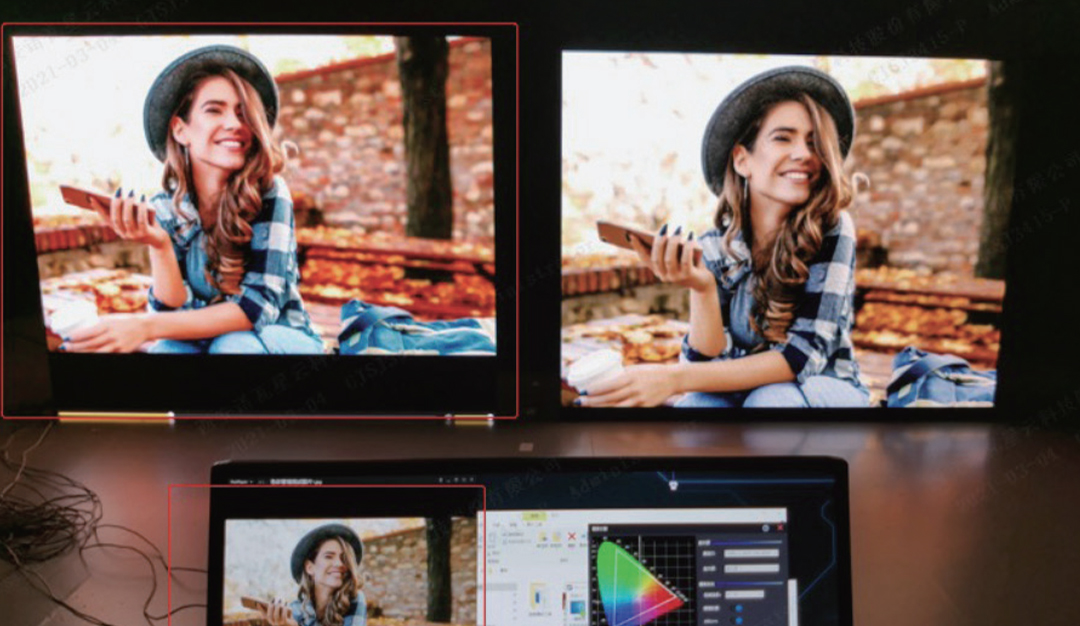

Color Gamut Adjustment

XR is real-time rendering, because there is a need for certain cooperation between the screen and the shooting device. It requires the display screen to meet the color gamut of BT709, DVI-P3, DCI-P3, BT2020, etc. At the same time, XR can customize and adjust the color gamut to fine correct the color deviation, so that the color quality displayed on the LED screen is infinitely close to the real color.

Ultra-High Refresh Rate

Due to the high configuration of XR cameras compared to normal cameras, XR requires the screen to be shot in a low grey state without skew or bright lines to present a better virtual reality fusion extension. To avoid the occurrence of bright lines, the LED screen is required to have low grey and high brush.

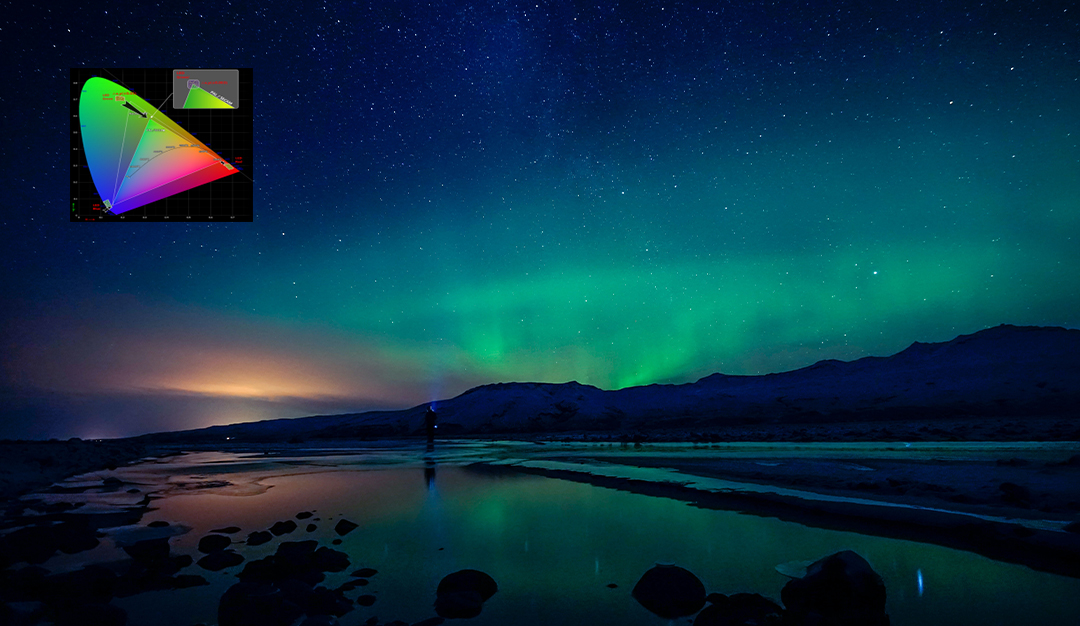

Ultra High Color Depth

In order to have a better visual reproduction presentation, during the shooting process, the higher the display bit depth, the more detailed the color displayed; the more realistic the image; and the more natural the color transition. It is required that the LED screen brightness be greater than 1000 nits and be able to access and process a 10 bit color bit depth input source and present it.

HDR--High Dynamic Range Image

LDR images with the best detail for each exposure time are used to compose the final HDR image. It is able to better reflect the visual effect in the real environment. It has information about the actual brightness of each pixel at that point in addition to the usual RGB information.

16Bit Grey-Scale for Abundant Pictures

Inaccurate control in the grey scale, the control current is not precise enough will lead to distorted images, especially when the circular grey scale diffusion is most obvious. Therefore, the LED screen body is required to control the current accurately when the chip is selected, and the starting grey current is low.

Customizable Overall Solution With 45° Cut Corners

Depending on the type of use, various LED displays might work in the application. Professional LED screen supplier will provide a better quality LED screen, which will achieve high quality visual effects, stable performance, and final on-camera results. With 45° cut corners and flexible module splicing. It can be assembled at right angles or in simple cabinet curves.

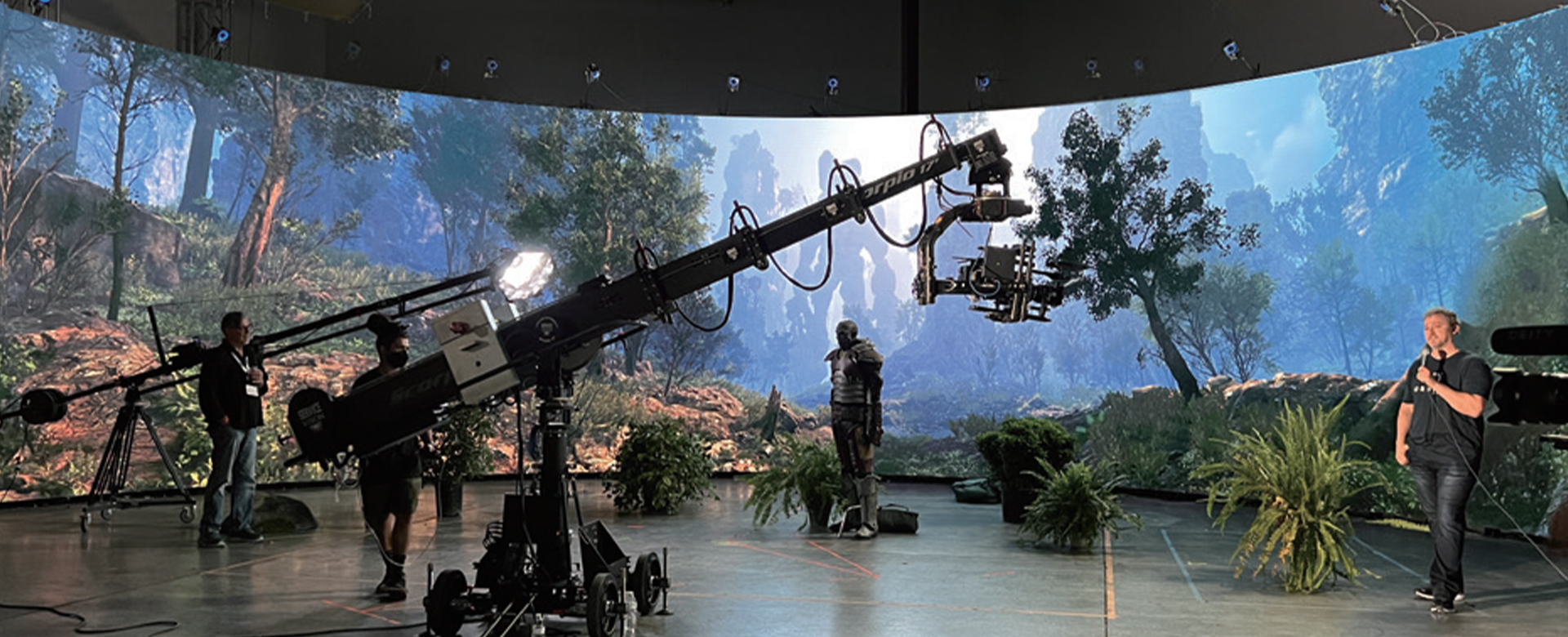

Leyard VHR-VP Series for XR/AR/VR Virtual Photography

LED displays can play a significant role in XR/AR/VR virtual photography by providing immersive and interactive visual experiences. In virtual reality, Leyard VHR-VP LED display can act as a backdrop or environment for the virtual world being created. This allows the photographer and subjects to see and interact with the virtual environment in real-time, enhancing the sense of presence and immersion.

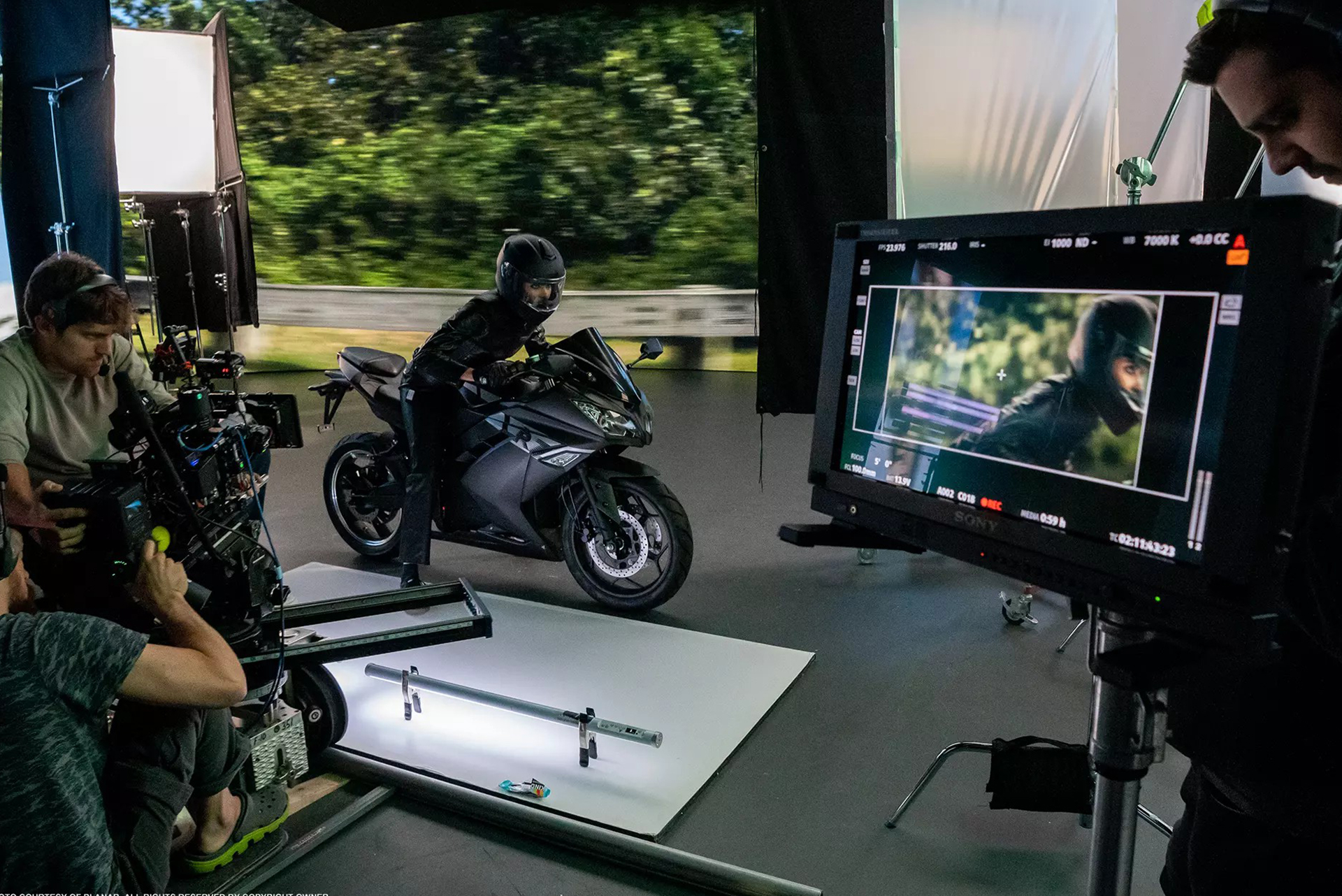

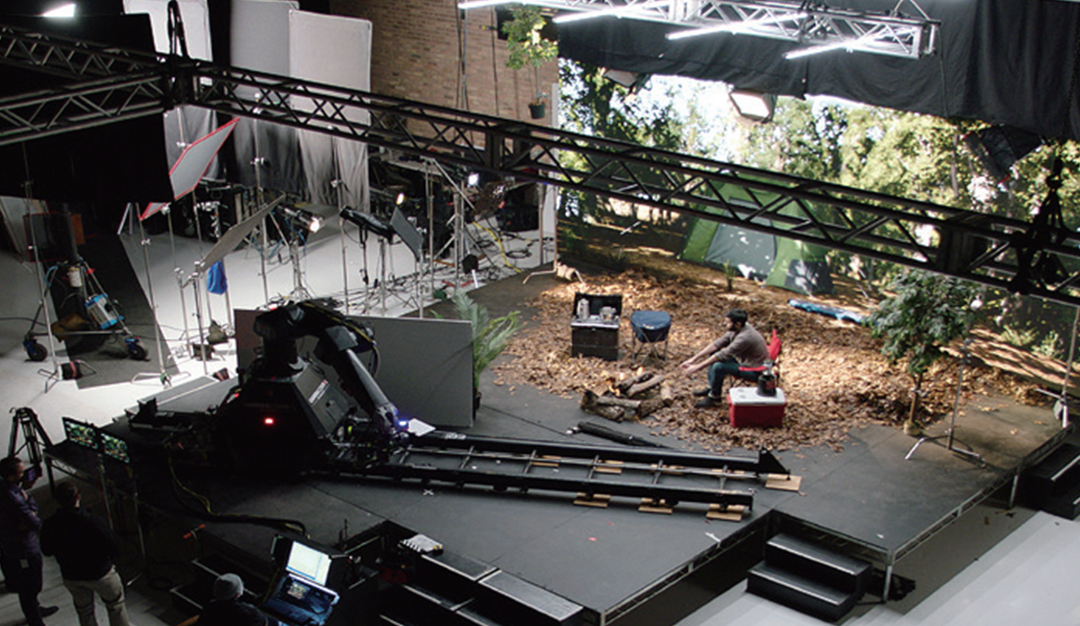

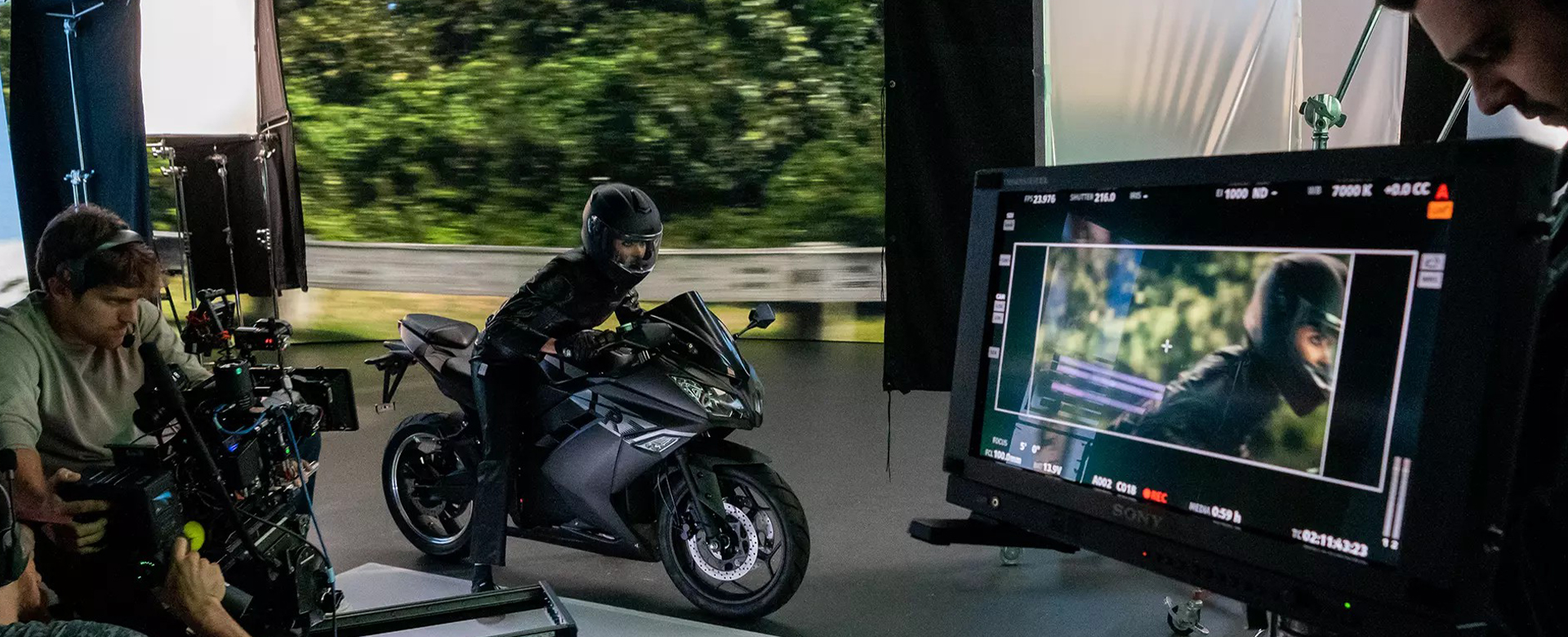

Benefits of In-Camera Production

Utilizing the latest LED display technologies with motion capture sensors and cutting-edge software, Leyard LN series LED display can create immersive environments for real-time exploration of 3D models in the physical space. This dynamic solution brings content to life for a wide range of applications including broadcast studios, visualization of volumetric data for analysis or exploring virtual worlds for collaborative game play.

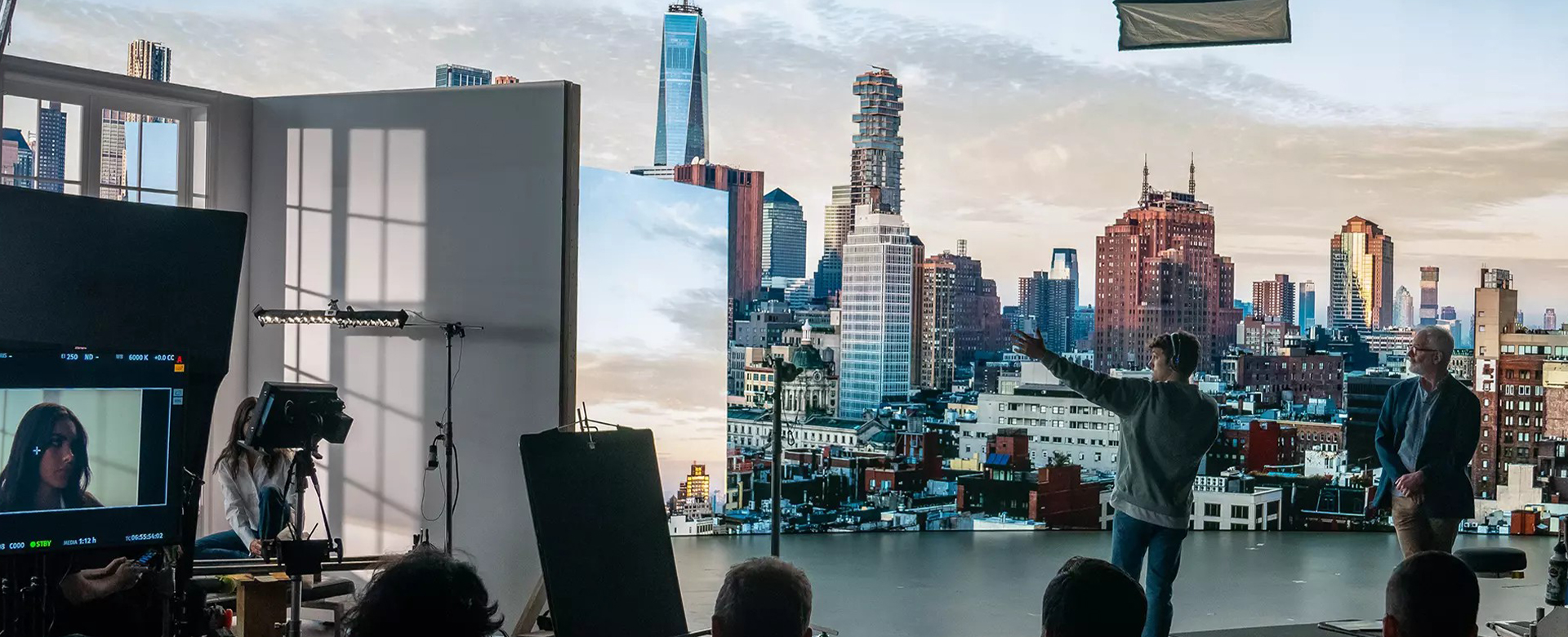

Why Choose LED Screen for Virtual Production?

- Camera shots can be accurately framed as they would in a real setting.
- No green screen contamination.
- Provide natural reflections and lighting.
- Shots are no longer limited by location or time.
- With the addition of camera-tracking and a real-time engine, imagery shifts with appropriate perspective for the camera and shot

Solution

Leyard VHRI-VP series is designed to provide low scan, high brush, high gray scale, and high frame rate products for XR/AR/VR virtual photography. The VHRI-VP series supports grey level enhancement by adjusting parameters such as refresh and frame rate. It meets HDR10 and has a black screen screen saver to save energy. The VHRI-VP series is designed for full front dismantling and assembling, with 45° cut corners and flexible module splicing. It can be assembled at right angles or in simple cabinet curves.

Application

Virtual Production
XR Stages
AR Virtual Photography
Stage Show
Celebrations
Concerts

Specifications

VHRI1.5VP

VHRI1.9VP

VHRI2.3VP

VHRI2.6VP

VHRI2.8VP

Item
Pixel Pitch (mm)
Brightness (nits)
Refresh Rate(Hz)
Max./Avg.Power Consumption(W/㎡)
Viewing Angle (H/V) (°)
Cabinet Dimensions (WxHxD) (mm)
Operational Temp/Humidity
Scanning Mode
Frame Rate (Hz)

                                                                                VHRI1.5VP

                                                                                1.5625

                                                                                1000

                                                                                7680

                                                                                580/265

                                                                                160/160

                                                                                500x500x63

                                                                                -20°~40°C / 10-80% RH

                                                                                10s

                                                                                23.5 to 240

                                                                                VHRI1.9VP

                                                                                1.95

                                                                                1200

                                                                                7680

                                                                                580/265

                                                                                160/160

                                                                                500x500x63

                                                                                -20°~40°C / 10-80% RH

                                                                                8s

                                                                                23.5 to 240

                                                                                VHRI2.3VP

                                                                                2.31

                                                                                1500

                                                                                7680

                                                                                560/235

                                                                                160/160

                                                                                500x500x63

                                                                                -20°~40°C / 10-80% RH

                                                                                8s

                                                                                23.5 to 240

                                                                                VHRI2.6VP

                                                                                2.6

                                                                                1500

                                                                                7680

                                                                                550/220

                                                                                160/160

                                                                                500x500x63

                                                                                -20°~40°C / 10-80% RH

                                                                                10s

                                                                                23.5 to 240

                                                                                VHRI2.8VP

                                                                                2.84

                                                                                1500

                                                                                7680

                                                                                540/225

                                                                                160/160

                                                                                500x500x63

                                                                                -20°~50°C / 10-80% RH

                                                                                8s

                                                                                23.5 to 240

Remark: Above data is subject to change without prior notice
