SV Outdoor Series Full Color Wholesale LED Display Module

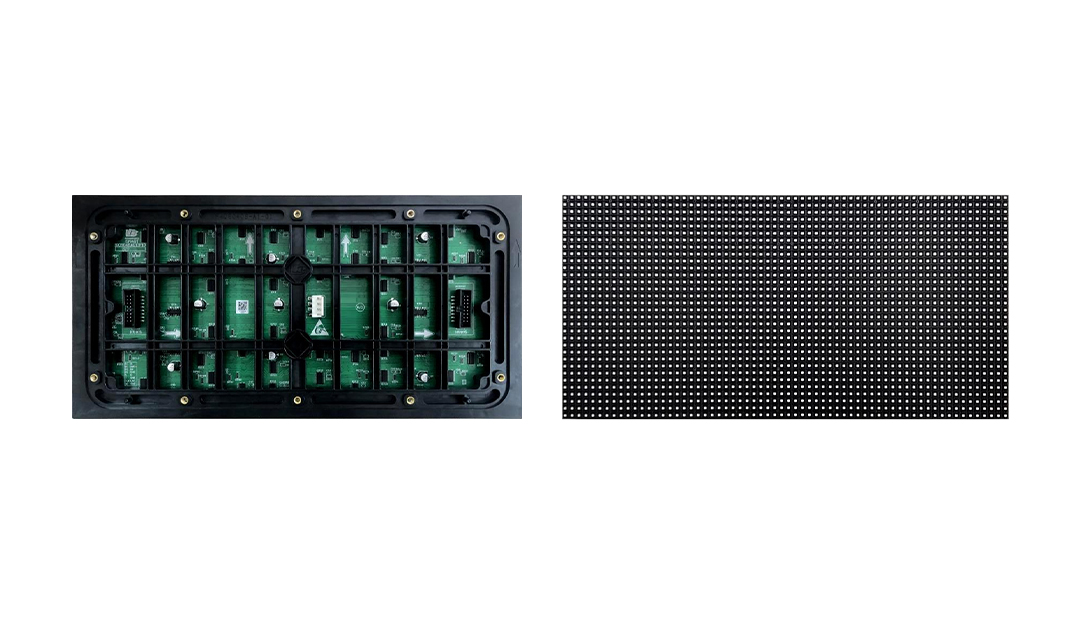

OUTDOOR FULL COLOR WHOLESALE LED DISPLAY MODULE

IC drivers are scattered in the PCB to avoid a higher local heat, thus to improve the overall uniformity;
Leyard self-designed PCB circuit, A-grade PCB material, better reliability and stablity;

KEY FEATURES

Best in class quality assurance program with time-approved material and fine pitch capable production lines.
IC drivers are scattered in the PCB to avoid a higher local heat, thus to improve the overall uniformity.
Using Leyard ODM LED, quality controlled on suppliers'site by Leyard QC.
Leyard self-designed PCB circuit, A-grade PCB material, better reliability and stablity.
Leyard design mask with good contrast ratio and less moire.

Message

Product Highlights

Leyard High-quality ODM LEDs

Using Leyard ODM LED, quality controlled on suppliers'site by Leyard QC; Best in class quality assurance program with time-approved material and fine pitch capable production lines;

Leyard Design Mask Good Contrast Ratio

IC drivers are scattered in the PCB to avoid a higher local heat, thus to improve the overall uniformity; Leyard self-designed PCB circuit, A-grade PCB material, better reliability and stablity; Leyard design mask with good contrast ratio and less moire.

Solution

Vivid digital signage offers a compelling alternative to traditional static solutions by making messages more effective and bringing stories and creative content to life. Ultra-high resolution displays and video walls create digital experiences that are dynamic and memorable, attracting audiences with incredible images. Whether it is advertising or entertainment, sharing information or stimulating brand interaction, the goal of digital signage is to address demographic audiences. Vivid display installations offer a powerful way to reach consumers. Through interactive solutions and digital storytelling, organizations can build deeper and more personal connections.

Application

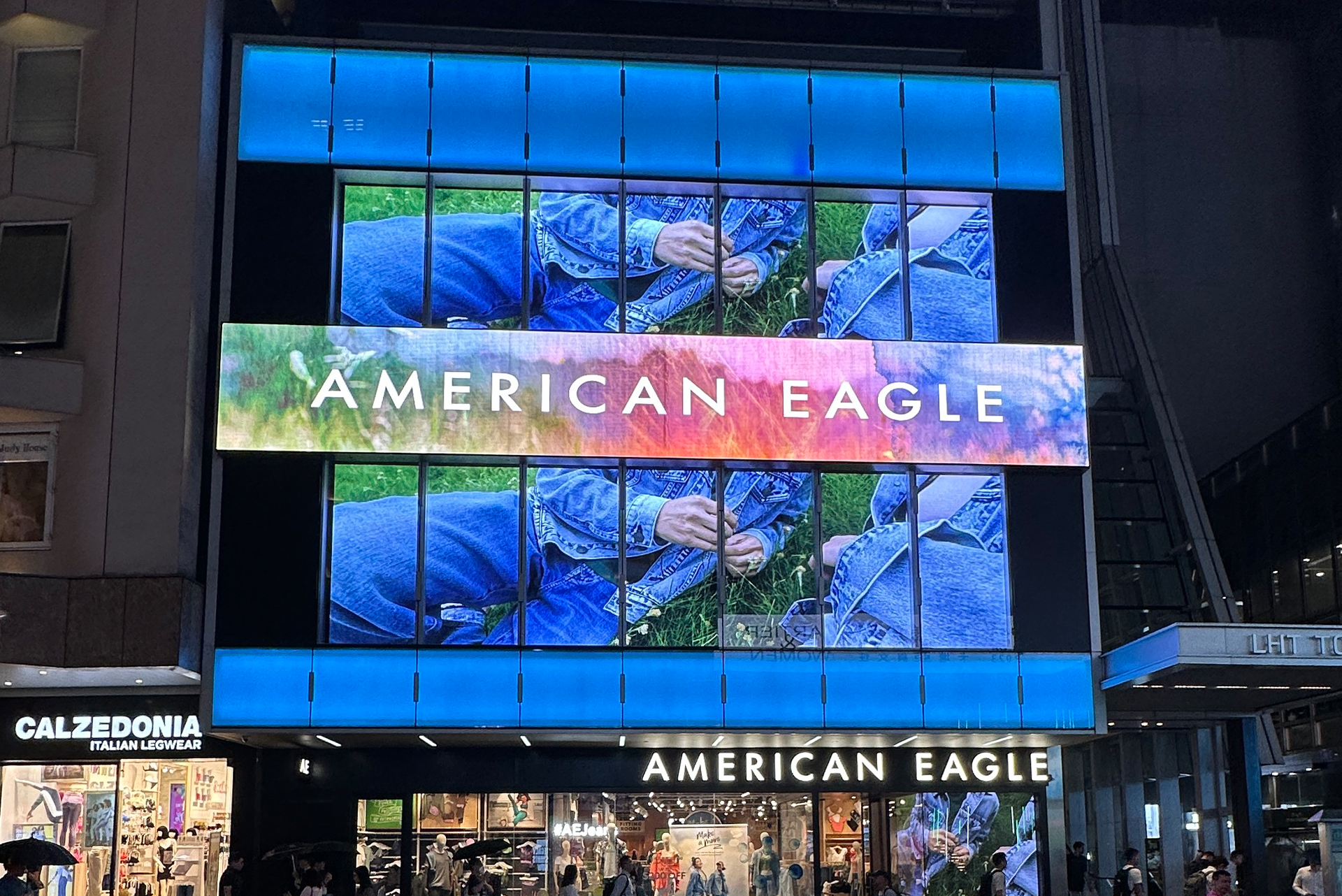

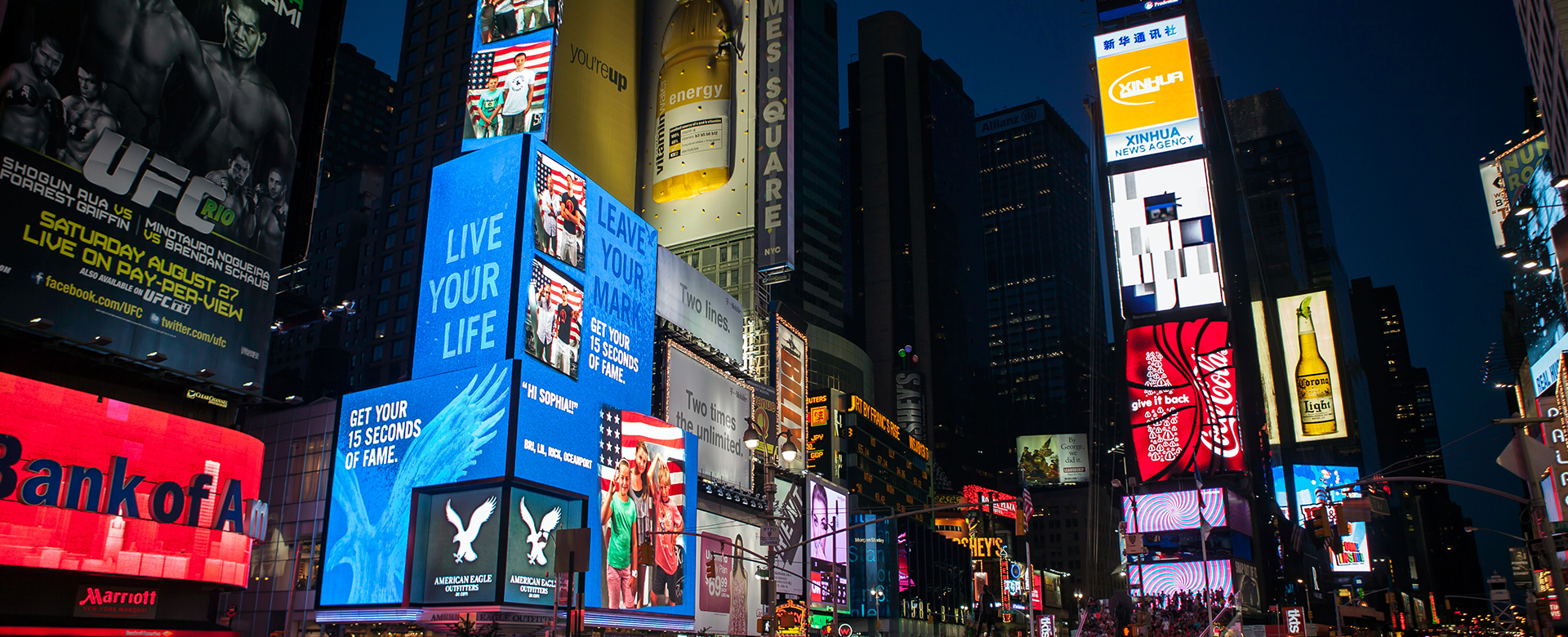

Commercial Street
Shopping Mall
Office Building
Sports Events
Train Station
Pedestrian Street
Subway Station
Central Park

Specifications

SV2.5S

SV3S

SV4S

SV4S(L)

SV5S

SV6S

SV6S (L)

SV8S

SV8S (L)

SV10S

Item
Pixel Configuration
Pitch (mm)
Module Resolution (WxH)
Module Size (mm)(WxH)
Unit Area (㎡)
Pixel Density (pixel/㎡)
Brightness (nits)
Color Temperature (K)
Viewing Angle (H/V) °
Max Power  (W/㎡)
Refresh Rate (Hz)
Operation/Storage Temp (℃ )
Operation/Storage Humidity (RH)

                                                                                SV2.5S

                                                                                SMD

                                                                                2.5

                                                                                128x64

                                                                                320x160

                                                                                0.0512

                                                                                160000

                                                                                ≥4000

                                                                                3000—15000 Adjustable

                                                                                160; 140

                                                                                ≤700

                                                                                ≥3840

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                SV3S

                                                                                SMD

                                                                                3.076

                                                                                104x52

                                                                                320x160

                                                                                0.0512

                                                                                105625

                                                                                ≥4000

                                                                                3000—15000 Adjustable

                                                                                160; 140

                                                                                ≤700

                                                                                ≥3840

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                SV4S

                                                                                SMD

                                                                                4

                                                                                64x32

                                                                                256x128

                                                                                0.03277

                                                                                62500

                                                                                ≥5000

                                                                                3000—15000 Adjustable

                                                                                160; 140

                                                                                ≤800

                                                                                ≥3840 (≥1920 optional)

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                SV4S(L)

                                                                                SMD

                                                                                4

                                                                                80x40

                                                                                320x160

                                                                                0.0512

                                                                                62500

                                                                                ≥5000

                                                                                3000—15000 Adjustable

                                                                                160; 140

                                                                                ≤700

                                                                                ≥3840 (≥1920 optional)

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                SV5S

                                                                                SMD

                                                                                5

                                                                                64x32

                                                                                320x160

                                                                                0.0512

                                                                                40000

                                                                                ≥4500

                                                                                3000—15000 Adjustable

                                                                                160; 140

                                                                                ≤700

                                                                                ≥3840 (≥1920 optional)

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                SV6S

                                                                                SMD

                                                                                6

                                                                                32x32

                                                                                192x192

                                                                                0.03686

                                                                                27778

                                                                                ≥4500

                                                                                3000—15000 Adjustable

                                                                                160; 140

                                                                                ≤710

                                                                                ≥3840 (≥1920 optional)

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                SV6S (L)

                                                                                SMD

                                                                                5.925

                                                                                54x27

                                                                                320x160

                                                                                0.0512

                                                                                28476

                                                                                ≥4500

                                                                                3000—15000 Adjustable

                                                                                160; 140

                                                                                ≤700

                                                                                ≥3840 (≥1920 optional)

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                SV8S

                                                                                SMD

                                                                                8

                                                                                32x16

                                                                                256x128

                                                                                0.03277

                                                                                15625

                                                                                ≥4500

                                                                                3000—15000 Adjustable

                                                                                160; 140

                                                                                ≤800

                                                                                ≥3840 (≥1920 optional)

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                SV8S (L)

                                                                                SMD

                                                                                8

                                                                                40x20

                                                                                320x160

                                                                                0.0512

                                                                                15625

                                                                                ≥4500

                                                                                3000—15000 Adjustable

                                                                                160; 140

                                                                                ≤700

                                                                                ≥3840 (≥1920 optional)

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

                                                                                SV10S

                                                                                SMD

                                                                                10

                                                                                32x16

                                                                                320x160

                                                                                0.0512

                                                                                10000

                                                                                ≥5000

                                                                                3000—15000 Adjustable

                                                                                160; 140

                                                                                ≤740

                                                                                ≥3840 (≥1920 optional)

                                                                                -20~40; -20~60

                                                                                10~80%; 10~85%

Remark: Above data is subject to change without prior notice
