VDS Series Indoor Fine Pitch COB LED Display

INDOOR FINE PITCH FULL FLIP CHIP COB LED DISPLAY

With a 27" 16:9 cabinet, the VDS Series is perfect for Full HD, 4K and 8K setups. It is ideal for those public spaces such as showrooms, museums, lobbies, etc.

KEY FEATURES

0.7 ~ 1.5mm pixel pitch.
Latest COB technology
More robust – 4H hardness
Full front installation and service
Efficient power consumption
Low power standby
5G signal architecture
EMC Class B

Message

Product Highlights

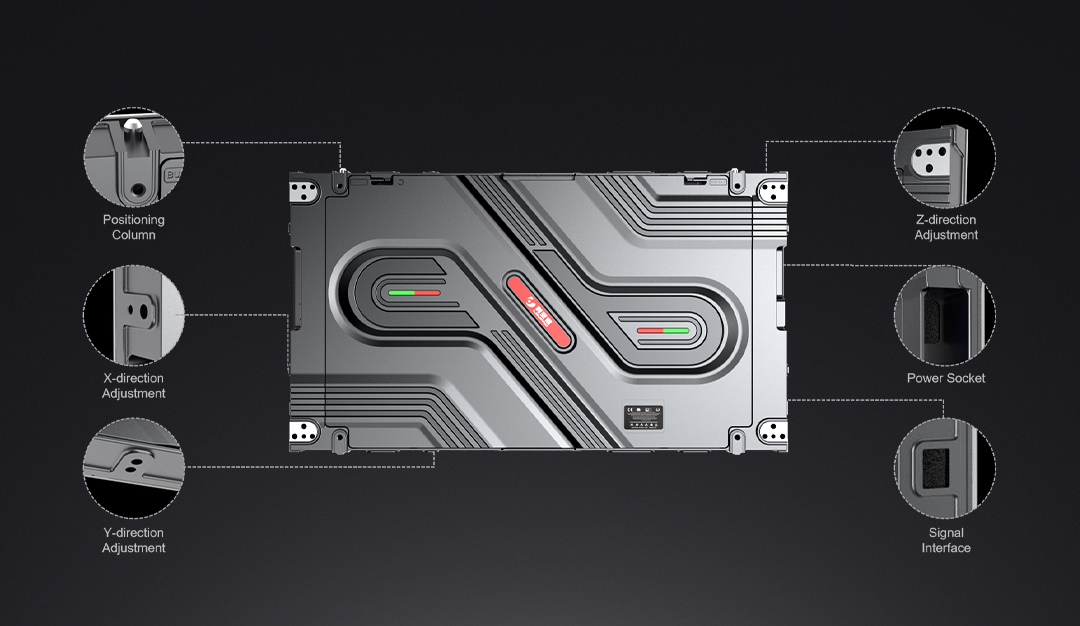

Advanced Mechanical Design

• Perfect, easy alignment of displays in all axes for a homogeneous, flat appearance of the video wall
• Highly precisely manufactured die-cast aluminium housing
• Internal connectors for power and signal for a wireless setup of the video wall

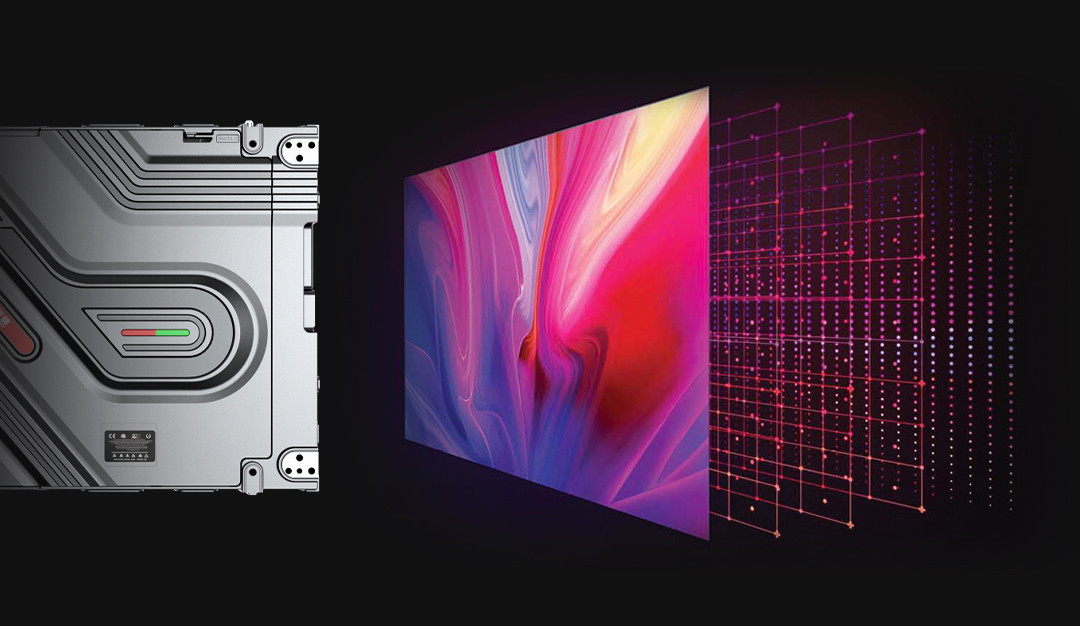

Latest COB LED Technology

By using the latest COB flip-chip LED technology, the VDS series from Leyard offers a coated surface which, on the one hand, makes the image appear more homogeneous compared to traditional SMD LED displays and, on the other hand, automatically provides a protective surface

90° Angle Splicing

Optionally, the VDS Series LED displays can also be installed in 90° corners. This allows you to achieve more eye-catching and creative installations beyond the usual rectangular formats. This creates a barely visible ridge in the corner, which creates a perfect image impression, e.g. in naked-eye 3D applications.

Resistant Surface with Excellent Mechanical Robustness

As the surface is glued, the screen can be touched without any risk of damaging the LEDs by human static electricity. In addition, the protective surface enables easy cleaning of the wall and protection against external influences. The more than ten times increased hardness compared to SMD LEDs allows the use of the displays even in demanding environments with high public traffic, such as airports, railway stations, museums or public entrance areas.

Ultra-High Refresh Rate & Colour Space

Even the fastest video content is displayed razor-sharp and streak-free by the VDS series. The ultra-high refresh rates of 3840Hz at 14bit or 7680Hz at 12bit colour depth allow brilliant images even with highly dynamic moving pictures.

Built-in One-Key Energy Saving

In stand-by mode, the power supply to the modules is completely cut off. By sending a command through the processor, the cabinets can be placed in a low-power standby mode, reducing power consumption to as little as 3W per m².

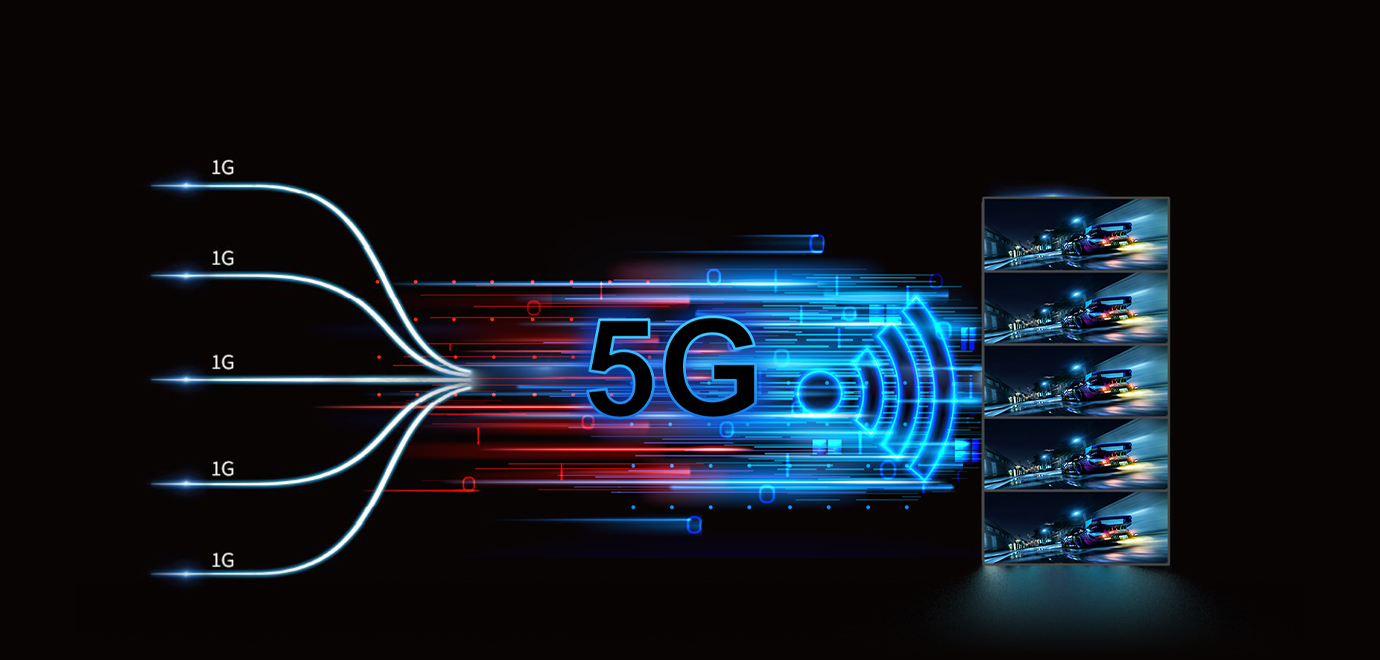

High Bandwidth at 5G Architecture

Offering 5G architecture with optional signal redundancy, which means 5x the bandwidth of competitive solutions, reducing total cost of ownership with fewer cabinets, cables and internal components like receivers and power supplies.

Solution

The Leyard VDS Series is the latest LED technology using Chip on Board (COB) technology. COB LED technology is becoming increasingly popular and Leyard has developed the VDS Series to provide a state-of-the-art visualization solution. Using this technology allows the display to achieve extremely large viewing angles and high contrast ratios. All this while maintaining a very high power efficiency ratio. In addition, it comes packed with the latest 5G technology for easy installation and cabling.

Application

Conference Centre

Control Centre

Broadcast

Meeting Room

Exhibition Centre

Home Cinema

Specifications

VDS007

VDS009

VDS012

VDS015

Item
Pixel Configuration
Pitch (mm)
Module Size (mm)
Cabinet Resolution
Cabinet Dimension (WxHxD, mm)
Unit Area (㎡)
Pixel Density (pixel/㎡)
Brightness (nits) (after calibration)
Viewing Angle (H/V) (°)
Max/Average Power (W/㎡)
Color Temperature (K)
Refresh Rate(Hz)
Operation/Storage Temp(℃)
Operation/Storage Humidity(RH)

                                                                                VDS007

                                                                                Full Flip Chip COB

                                                                                0.78

                                                                                150x168.75

                                                                                768×432

                                                                                600×337.5×43.5

                                                                                0.2025

                                                                                1638400

                                                                                600 (1000 optional)

                                                                                160; 160

                                                                                425; 200

                                                                                3000~10000 adjustable

                                                                                3840

                                                                                -10 ~ 40; -20 ~ 60

                                                                                10~90%; 10~95%

                                                                                VDS009

                                                                                Full Flip Chip COB

                                                                                0.935

                                                                                150x168.75

                                                                                640×360

                                                                                600×337.5×43.5

                                                                                0.2025

                                                                                1137777

                                                                                600 (1000 optional)

                                                                                160; 160

                                                                                375; 175

                                                                                3000~10000 adjustable

                                                                                3840

                                                                                -10 ~ 40; -20 ~ 60

                                                                                10~90%; 10~95%

                                                                                VDS012

                                                                                Full Flip Chip COB

                                                                                1.25

                                                                                150x168.75

                                                                                480×270

                                                                                600×337.5×43.5

                                                                                0.2025

                                                                                640000

                                                                                600 (1000 optional)

                                                                                160; 160

                                                                                325; 160

                                                                                3000~10000 adjustable

                                                                                3840

                                                                                -10 ~ 40; -20 ~ 60

                                                                                10~90%; 10~95%

                                                                                VDS015

                                                                                Full Flip Chip COB

                                                                                1.56

                                                                                150x168.75

                                                                                384×216

                                                                                600×337.5×43.5

                                                                                0.2025

                                                                                409600

                                                                                600 (1000 optional)

                                                                                160; 160

                                                                                325; 160

                                                                                3000~10000 adjustable

                                                                                3840

                                                                                -10 ~ 40; -20 ~ 60

                                                                                10~90%; 10~95%

Remark: Above data is subject to change without prior notice
