TKS Series Indoor Fine Pitch LED Display Cabinet 16:9 Ratio

INDOOR FINE PITCH LED DISPLAY CABINET 16:9 RATIO

HIGHLIGHT FEATURES

U-shaped Aluminum Alloy
HDR Ready ODM Lamp
Floating Connector
New Structural Process Design
16:9 Standard Format
100% Front Maintenance
6-Axis Alignment
AI Intelligent Adjustment System

Message

Product Highlights

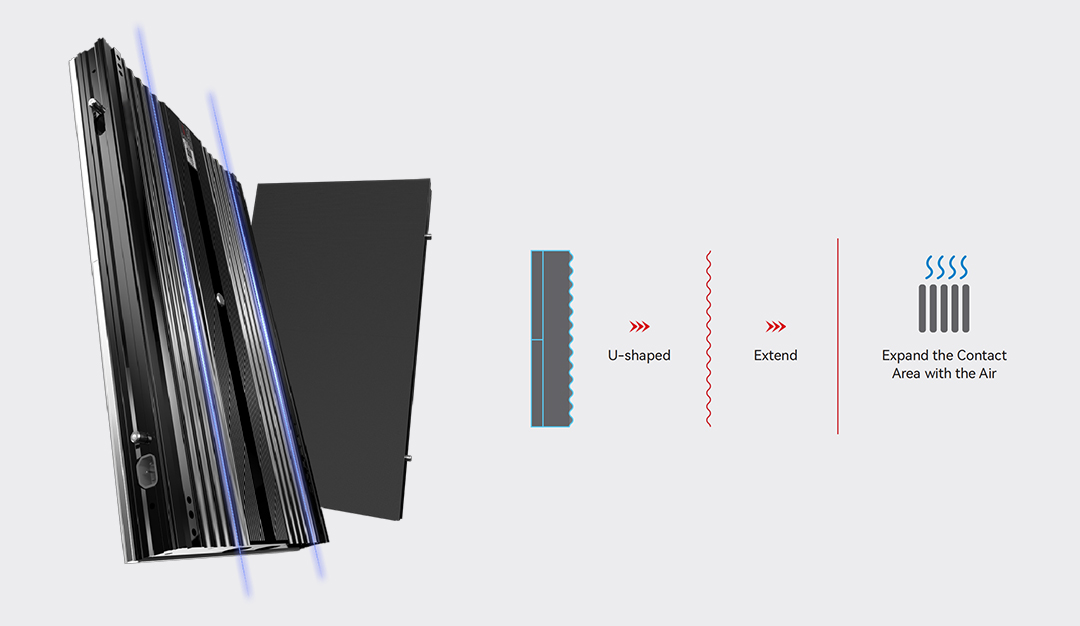

U-shaped iCool Heat Dissipation

TKS Series cabinet is made of high-strength U-shaped aluminum alloy structure design which greatly increases the heat dissipation area and improves the overall display effect.

Structural Features

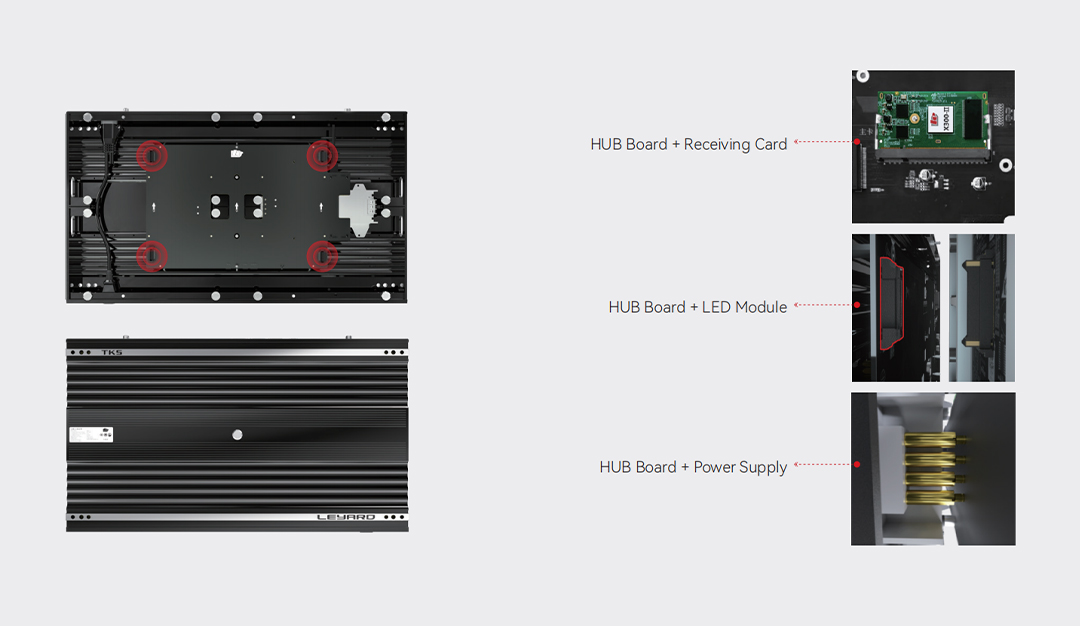

All-round wireless connection of internal components

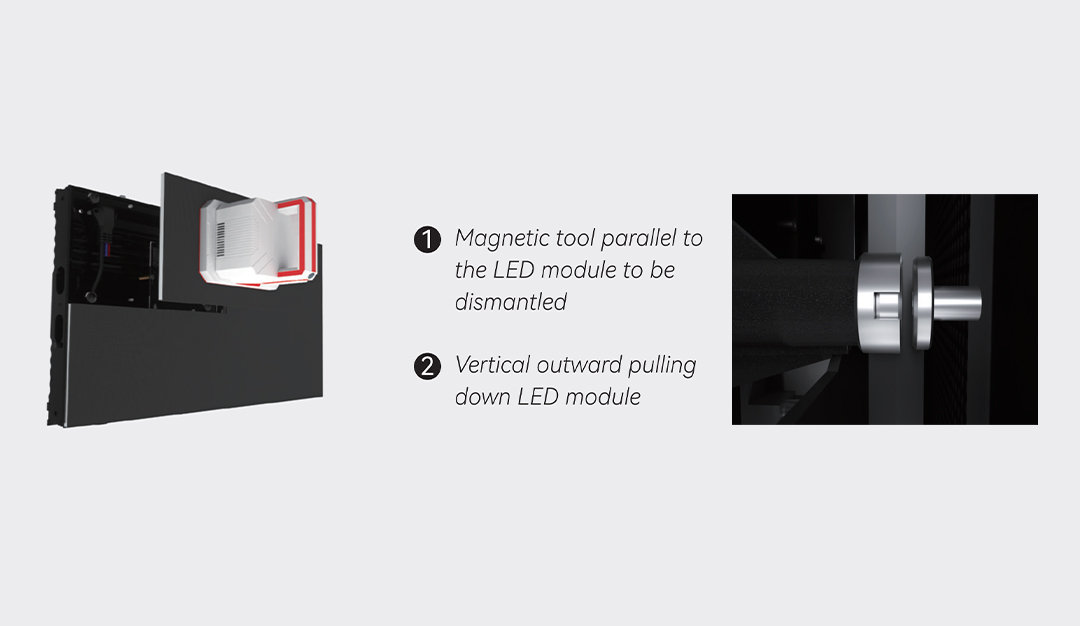

Full Front Maintenance Magnetic Design

Modules with magnetic design for excellent flatness and seamless splicing of the whole screen

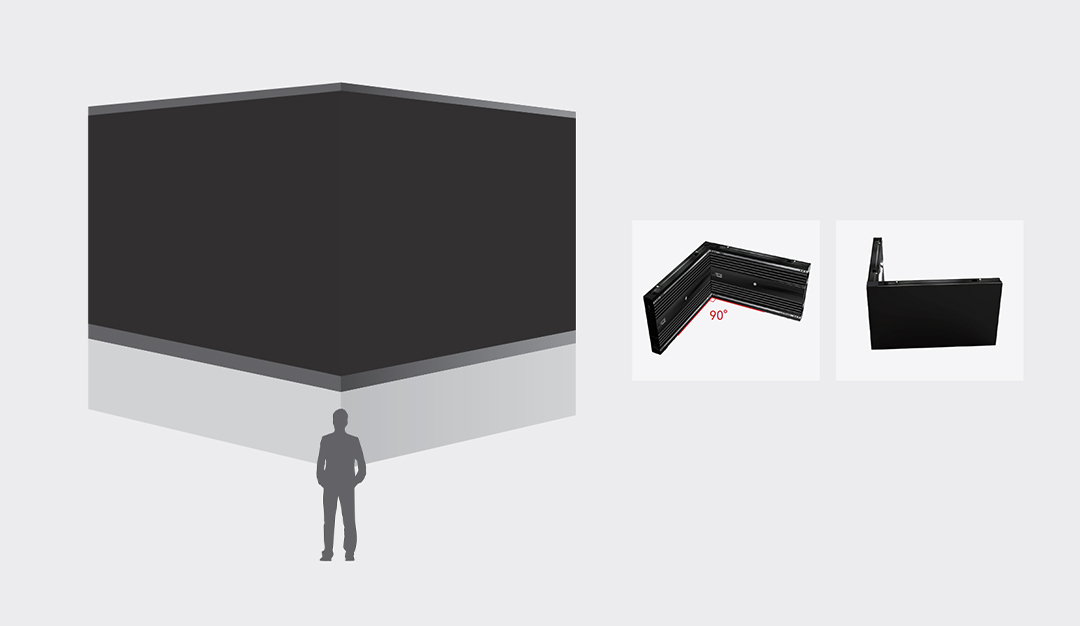

Customizable Right-angle Splicing

Considering the use of corners, the cabinet is designed to stitch out a seamless 90 degree corner screen.

Solution

TKS Series cabinet indoor (16:9 ratio, front maintenance, System & PSU Backup) made of high-strength U-shaped aluminum alloy structure design which greatly increases the heat dissipation area and improves the overall display effect. Floating connector between modules and HUB boards, which achieves more stable excellent flatness of the screen. 100% front maintenance magnetic design to suitable for more application scenarios. Widely used in controlling center, conference room, TV station, etc.

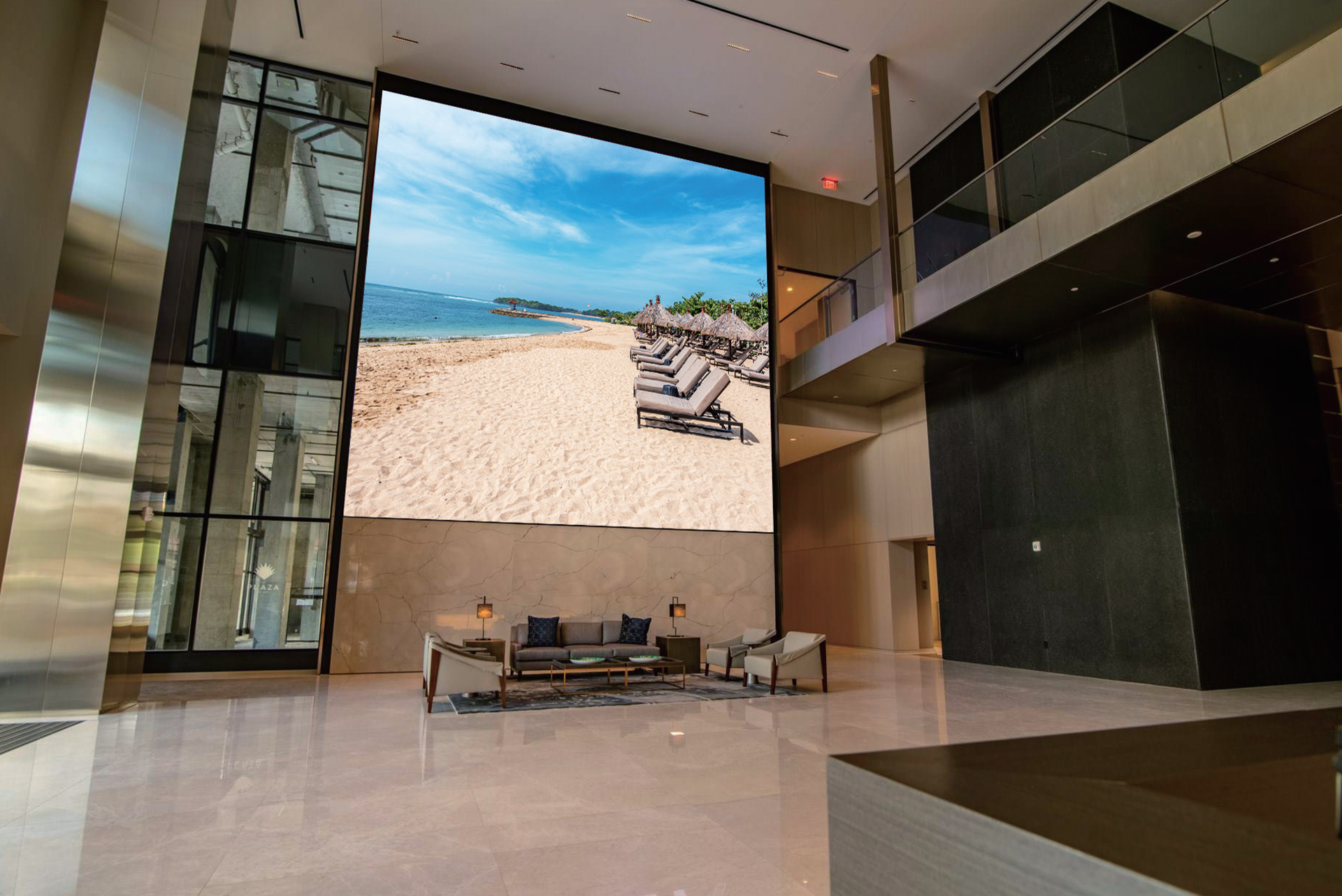

Application

Brand Centre

Museum Centre

Retails & Store

Meeting Room

Exhibition Centre

Artistic Theme

Specifications

TKS0.9

TKS1.2

TKS1.5

TKS1.8

TKS2.5

Item
Pixel Configuration
Pitch (mm)
Module Resolution (WxH)
Module Size (mm)(WxHxD)
Module Composition (WxH)
Cabinet Resolution (WxH)
Cabinet Size (mm)(WxHxD)
Unit Area (㎡)
Pixel Density (pixel/㎡)
Brightness (nits)
Color Temperature (K)
H/V Viewing Angle (° )
Contrast Ratio
Max/Avg. Power Consumption (W/㎡)
Refresh Rate (Hz)
Installation Method
Operation / Storage Temperature (℃)
Operation / Storage Humidity (RH)

                                                                                TKS0.9

                                                                                SMD 3in1 0606

                                                                                0.9375

                                                                                320x180

                                                                                300x168.75

                                                                                2x2

                                                                                640x360

                                                                                600x337.5x57

                                                                                0.2025

                                                                                1137777

                                                                                ≥450

                                                                                3000—10000 Adjustable

                                                                                160/145

                                                                                5000:1

                                                                                600/200

                                                                                ≥3840

                                                                                Front / Rear

                                                                                -10~40 / -20~60

                                                                                10~90% no condensation / 10~95% no condensation

                                                                                TKS1.2

                                                                                SMD 3in1 1010

                                                                                1.25

                                                                                240x135

                                                                                300x168.75

                                                                                2x2

                                                                                480x270

                                                                                600x337.5x57

                                                                                0.2025

                                                                                640000

                                                                                ≥450

                                                                                3000—10000 Adjustable

                                                                                160/145

                                                                                5000:1

                                                                                600/200

                                                                                ≥3840

                                                                                Front / Rear

                                                                                -10~40 / -20~60

                                                                                10~90% no condensation / 10~95% no condensation

                                                                                TKS1.5

                                                                                SMD 3in1 1212

                                                                                1.5625

                                                                                192x108

                                                                                300x168.75

                                                                                2x2

                                                                                384x216

                                                                                600x337.5x57

                                                                                0.2025

                                                                                409600

                                                                                ≥600

                                                                                3000—10000 Adjustable

                                                                                160/145

                                                                                5000:1

                                                                                600/200

                                                                                ≥3840

                                                                                Front / Rear

                                                                                -10~40 / -20~60

                                                                                10~90% no condensation / 10~95% no condensation

                                                                                TKS1.8

                                                                                SMD 3in1 1515

                                                                                1.875

                                                                                160x90

                                                                                300x168.75

                                                                                2x2

                                                                                320x180

                                                                                600x337.5x57

                                                                                0.2025

                                                                                284444

                                                                                ≥600

                                                                                3000—10000 Adjustable

                                                                                160/145

                                                                                5000:1

                                                                                600/200

                                                                                ≥3840

                                                                                Front / Rear

                                                                                -10~40 / -20~60

                                                                                10~90% no condensation / 10~95% no condensation

                                                                                TKS2.5

                                                                                SMD 3in1 2121

                                                                                2.5/2.48

                                                                                120x68

                                                                                300x168.75

                                                                                2x2

                                                                                240x136

                                                                                600x337.5x57

                                                                                0.2025

                                                                                161185

                                                                                ≥600

                                                                                3000—10000 Adjustable

                                                                                160/145

                                                                                5000:1

                                                                                600/200

                                                                                ≥3840

                                                                                Front / Rear

                                                                                -10~40 / -20~60

                                                                                10~90% no condensation / 10~95% no condensation

Remark: Above data is subject to change without prior notice
