> Calming appearance, easy to use.
> Curvable design, -10° to 10° can be adjusted.
> Composite installation mode(500x500, 500x1000).

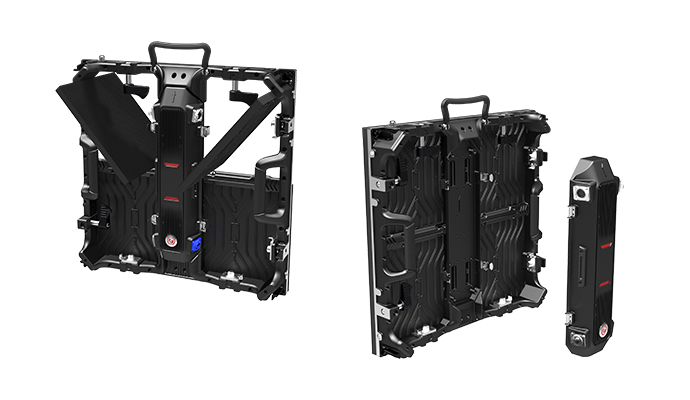

> 100% Rear Maintenance.

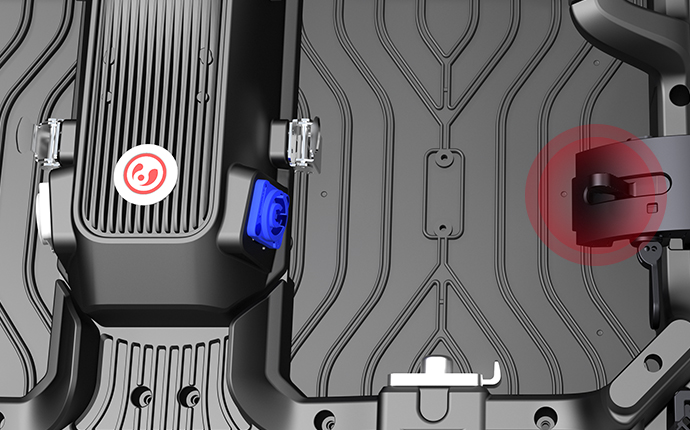

> Module front maintenance, each module has magnetic design making screen seamless.
> Outdoor waterproof products.

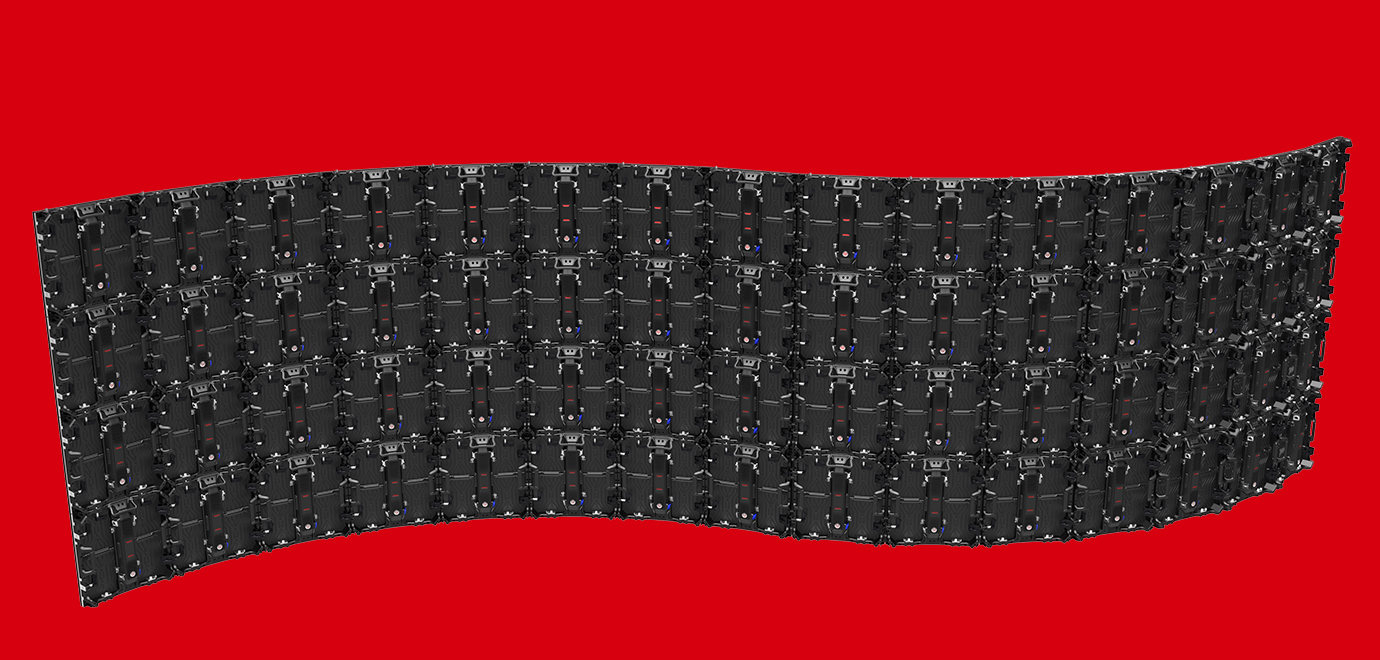

CURVABLE DESIGN
TXS is the rear access series of TX platform. The product is with Aluminum mechanical structure, optional dual power supply unit and distributed signal processing features. TXS is in the same form factor of TW series, i.e. 16:9 of a 27 inch cabinet. It is pretty easy to setup an UHD screen with TX platform products.

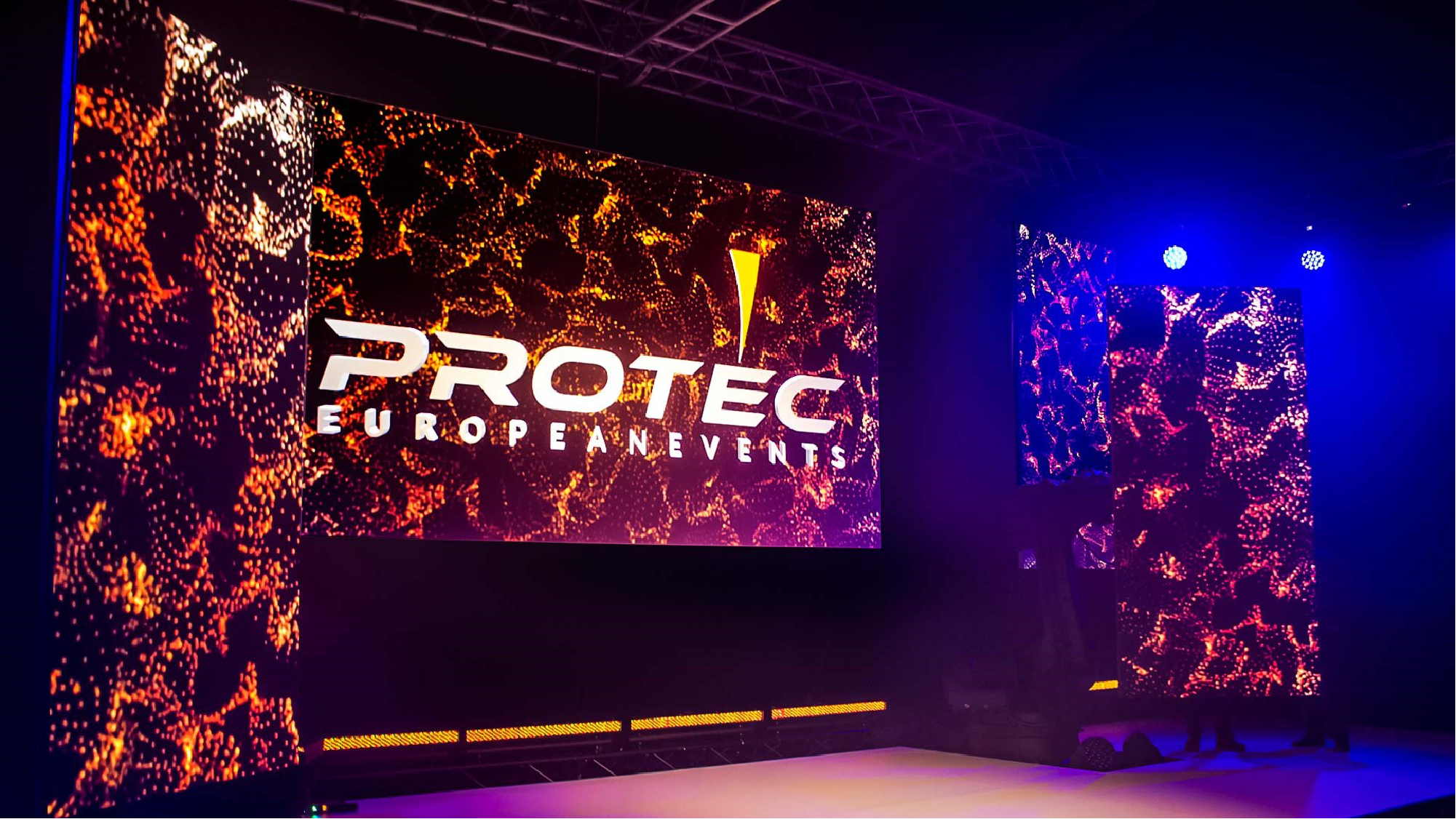

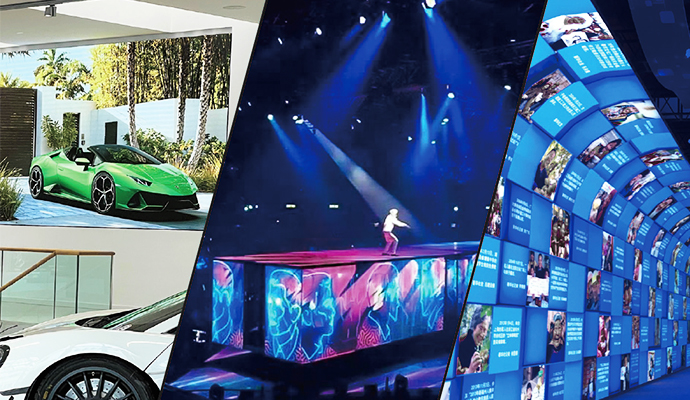

Application
Conferences
Stage Show
Celebrations
Variety Shows
Product Presentation
Car Exhibition
Item
Pixel Pitch
Brightness
Refresh Rate
Max. Power Consumption
Avg. Power Consumption
Viewing Angle (H/V)
Cabinet Dimensions (WxHxD)
Operational Temp/Humidity
Cabinet Material
Module Maintenance
PSU & Others Maintenance
LR019
1.95mm
800nits
3840Hz
650W/㎡
220W/㎡
160°/160°
500x500mm
-10° -40°C / 10-85% RH
Die-casting aluminum
Front and Rear
Rear
LR026
2.6mm
800nits
3840Hz
630W/㎡
210W/㎡
160°/160°
500x500mm
-10° -40°C / 10-85% RH
Die-casting aluminum
Front and Rear
Rear
LR029
2.97mm
800nits
3840Hz
600W/㎡
200W/㎡
160°/160°
500x500mm
-10° -40°C / 10-85% RH
Die-casting aluminum
Front and Rear
Rear
LR039
3.91mm
800nits
3840Hz
600W/㎡
200W/㎡
160°/160°
500x500 / 500x1000mm
-10° -40°C / 10-85% RH
Die-casting aluminum
Front and Rear
Rear
LR029S
2.97mm
4000nits
3840Hz
690W/㎡
230W/㎡
160°/160°
500x500mm
-10° -40°C / 10-90% RH
Die-casting aluminum
Front and Rear
Rear
LR039S
3.91mm
4000nits
3840Hz
690W/㎡
230W/㎡
160°/160°
500x500 / 500x1000mm
-10° -40°C / 10-90% RH
Die-casting aluminum
Front and Rear
Rear
LR048S
4.81mm
4000nits
3840Hz
690W/㎡
230W/㎡
160°/160°
500x500 / 500x1000mm
-10° -40°C / 10-90% RH
Die-casting aluminum
Front and Rear
Rear
