Smart Fine Pitch LED Video Wall

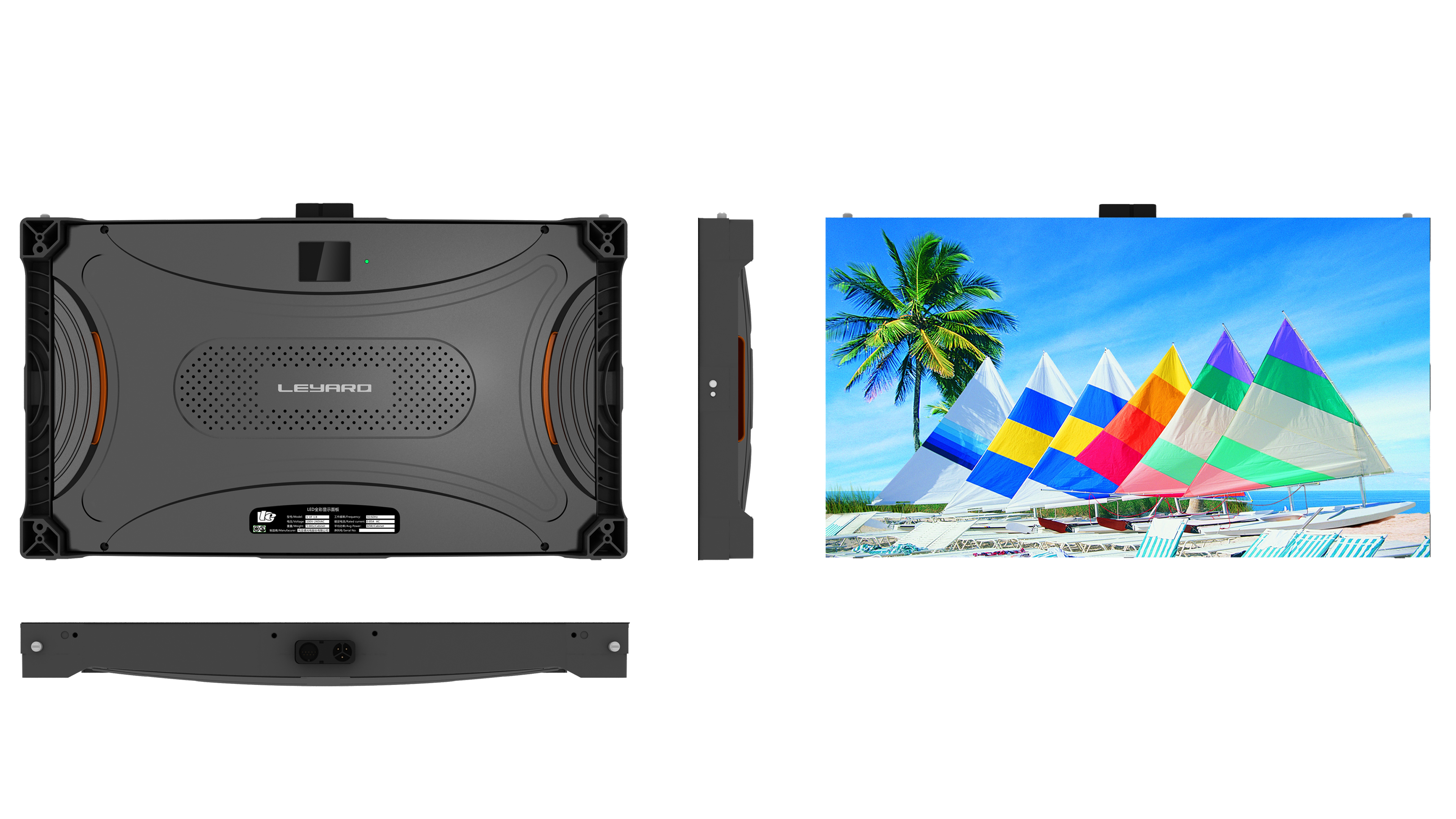

TVFII Series product is Leyard newly released fine pixel pitch LED Panels, which supports free
assembly and front access. Panel size is 27.3 inch with 16:9 aspect ratio.

Prominent Features

> Patented front access design, makes the front maintenance easy and convenient.

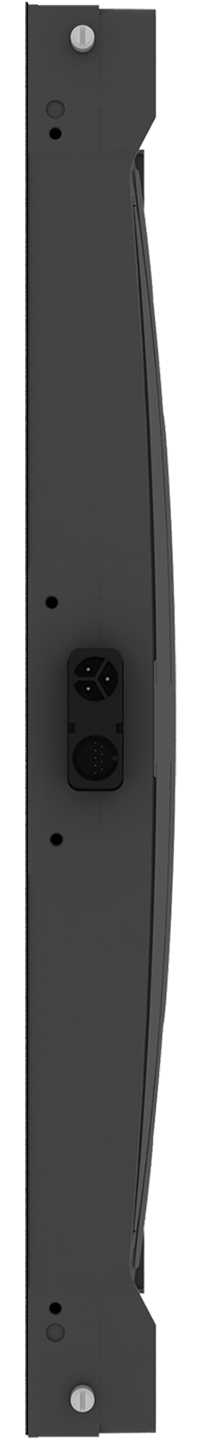

> Patented connection design for power and data, no external connector or cables between cabinets.

> Design with bright line/dark line mechanical adjustment for cabinets.

> With LED Lamp protection design on the bottom of the cabinet.

> “Non-Ghosting” circuit design, eliminating the ghosting causing between high contrasting content.

> With single pixel brightness, color calibration function. The calibration data is saved in the module, optimal uniformity can be guaranteed even after module replacement.

> Calibration data can be read-back automatically after spare module was replaced, no need to update data by operator additionally.

> Power redundancy and signal redundancy design, system reliability can be guaranteed.

> Adopt PSU with PFC function, to minimize the interference from LED screen supply harmonic to the power supply system.

Message

Product Highlights

Friendly Brightness Adjustment

Equipped with external light sensor, the screen brightness can be auto-adjusted according to the ambient light, to be always in a suitable level.

High Contrast Ratio

Adopt high quality black face LED lamp, increase the emitting brightness while lower the brightness of black frame.

Black mask processing technology will also increase the contrast ratio.

Broadcasting Grayscale Processing

Perfect grayscale performance in the area of low brightness. It can display more screen layering and color degrees when compared to previous products.
No detail loss

Image Sharpening

Image sharpening is able to create the appearance of a more pronounced edge, and this effect makes the image seem clearer, seemingly adding details. This is an image processing technology based on differential Algorithm.
Sharpening can make the image seem clearer, but it will add the noise as well.

Rapid Dynamic Display

LED features Nanosecond response time, the internal between ON and OFF is extremely short. It could rapidly response without Visual Staying Phenomenon, very clear. It has big advantage for those applications requiring super good dynamic rendering effect.
The self emitting mode for LED needs no response time, no visual staying phenomenon happened even when people observe the rapid movement objects.

Solution

Application

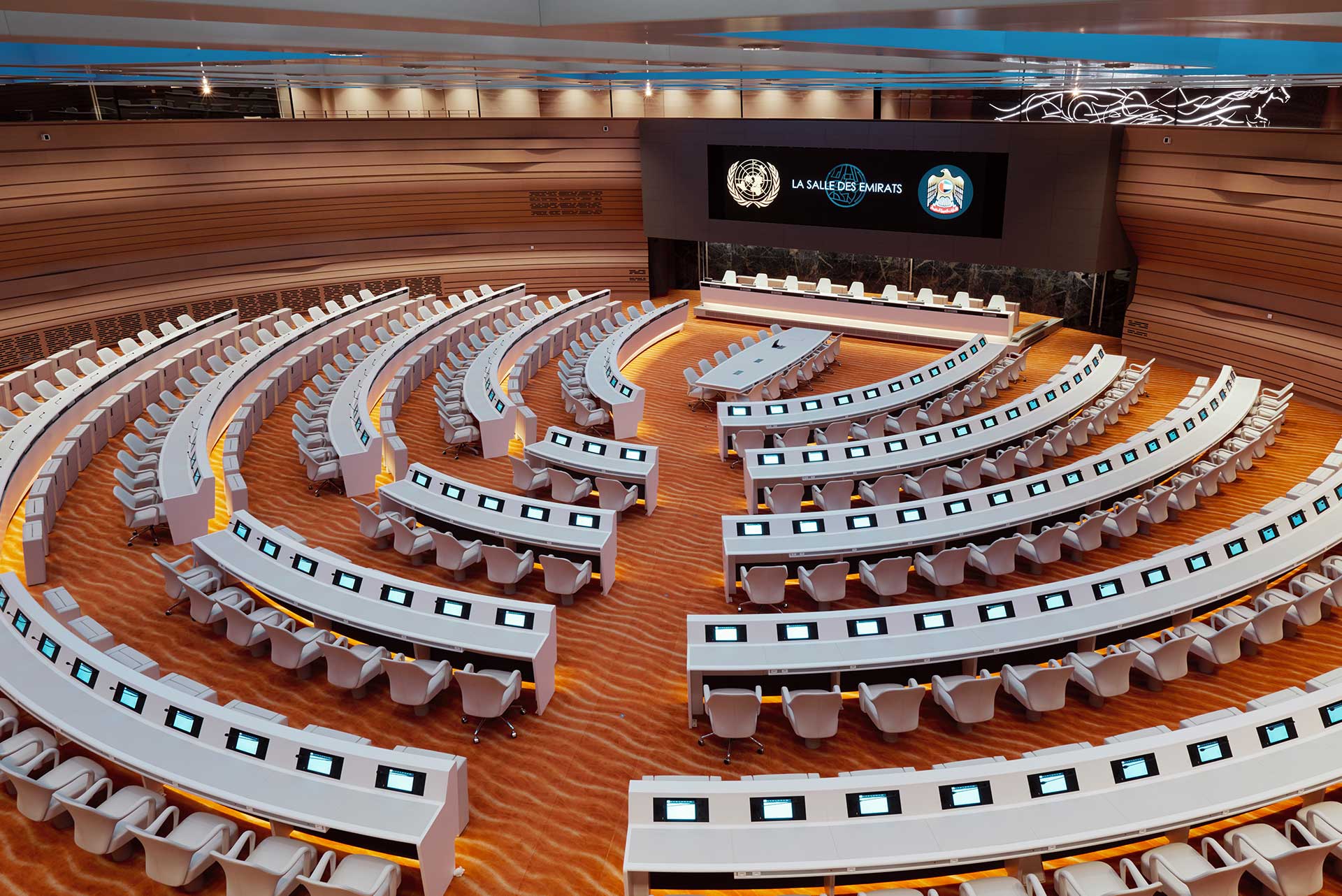

Conference Center

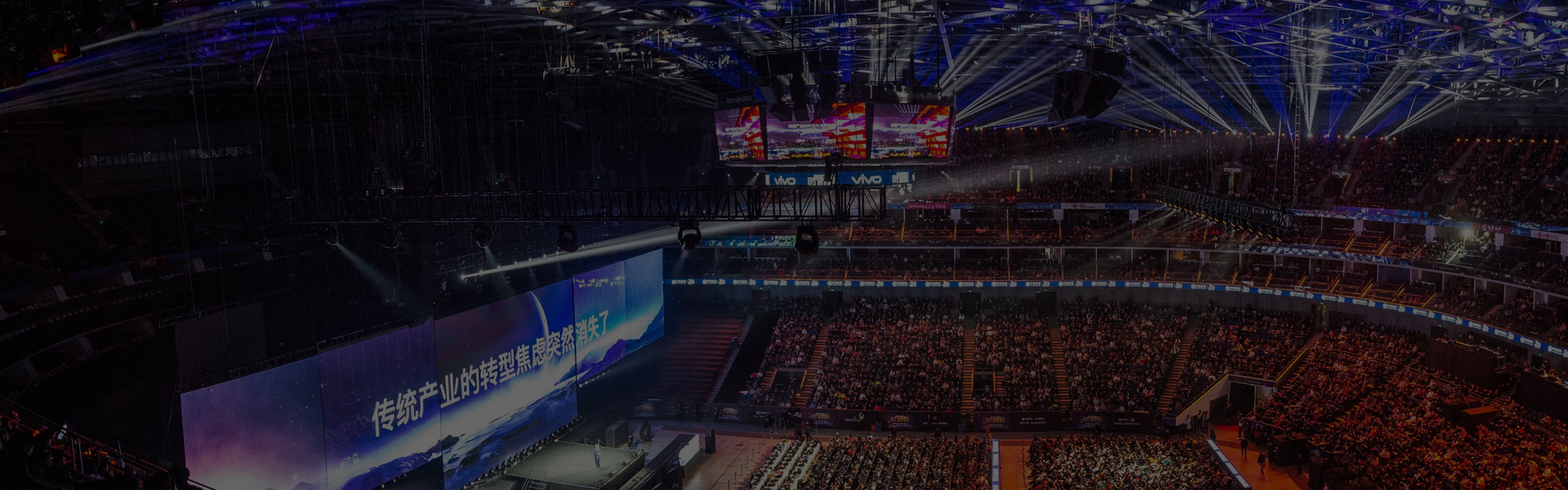

Sports & Entertainment

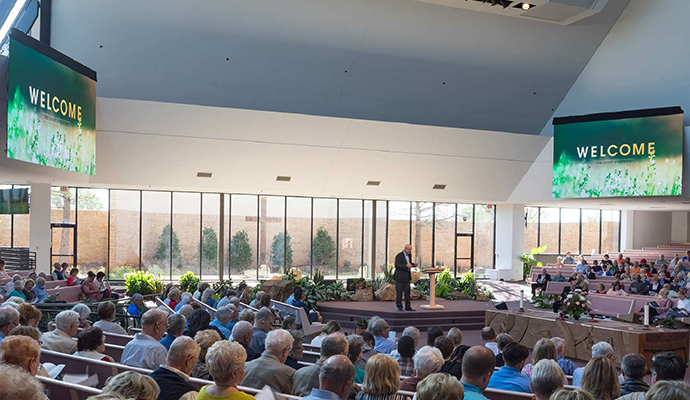

House of Worship
retail
rental and staging

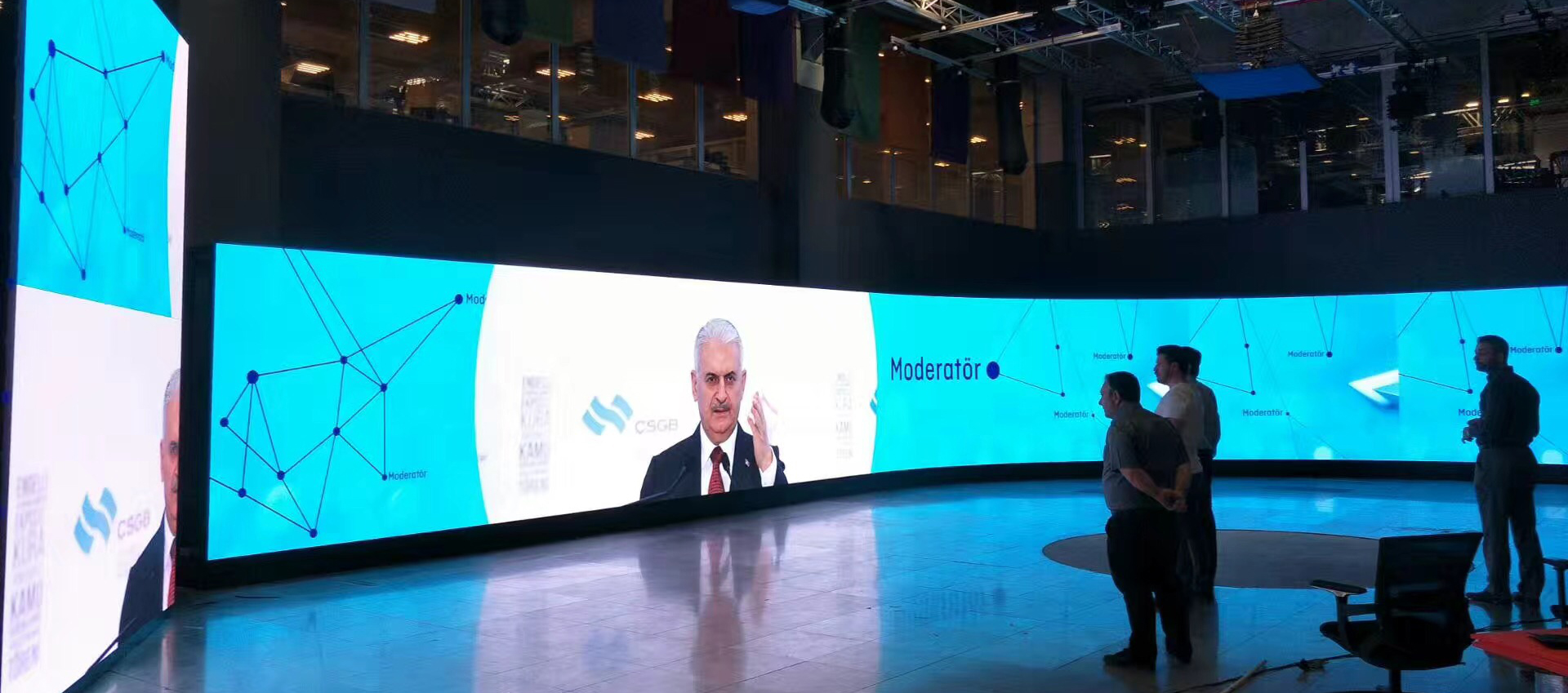

TV Studio
Control Center
Financial
Corporate
Information

Specifications

TVFII009

TVFII011

TVFII012

TVFII012i

TVFII014

TVFII015

TVFII015i

TVFII018

TVFII025

Item
Pixel Configuration
Pitch(mm)
Cabinet Resolution
Cabinet Dimension (WxHxD, mm)
Unit Area(㎡)
Cabinet Weight(Kg/㎡)
Pixel Density(pixel/㎡)
Brightness(nits) (after calibration)
Viewing Angle (H/V) (°)
Contrast Ratio
Max/Average Power (W/㎡)
Scanning Mode
Refresh Rate(Hz)
Operation/Storage Temp(℃)
Operation/Storage Humidity(RH)

                                                                                TVFII009

                                                                                SMD

                                                                                0.945

                                                                                640x360

                                                                                604.8×340.2×72.5

                                                                                0.205

                                                                                36

                                                                                1119789

                                                                                600

                                                                                160; 140

                                                                                7000:1

                                                                                620; 324

                                                                                45s

                                                                                2400/3840

                                                                                -10~40; -20~60

                                                                                10~80%; 10~85%

                                                                                TVFII011

                                                                                SMD

                                                                                1.18

                                                                                512x288

                                                                                604.8×340.2×72.5

                                                                                0.205

                                                                                36

                                                                                716665

                                                                                600

                                                                                160; 140

                                                                                7000:1

                                                                                600; 313

                                                                                48s

                                                                                2400/3840

                                                                                -10~40; -20~60

                                                                                10~80%; 10~85%

                                                                                TVFII012

                                                                                SMD

                                                                                1.26

                                                                                480x270

                                                                                604.8×340.2×72.5

                                                                                0.205

                                                                                36

                                                                                629882

                                                                                600

                                                                                160; 140

                                                                                7000:1

                                                                                600; 306

                                                                                45s

                                                                                2400/3840

                                                                                -10~40; -20~60

                                                                                10~80%; 10~85%

                                                                                TVFII012i

                                                                                4in1

                                                                                1.25

                                                                                480x272

                                                                                604.8×340.2×72.5

                                                                                0.205

                                                                                36

                                                                                640000

                                                                                600

                                                                                160; 140

                                                                                7000:1

                                                                                600; 306

                                                                                34s

                                                                                2400/3840

                                                                                -10~40; -20~60

                                                                                10~80%; 10~85%

                                                                                TVFII014

                                                                                SMD

                                                                                1.454

                                                                                416x234

                                                                                604.8×340.2×72.5

                                                                                0.205

                                                                                36

                                                                                473111

                                                                                600

                                                                                160; 140

                                                                                7000:1

                                                                                580; 295

                                                                                39s

                                                                                2400/3840

                                                                                -10~40; -20~60

                                                                                10~80%; 10~85%

                                                                                TVFII015

                                                                                SMD

                                                                                1.575

                                                                                384x216

                                                                                604.8×340.2×72.5

                                                                                0.205

                                                                                36

                                                                                403124

                                                                                600

                                                                                160; 140

                                                                                7000:1

                                                                                580; 295

                                                                                48s

                                                                                2400/3840

                                                                                -10~40; -20~60

                                                                                10~80%; 10~85%

                                                                                TVFII015i

                                                                                4in1

                                                                                1.575

                                                                                384x216

                                                                                604.8×340.2×72.5

                                                                                0.205

                                                                                36

                                                                                403124

                                                                                600

                                                                                160; 140

                                                                                7000:1

                                                                                580; 295

                                                                                36s

                                                                                2400/3840

                                                                                -10~40; -20~60

                                                                                10~80%; 10~85%

                                                                                TVFII018

                                                                                SMD

                                                                                1.89

                                                                                320x180

                                                                                604.8×340.2×72.5

                                                                                0.205

                                                                                36

                                                                                279947

                                                                                600

                                                                                160; 140

                                                                                7000:1

                                                                                560; 283

                                                                                45s

                                                                                2400/3840

                                                                                -10~40; -20~60

                                                                                10~80%; 10~85%

                                                                                TVFII025

                                                                                SMD

                                                                                2.5

                                                                                240x136

                                                                                604.8×340.2×72.5

                                                                                0.205

                                                                                36

                                                                                158637

                                                                                600

                                                                                160; 140

                                                                                7000:1

                                                                                540; 264

                                                                                34s

                                                                                2400/3840

                                                                                -10~40; -20~60

                                                                                10~80%; 10~85%

Remark: Above data is subject to change without prior notice
