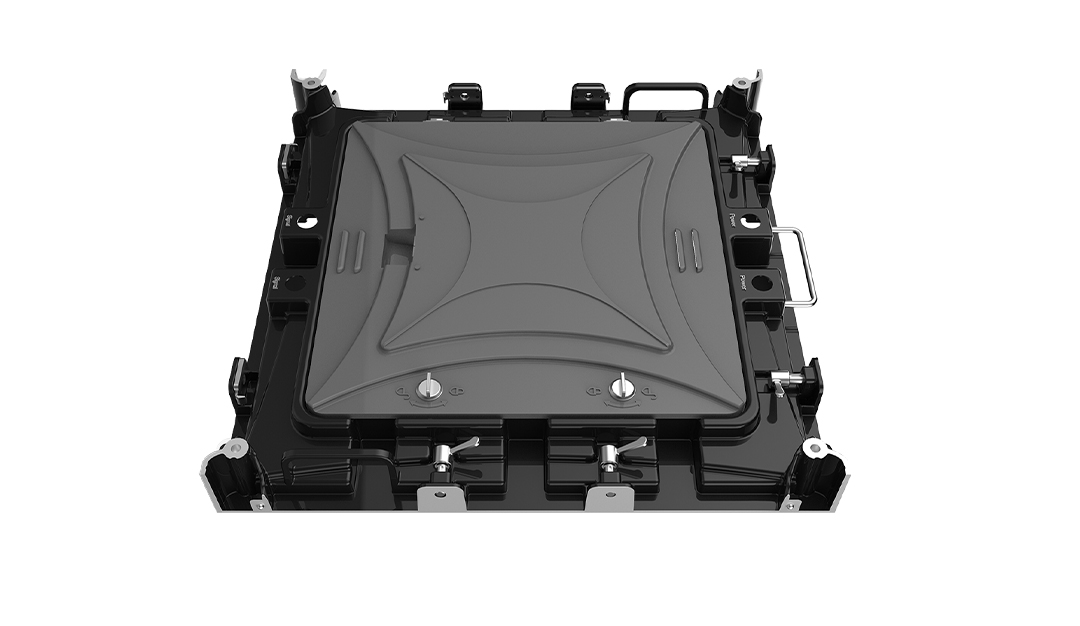

HIGH-PRECISION ALUMINUM ALLOY DIE-CASTING CABINET

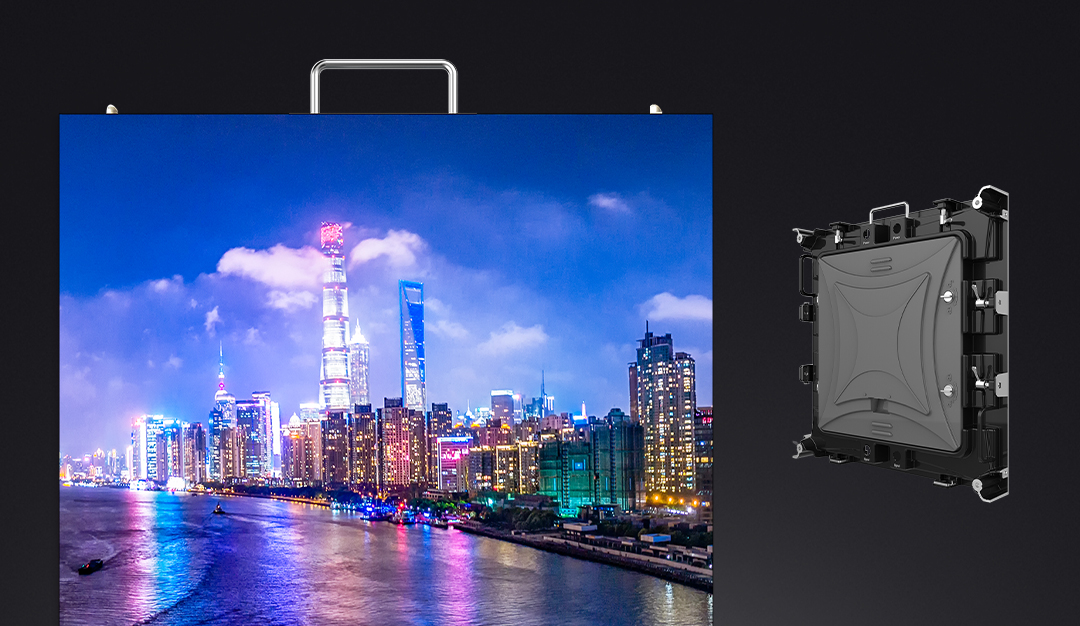

FRONT OR REAR MAINTENANCE OPTIONAL

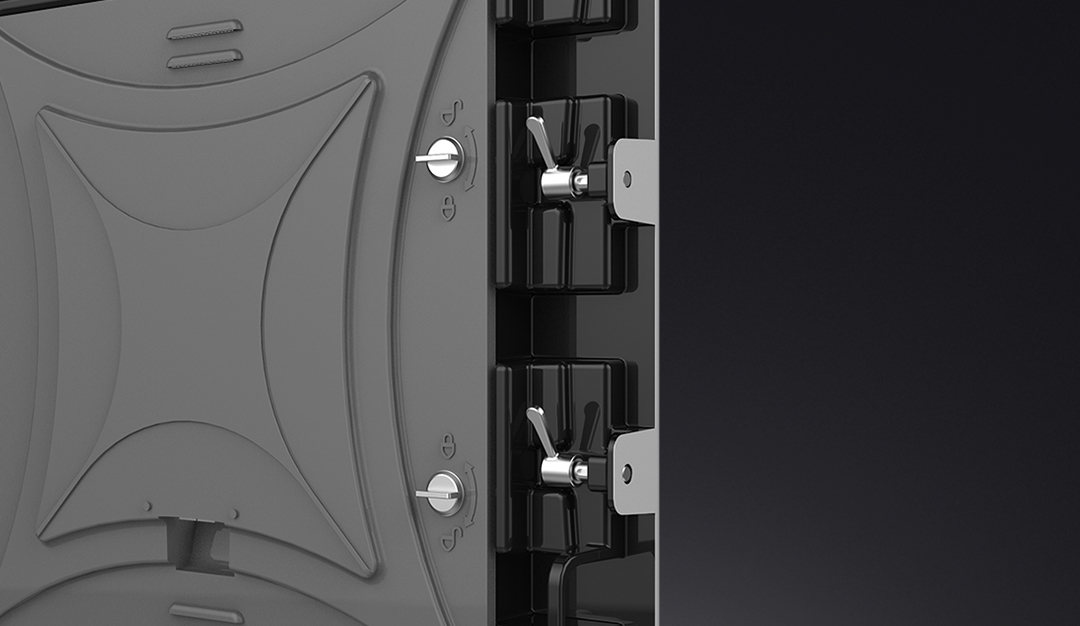

FAST INSTALLATION MECHANISM
CV-18 series adopts a high-strength and light-weight aluminum alloy die-casting structure with ultra-high structural accuracy, which can meet the needs of indoor fine pitch display. The cabinet structure of CV-18 can be front or rear maintenance, so that the product can be suitable for different use environments. Adopting quickly assembled connectors and automatic alignment mechanism for fast installation.

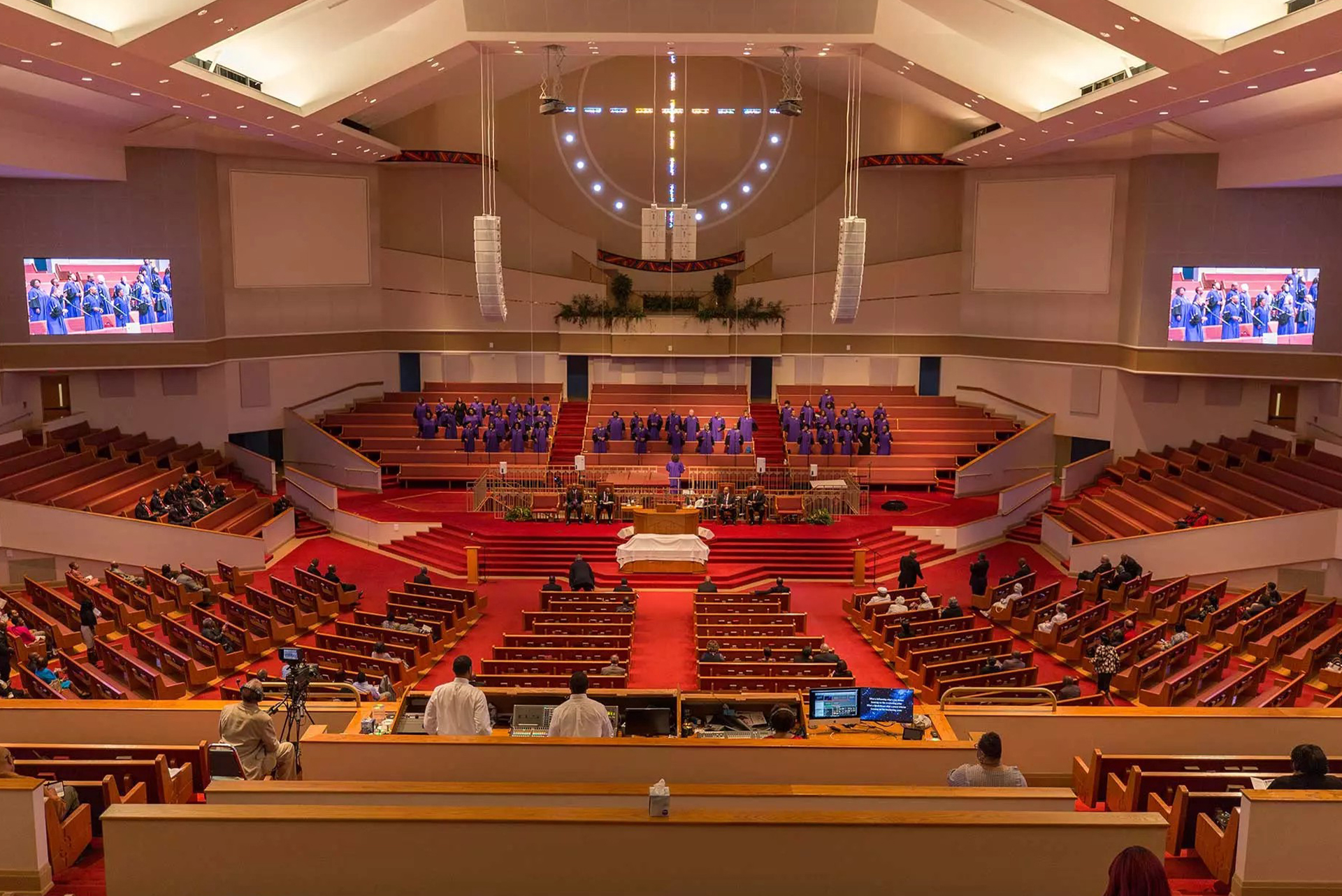

Application
Brand Centre
Museum Centre
Retails & Store
Meeting Room
Exhibition Centre
Artistic Theme
Item
Pixel Configuration
Pitch (mm)
Module Size (mm)(WxHxD)
Module Composition (WxH)
Cabinet Size (mm)(WxHxD)
Unit Area (㎡)
Cabinet Weight (kg/㎡)
Pixel Density (pixel/㎡)
Brightness (nits)
Color Temperature (K)
H/V Viewing Angle (° )
Max/Avg. Power Consumption (W/㎡)
Power Supply
Refresh Rate(Hz)
Operation/Storage Temperature (℃ )
Operation/Storage Humidity (RH)
CV1.5-18
SMD
1.538
320x160x16
2x4
640x640x90
0.4096
32
422500
≥500
3000-10000 Adjustable
160 / 140
533 / 175
AC100~240V (50/60Hz)
1920~3840
-20~40 / -30~60
10~80% / 10~85%
CV1.8-18
SMD
1.86
320x160x16
2x4
640x640x90
0.4096
32
288906
≥500
3000-10000 Adjustable
160 / 140
500 / 160
AC100~240V (50/60Hz)
1920~3840
-20~40 / -30~60
10~80% / 10~85%
CV2-18
SMD
2.0
256x128x16.5
2x4
512x512x86
0.2621
32
250000
600-800
3000-10000 Adjustable
160 / 140
480 / 160
AC100~240V (50/60Hz)
1920~3840
-20~40 / -30~60
10~80% / 10~85%
CV2.5-18
SMD
2.5
256x128x16.5
2x4
640x640x90
0.4096
32
160000
600-800
3000-10000 Adjustable
160 / 140
480 / 160
AC100~240V (50/60Hz)
1920~3840
-20~40 / -30~60
10~80% / 10~85%
CV3-18
SMD
3.0
192x192x16.5
3x3
576x576x86
0.3318
32
111111
600-800
3000-10000 Adjustable
160 / 140
450 / 150
AC100~240V (50/60Hz)
1920~3840
-20~40 / -30~60
10~80% / 10~85%
CV3(L)-18
SMD
3.076
320x160x16.5
2x4
640x640x90
0.4096
32
105625
600-800
3000-10000 Adjustable
160 / 140
450 / 150
AC100~240V (50/60Hz)
1920~3840
-20~40 / -30~60
10~80% / 10~85%
CV4-18
SMD
4.0
320x160x16.5
2x4
640x640x90
0.4096
32
62500
600-800
3000-10000 Adjustable
160 / 140
480 / 160
AC100~240V (50/60Hz)
1920~3840
-20~40 / -30~60
10~80% / 10~85%
