● 2K/4K Resolution ● Build-in Android System

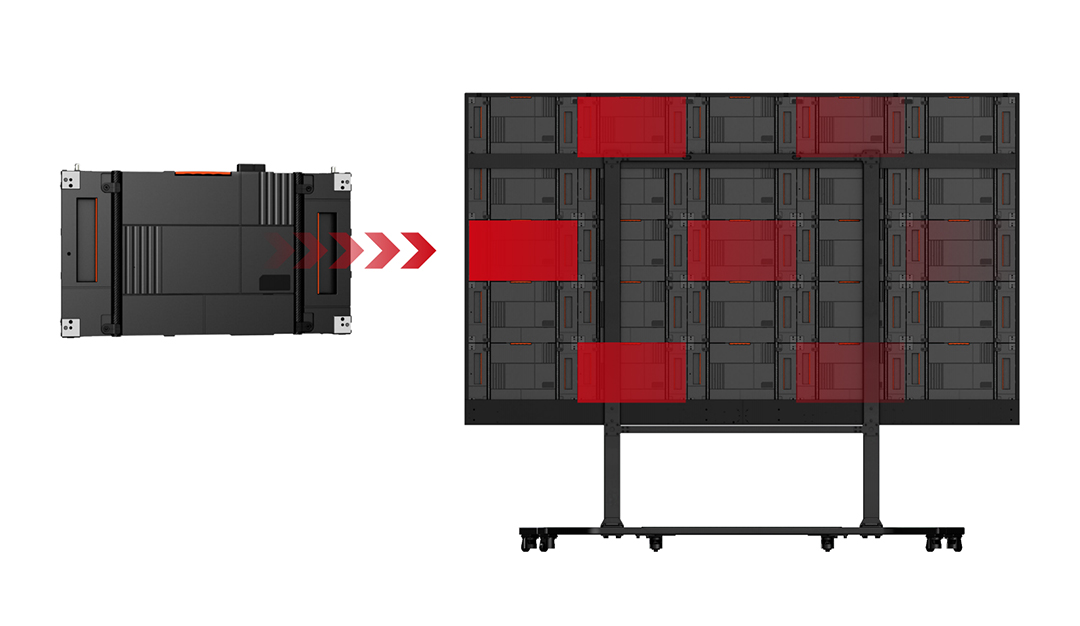

● Modular Design ● Boot Time≤15s
● Support OSD Menu ● Support Hanging / Sitting Mounting
● Wake-up Time≤2s ● Support Remote Control

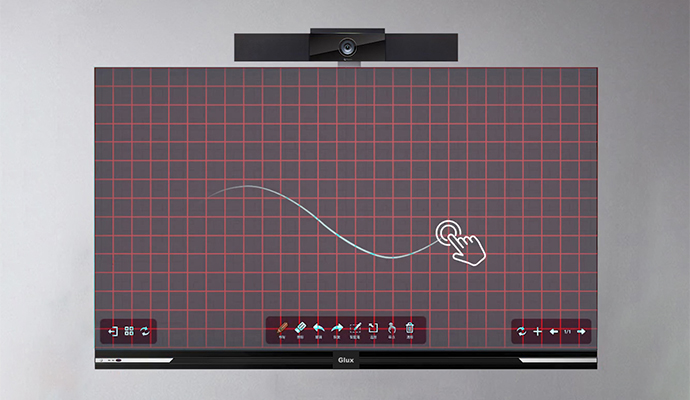

● Infrared Touch Optional
-2_1663126297.jpg)
Support 4k Ultra HD Resolution Display
Leyard iATII all-in-one LED display brings an immersive visual experience into the meeting rooms. It delivers a crisp visual performance under the sunlight that projector can never achieve.
Application

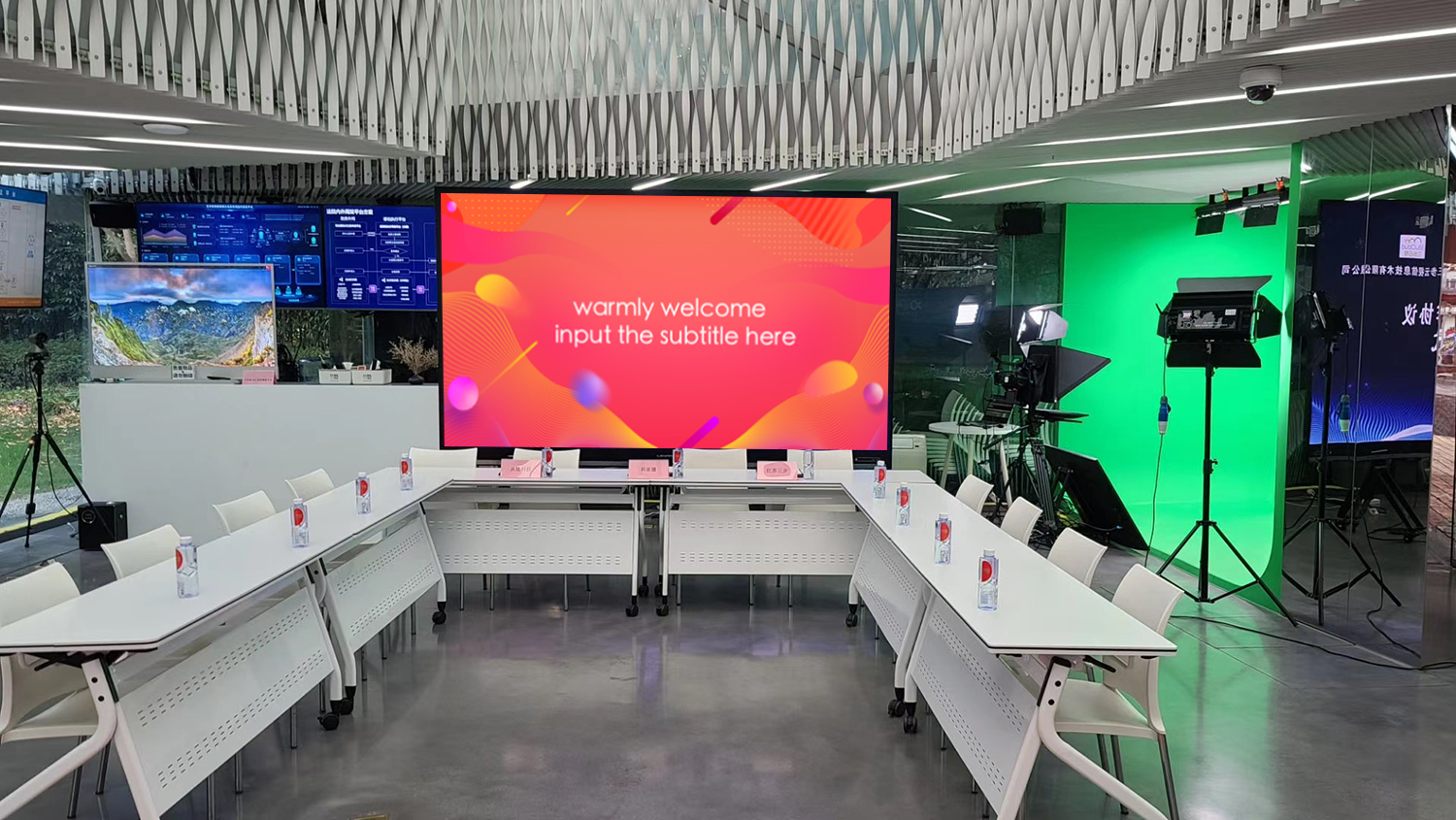

Conference rooms
Education / training
Lobbies displays

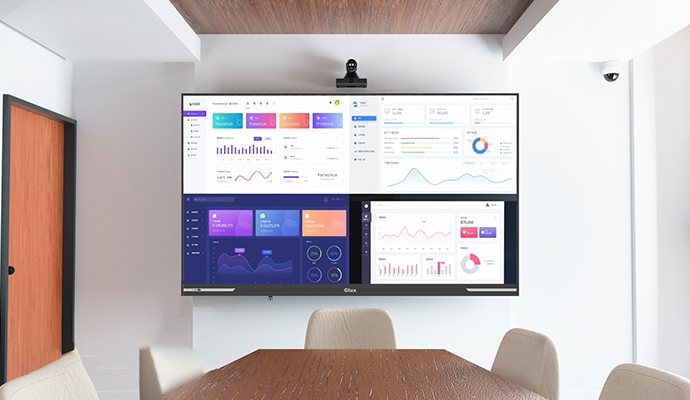

Corporate boardrooms
Any location a large display is used
Item
Pixel Pitch (mm)
Size (mm)
Weight (Kg)
Avg. /Max. Power (Kw)
Installation Method
Screen Diagonal (inches)
Screen Size (WxH) (mm)
Physical Resolution
Display Colors
Refresh Rate
Contrast Ratio (typ)
Brightness
Viewing Angle (H/V) (°)
Viewing Distance
Use Space
Operating Temperature
Working Humidity
GPU
RAM / ROM
OS
iATII110-FHD
P1.26
2430.2x1481.3x61 (non-touch) 2463.2x1497.8x70.3 (touch)
≤104
0.85; 1.5
Stand/Wall Mount
110 (16:9)
2420x1361
1920 (H) x 1080 (V)
10bit, 1.07Billion
3840 Hz
8000:1
100~500nit Adjustable
160; 140
≥2m
20㎡~40㎡
-20℃~40℃
10%~80% RH
ARM Mali-G51
4G; 32G
Android 8.0
iATII136-FHD
P1.575
3035x1821.5x61 (non-touch) 3068x1838x70.3 (touch)
≤154
1.05; 2
Stand/Wall Mount
136 (16:9)
3024x1701
1920 (H) x 1080 (V)
10bit, 1.07Billion
3840 Hz
8000:1
100~500nit Adjustable
160; 140
≥3m
40㎡~60㎡
-20℃~40℃
10%~80% RH
ARM Mali-G51
4G; 32G
Android 8.0
iATII165-FHD
P1.89
3639.8x2161.7x61 (non-touch)
≤218
1.25; 2.4
Wall Mount
165 (16:9)
3629x2042
1920 (H) x 1080 (V)
10bit, 1.07Billion
3840 Hz
8000:1
100~500nit Adjustable
160; 140
≥3.8m
60㎡~90㎡
-20℃~40℃
10%~80% RH
ARM Mali-G51
4G; 32G
Android 8.0
iATII165-4K
P0.945
3672.8x2178.2x70.3 (touch)
≤218
1.25; 2.4
Wall Mount
165 (16:9)
3629x2042
3840 (H) x 2160 (V)
10bit, 1.07Billion
3840 Hz
8000:1
100~500nit Adjustable
160; 140
≥1.5m
60㎡~90㎡
-20℃~40℃
10%~80% RH
ARM Mali-G51
4G; 32G
Android 8.0
iATII220-FHD
P2.52
4849.4x2842.1x56.5 (non-touch)
≤342
1.9; 4.3
Wall Mount
220 (16:9)
4839x2722
1920 (H) x 1080 (V)
10bit, 1.07Billion
3840 Hz
8000:1
100~500nit Adjustable
160; 140
≥5m
90㎡~120㎡
-20℃~40℃
10%~80% RH
ARM Mali-G51
4G; 32G
Android 8.0
iATⅡ220-4K
P1.26
4849.4x2842.1x56.5 (non-touch)
≤342
1.9; 4.3
Wall Mount
220 (16:9)
4839x2722
1920 (H) x 1080 (V)
10bit, 1.07Billion
3840 Hz
8000:1
100~500nit Adjustable
160; 140
≥2m
90㎡~120㎡
-20℃~40℃
10%~80% RH
ARM Mali-G51
4G; 32G
Android 8.0
