High Refresh Rate & High Brightness

Crystal-clear, high-refresh, high-brightness display with rich detail in every
frame.
HIGHLIGHT FEATURES

> Black Screen Energy Saving

High Refresh Rate & High Brightness

High-efficiency Heat Dissipation

> Creative Shapes

IP66 Front & Rear

User-friendly Handle

Fire Resistant [ UL94-V0 Compliant PC Material ]

Message

Product Highlights

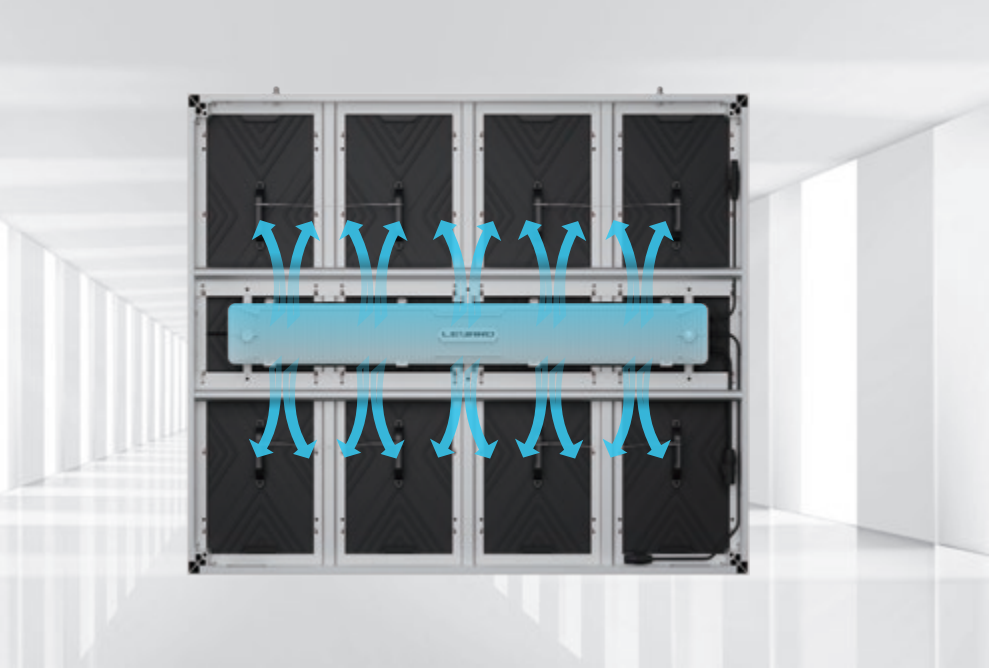

High-efficiency Heat Dissipation

> The power box employs an extensive rear heatsink for effective passive
cooling in a fanless design
> This separate power box guarantees the thermal stability and
performance of the display module

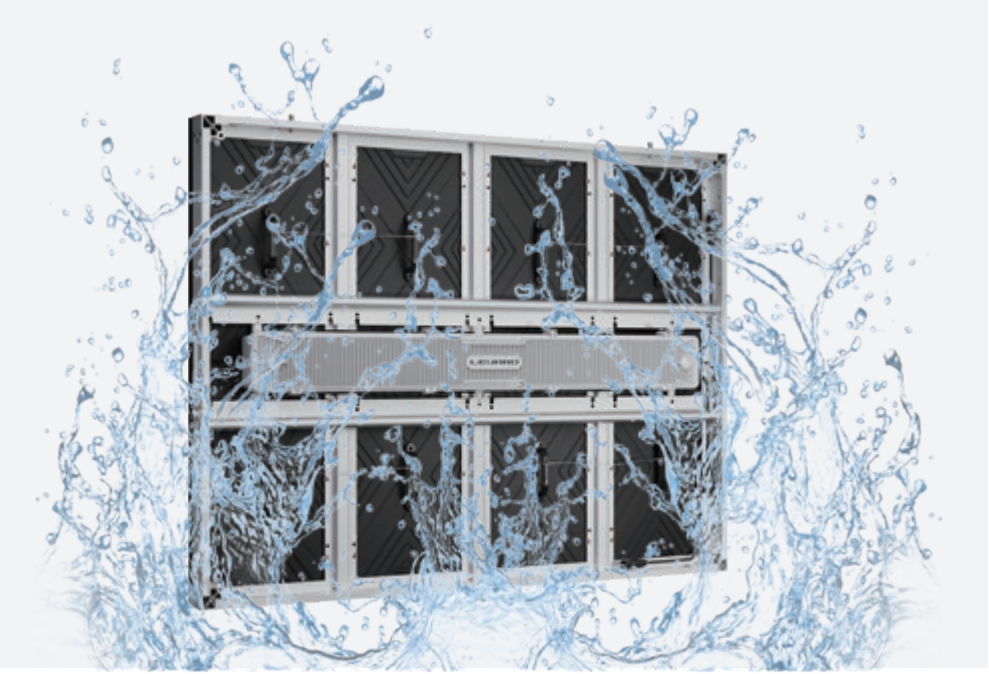

IP66 Front & Rear

LA-2 delivers durable performance even under extreme environments such
as dust, heavy rain, salt spray, and high humidity.

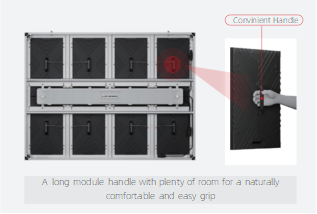

User-friendly Handle

Ergonomically designed module handles ensure easy and comfortable
module handling.

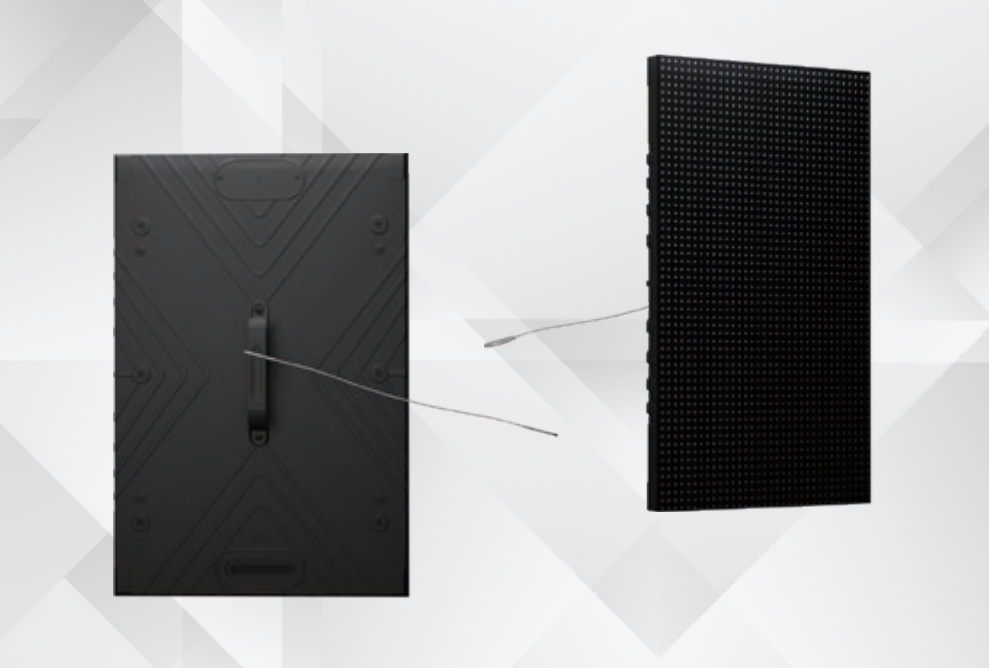

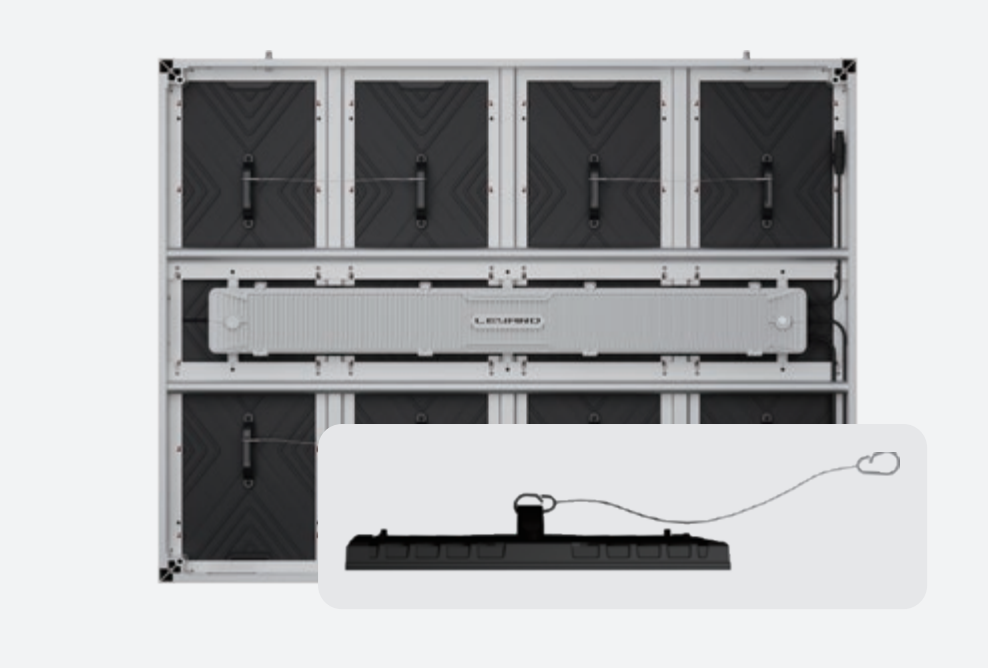

Standard Curved Cabinet

Each module comes with a standard safety line to ensure secure outdoor
installation.

Fire Resistant [ UL94-V0 Compliant PC Material ]

The mask and back shell are molded with UL94-V0 PC material, offering the
highest flame retardancy rating.

Solution

Engineered for superior outdoor performance, Leyard LA-2 Series delivers brilliant high-brightness visuals while achieving remarkable energy efficiency.

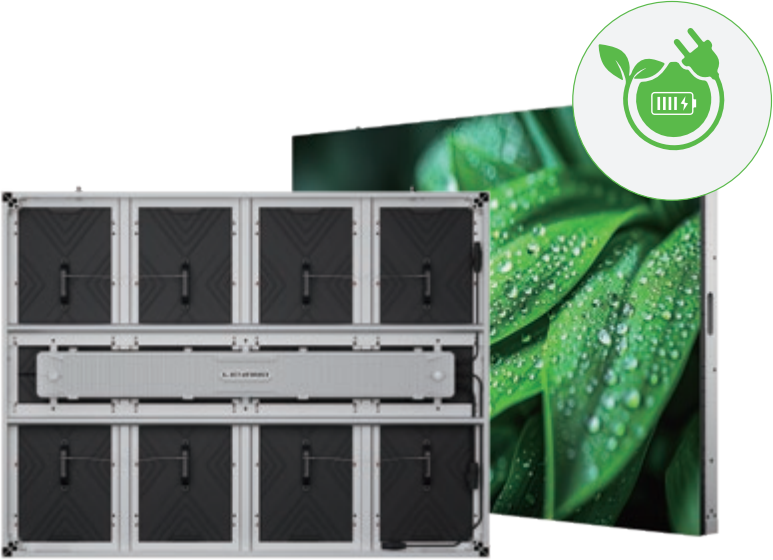

 Its intelligent black-screen energy saving technology automatically minimizes power consumption during content pauses. Built to withstand harsh environments, the display features complete IP66 protection against dust and water, coupled with fire-resistant and safe modules for maximum reliability. With its high refresh rate ensuring smooth content playback, LA-2 Series provides a sustainable, high-impact visual solution perfect for 24/7 digital signage, events, and challenging outdoor installations.

Application

Commercial Street

Shopping Mall

Office Building

Sports Events

Train Station

Pedestrian Street

Subway Station

Central Park

See More
Specifications
LA4S-2
LA6S-2
LA8S-2
LA10S-2

Parameter

LED Configuration

Pixel Pitch

Module Resolution (WxH)

Module Size(mm) (WxH)

Module Composition (WxH)

Cabinet Resolution (WxH)

Cabinet Weight (Kg/cabinet)

Refresh Rate (Hz)

Lifespan (h)

Operating Temperature Range (℃)

Storaging Temperature Range (℃)

LA4S-2

SMD

4.4

72x108

320x480

4x2

288x216

29

≥11520

100,000

-30~55

-40~60

LA6S-2

SMD

6.6

48x72

320x480

4x2

192x144

28.5

≥15360

100,000

-30~55

-40~60

LA8S-2

SMD

8

40x60

320x480

4x2

160x120

28.5

≥15360

100,000

-30~55

-40~60

LA10S-2

SMD

10

32x48

320x480

4x2

128x96

28.5

≥15360

100,000

-30~55

-40~60

Remark: Above data is subject to change without prior notice
