CARBON LIGHT FLOOR LED DISPLAY

CLF series floor screen LED display utilizes aluminum process for the light, thin structure with high performance and better competitive cost.
PRO FEATURES

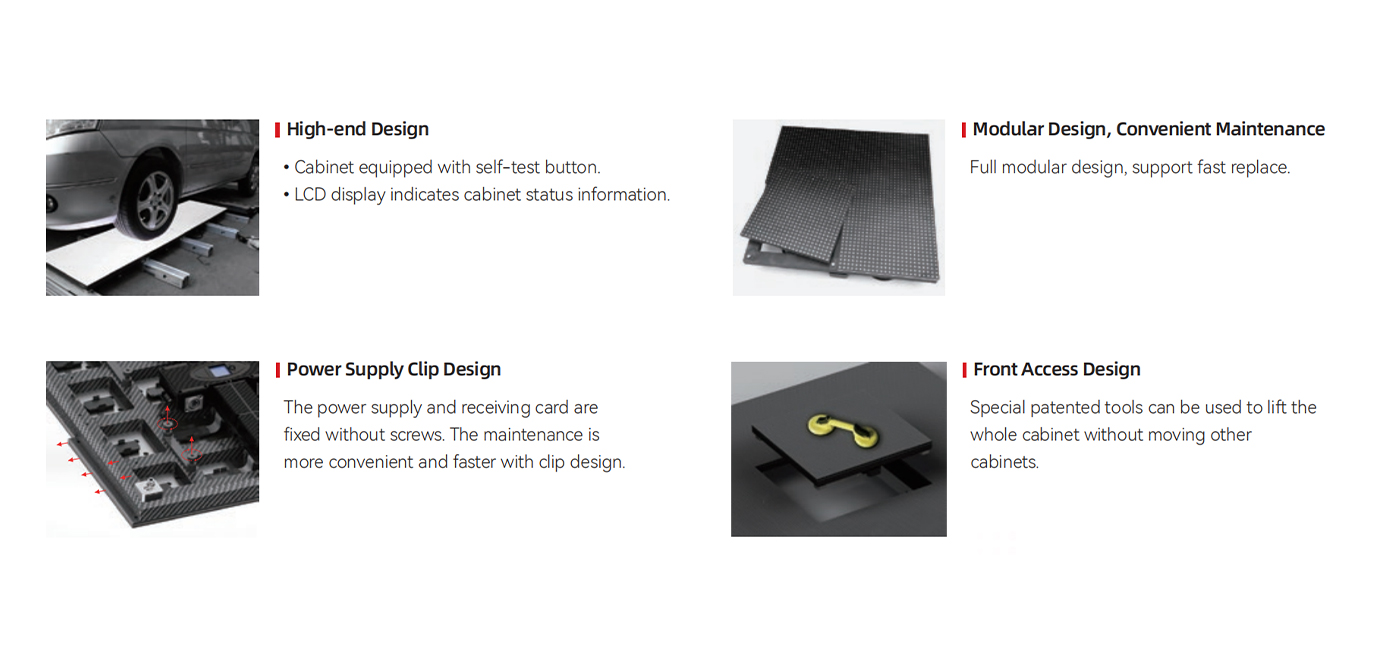

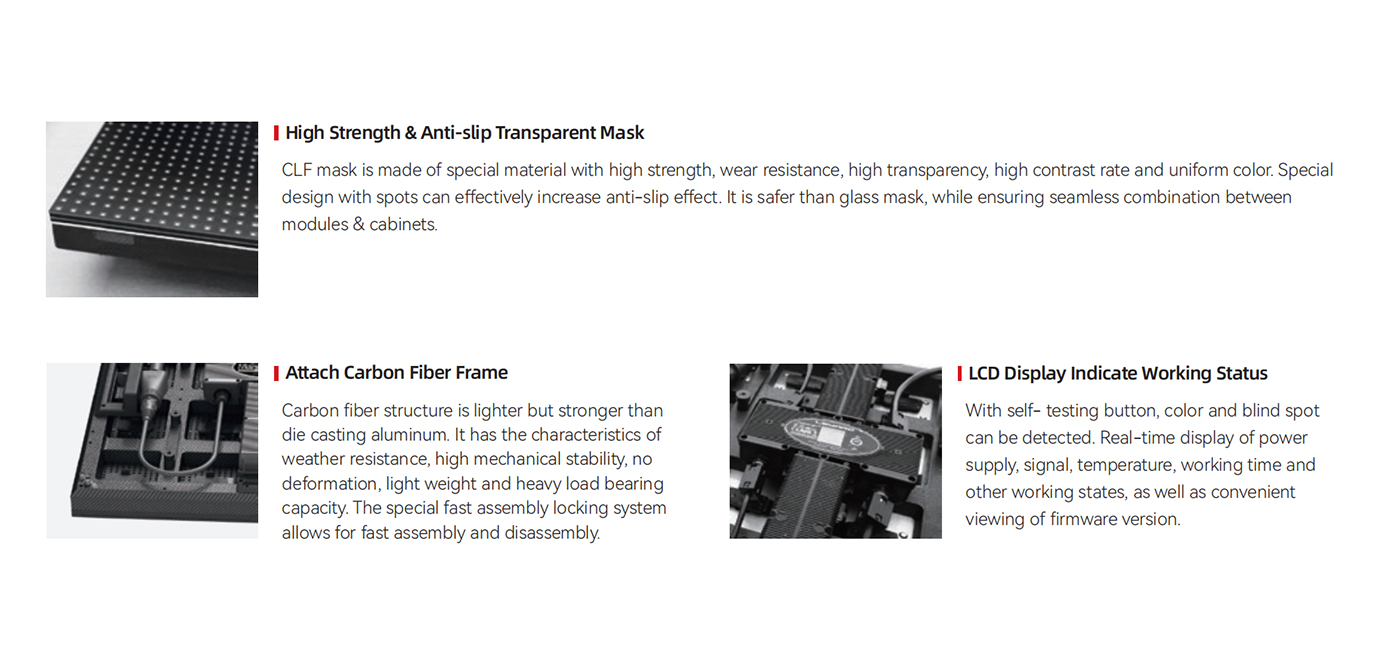

High Strength & Anti-slip Transparent Mask

- Attach Carbon Fiber Frame High-end Design

LCD Display Indicate Working Status

Modular Design, Convenient Maintenance

Power Supply Clip Design

Message

Product Highlights

Solution

CLF Series adopts thickened aluminum plate structure, with stronger compression resistance, and cooperates with elastomer buffer structure to reduce vibration and impact noise. Meanwhile, it integrates edge protection to effectively protect edge collision. The design of double air ducts+high efficiency heat dissipation strip greatly improves the heat dissipation effect and stability.

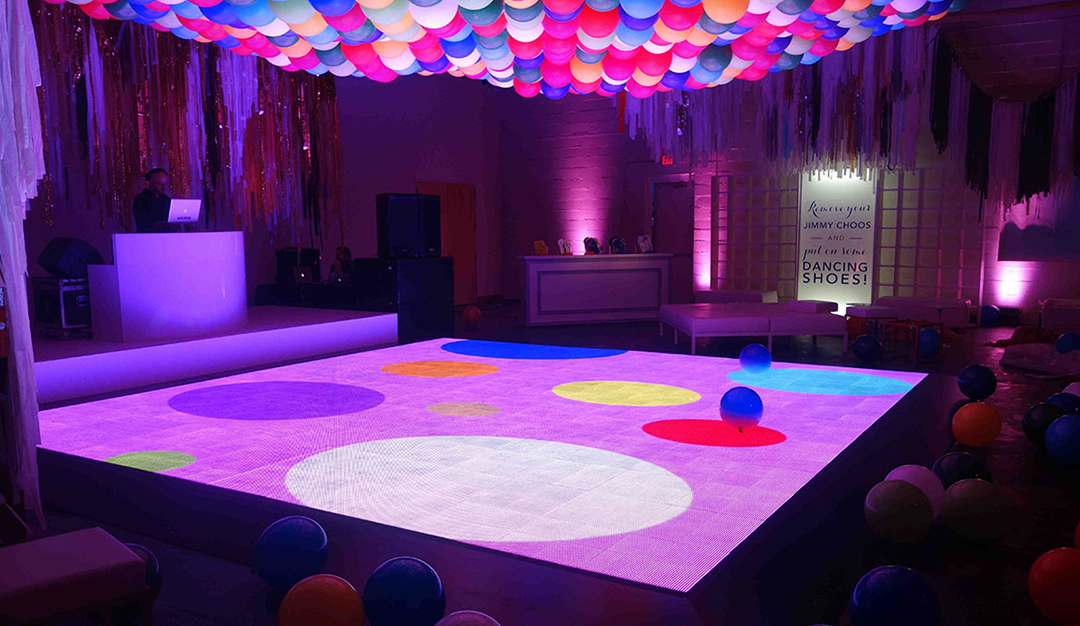

Application

Stage Show

Concert Live

Celebrations

Conferences

Sports Event

Exhibition

See More
Specifications
CLF1.9-M3 (Mask option)
CLF1.9-M3 (GOB)
CLF2.6-M3 (Mask option)
CLF2.6-M3 (GOB)
CLF3.9-M3 (Mask option)
CLF3.9-M3 (GOB)

Item

Pixel Pitch(mm)

Pixel Density (pixels/m²)

Panel Resolution (pixels)

Panel Dimension(W x H x D/mm)

Panel Weight (kg/panel)

Module Quantity / cabinet

Module size (WxH/mm)

Brightness Max (cd/m²)

Contrast Ratio

Refresh Rate

Working Voltage

Cabinet Structure Material

Maintenance

Vertical Weight Capacity(Kg)

CLF1.9-M3 (Mask option)

1.95

65536

256x256

500 x 500 x 82

8.5

4pcs

250x250

500

3000:1

≥3840Hz

100-240V AC, 50/60Hz

Carbon Fiber

Front

2000kg /㎡

CLF1.9-M3 (GOB)

1.95

262144

256x256

500 x 500 x 82

8.5

4pcs

250x250

1000

4000:1

≥3840Hz

100-240V AC, 50/60Hz

Carbon Fiber

Front

2000kg /㎡

CLF2.6-M3 (Mask option)

2.60

147456

192x192

500 x 500 x 82

8.5

4pcs

250x250

500

3000:1

≥3840Hz

100-240V AC, 50/60Hz

Carbon Fiber

Front

2000kg /㎡

CLF2.6-M3 (GOB)

2.60

147456

192x192

500 x 500 x 82

8.5

4pcs

250x250

1000

4000:1

≥3840Hz

100-240V AC, 50/60Hz

Carbon Fiber

Front

2000kg /㎡

CLF3.9-M3 (Mask option)

3.90

65536

128x128

500 x 500 x 82

8.5

4pcs

250x250

500

3000:1

≥3840Hz

100-240V AC, 50/60Hz

Carbon Fiber

Front

2000kg /㎡

CLF3.9-M3 (GOB)

3.90

65536

128x128

500 x 500 x 82

8.5

4pcs

250x250

1000

4000:1

≥3840Hz

100-240V AC, 50/60Hz

Carbon Fiber

Front

2000kg /㎡

Remark: Above data is subject to change without prior notice
