CARBON LIGHT OUTDOOR LED DISPLAY

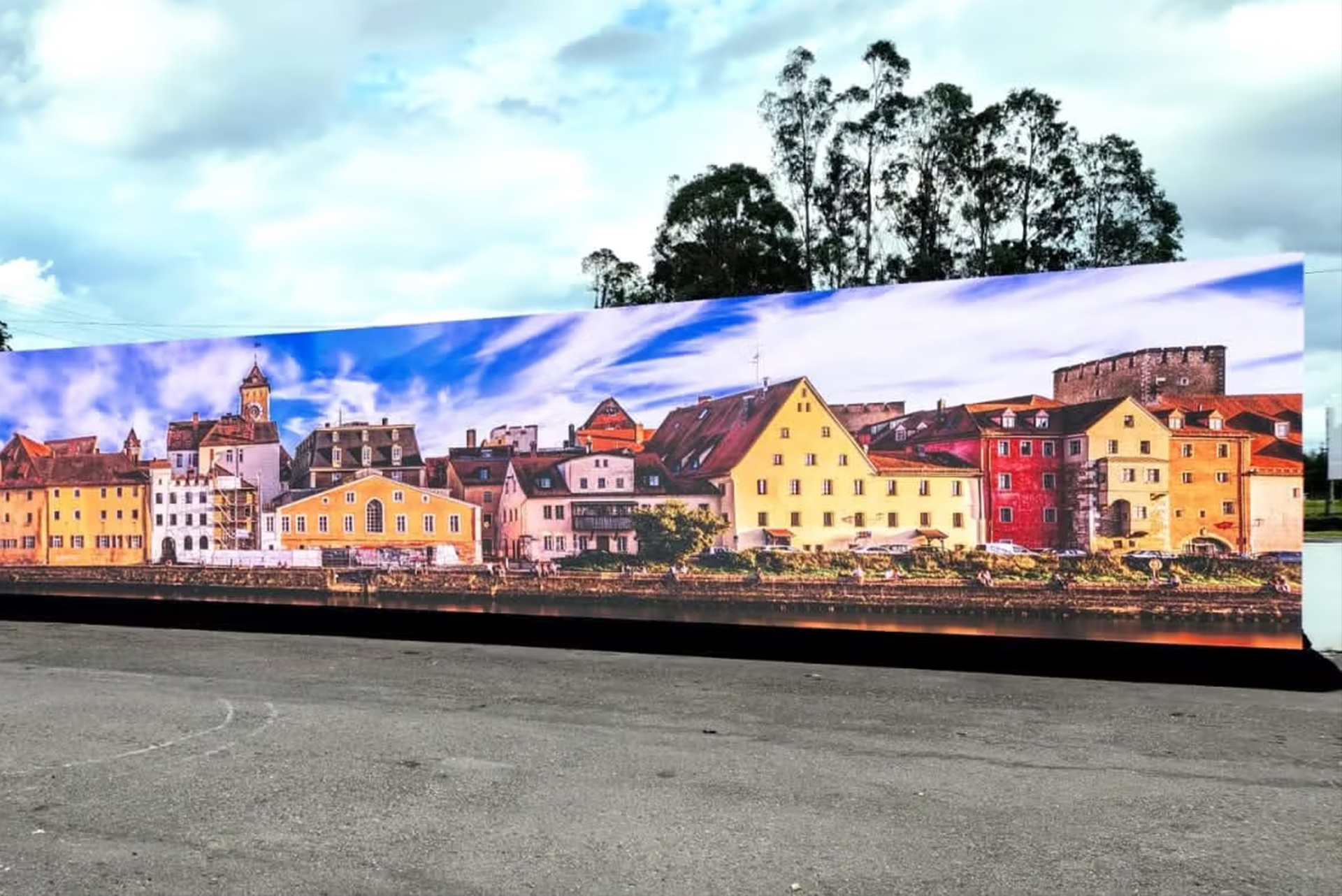

CLO is mainly introduced for outdoor fixed applications, and it is also suitable for rental projects.
PRO FEATURES

Ultra thin,light weigh,convenient transportation and storage

- Fast installation and maintenance with low cost

High tensile strength, support a maximum vertical tension of 1000kg

Support up to 20 meter high hanging installation with simple steel structure

Flexible application for a variety of screen shapes

Message

Product Highlights

Solution

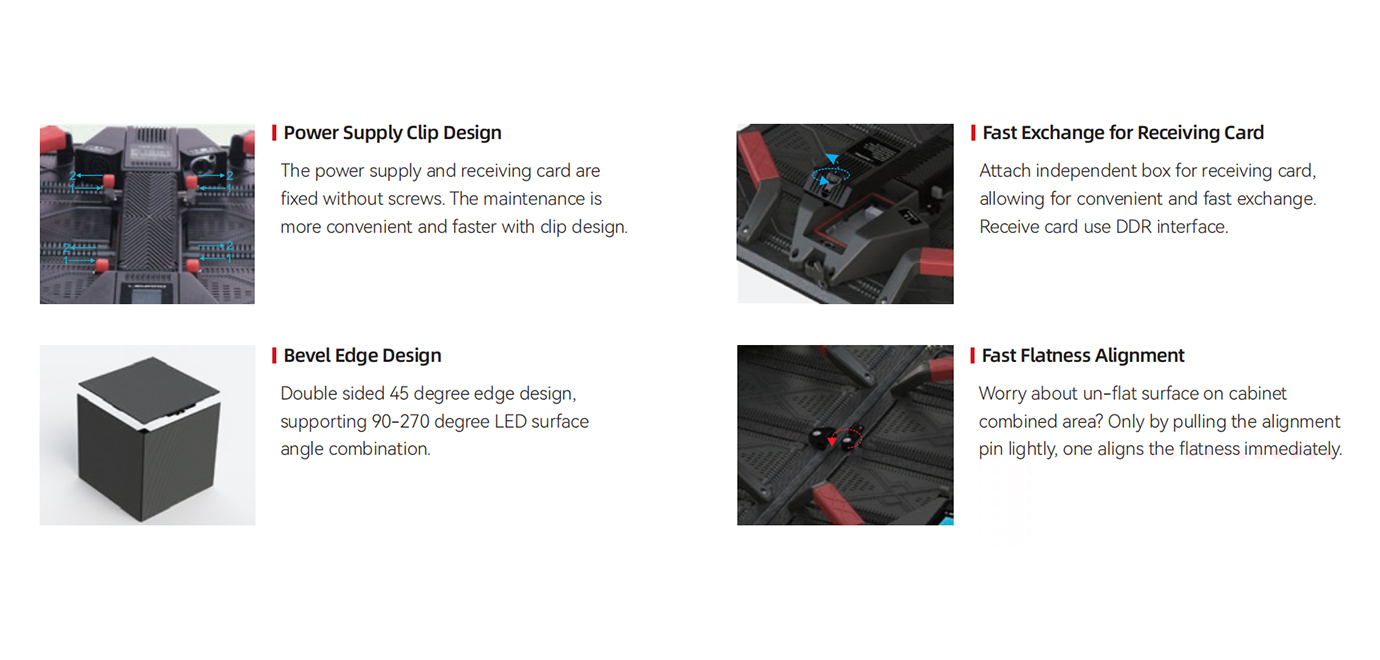

CLO Series has extremely light-weight and thin appearance structure, higher weight load bearing capacity than die-casting aluminum, and excellent heat dissipation performance. It supports redundant signal , modular design, front service, clip design, convenient and fast maintenance. It is widely used in outdoor performances, sports events and the opening and closing ceremonies of large-scale international activities.

Application

Stage Show

Concert Live

Celebrations

Conferences

Sports Event

Exhibition

See More
Specifications
CLO2.9C-M2
CLO3.9-M2
CLO4.8-M2

Item

Pixel Pitch(mm)

Pixel Density (pixels/m²)

Panel Resolution (pixels)

Panel Dimension(W x H x D/mm)

Panel Weight (kg/panel)

Module Quantity / cabinet

Module size (WxH/mm)

Brightness Max (cd/m²)

Contrast Ratio

Refresh Rate

Working Voltage

Cabinet Structure Material

Maintenance

Vertical loading Capacity(Kg)

CLO2.9C-M2

2.97

112896

168x168

500 x 500 x 63

5

8pcs

250x125

4000

4000:1

3840Hz

100-240V AC, 50/60Hz

Carbon Fiber

Front / Rear

FAdock/lock:1000 | AMdock/lock:500

CLO3.9-M2

3.90

65536

128x128

500 x 500 x 63

5

8pcs

250x125

5000

4000:1

3840Hz

100-240V AC, 50/60Hz

Carbon Fiber

Front / Rear

FAdock/lock:1000 | AMdock/lock:500

CLO4.8-M2

4.80

43264

104x104

500 x 500 x 63

5

8pcs

250x125

6000

4000:1

3840Hz

100-240V AC, 50/60Hz

Carbon Fiber

Front / Rear

FAdock/lock:1000 | AMdock/lock:500

Remark: Above data is subject to change without prior notice
