Leyard Designed IC Brand-Assured

Leyard Next-Gen energy-saving driver IC *
Represent the highest level of the industry
55nm+BGA324 package
Internal processing：18bit+10bit

Next-Gen Black Diamond

Substrate-free | surface light source | 30μm

Black area rating 99% | Ultimate Black

Wide viewing angle without color shift，

with a chromaticity viewing angle of 150°

Message

Product Highlights

Cool Screen ≤38℃

When playing video for 2 hours at a brightness of 500nit in a room at a temperature of 25℃

Precision Flatness，Industrial Aesthetics

Unibody Die-Casting - Seamless magnesium alloy construction, durability、abrasion resistance、Impact-resistant, anti-oxidation，diamond-cut；

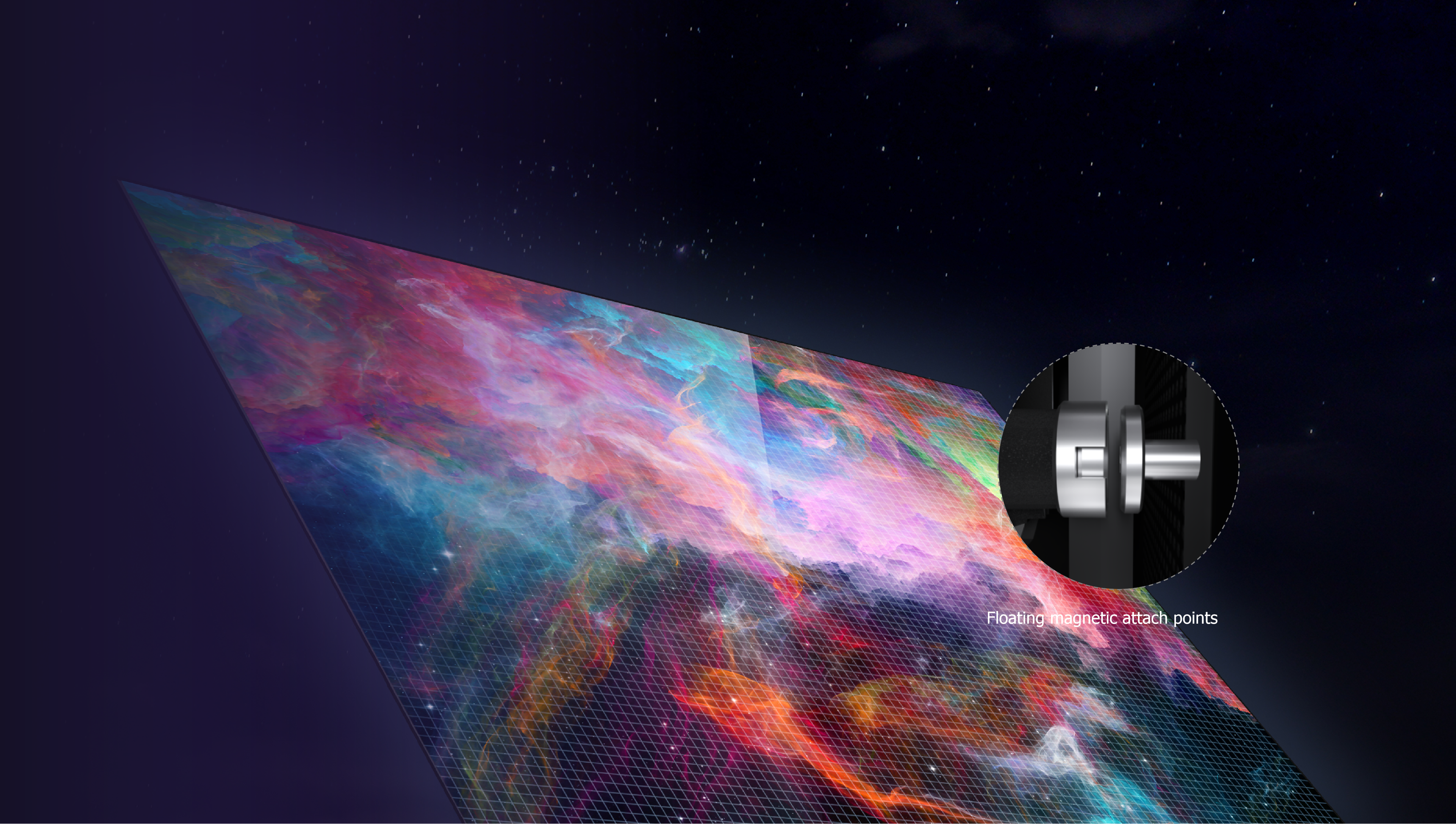

Floating magnetic attach points，there is a certain space gap between the disk and the magnetic column, which not only maintains the magnetic attraction effect but also solves the splicing problem caused by the unevenness of the disk.

Energy Efficiency · Ultra-Low Power

Common-Cathode Constant Current Drive,15% lower power consumption against mainstream power-saving solution

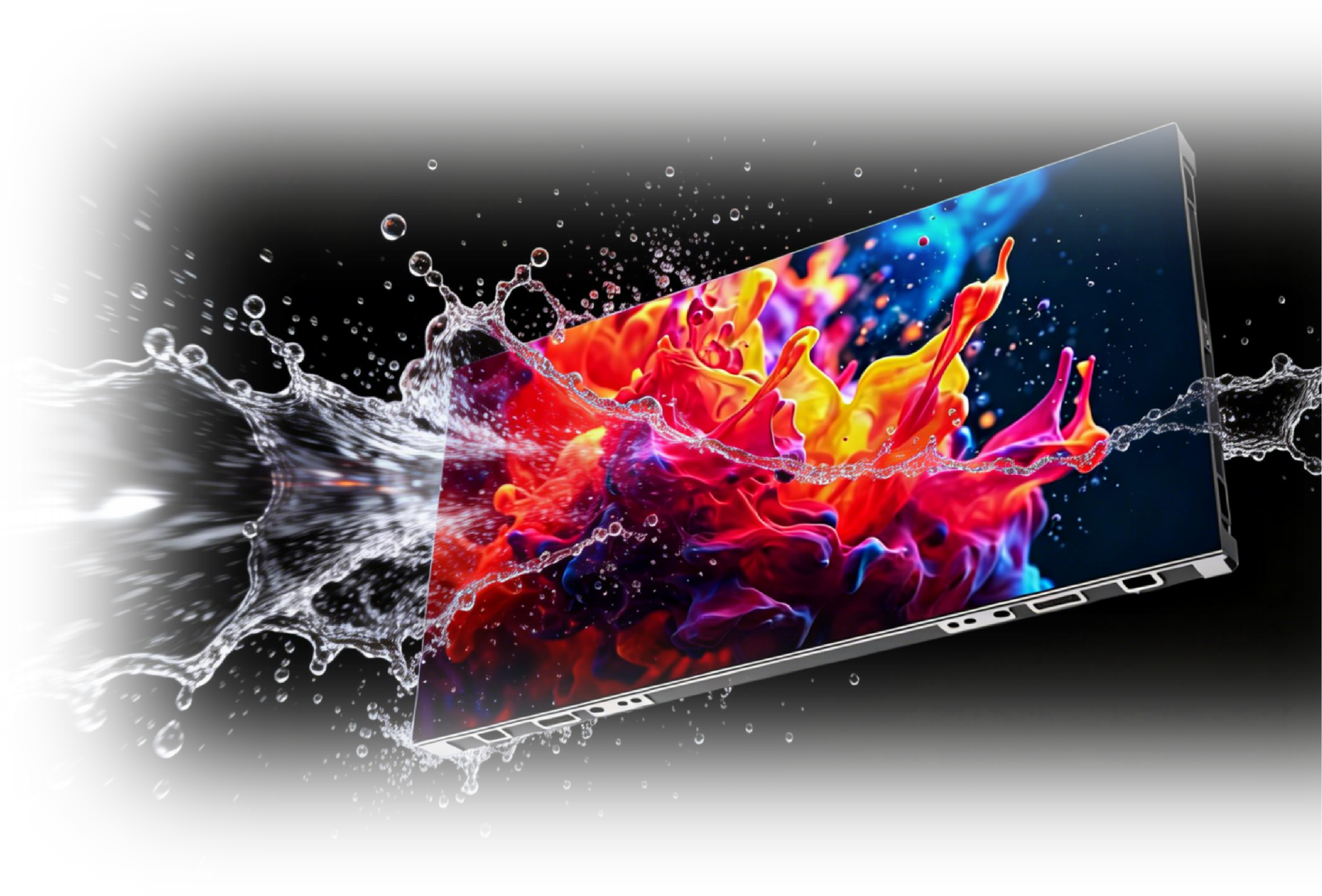

Excellent dust and water resistance, capable of withstanding harsh environments

Self-developed surface optical processing technology reduces surface reflectivity, enhances the blackness of the module, and improves ink color consistency;
Self-developed surface protection technology, waterproof, moisture-proof, dust-proof;
IP65:Protection level of the front side of the module;
4H:Module surface hardness;

Solution

TWH Excellence in Micro, Strength in Core

Application

Product positioning:

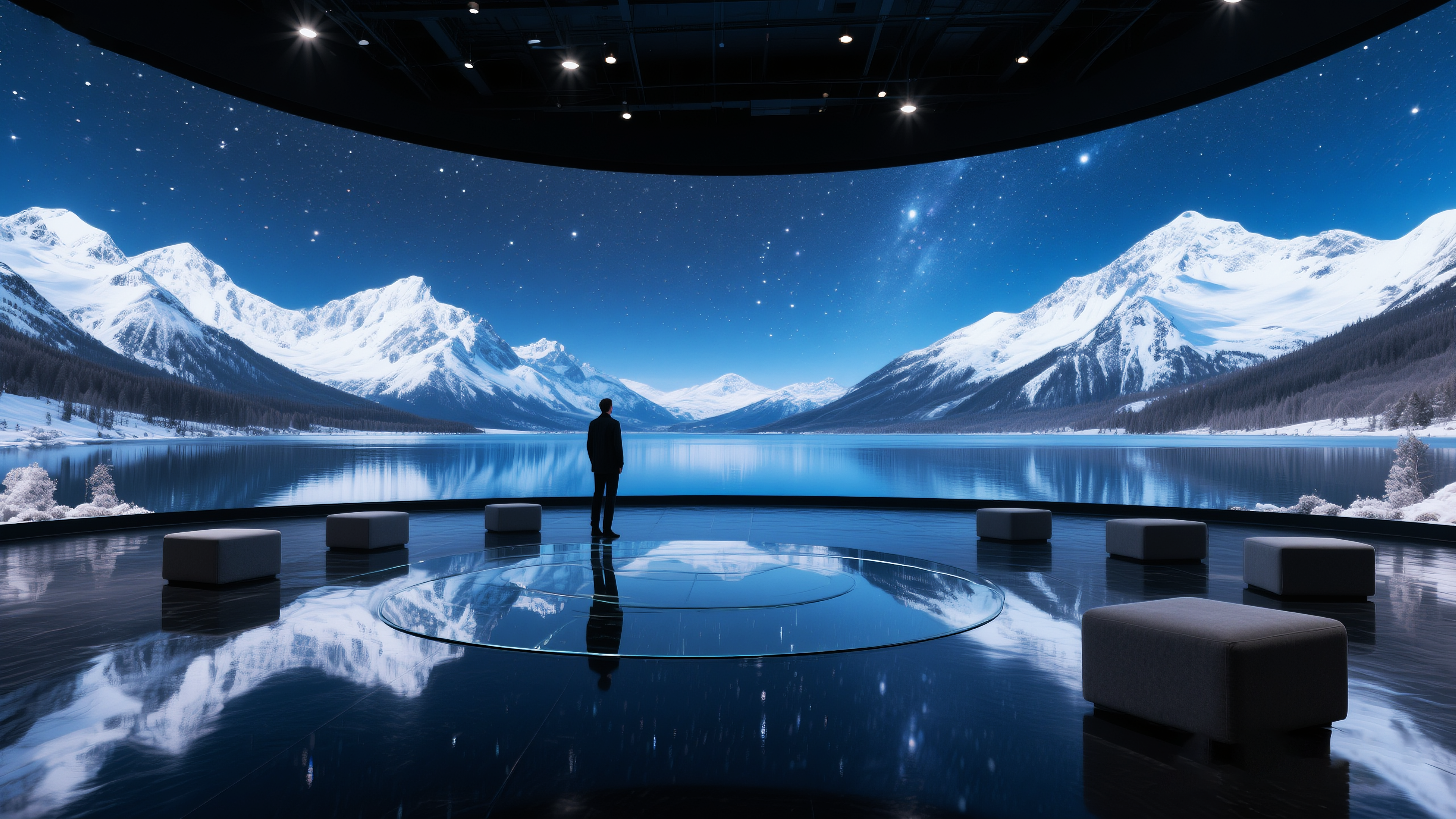

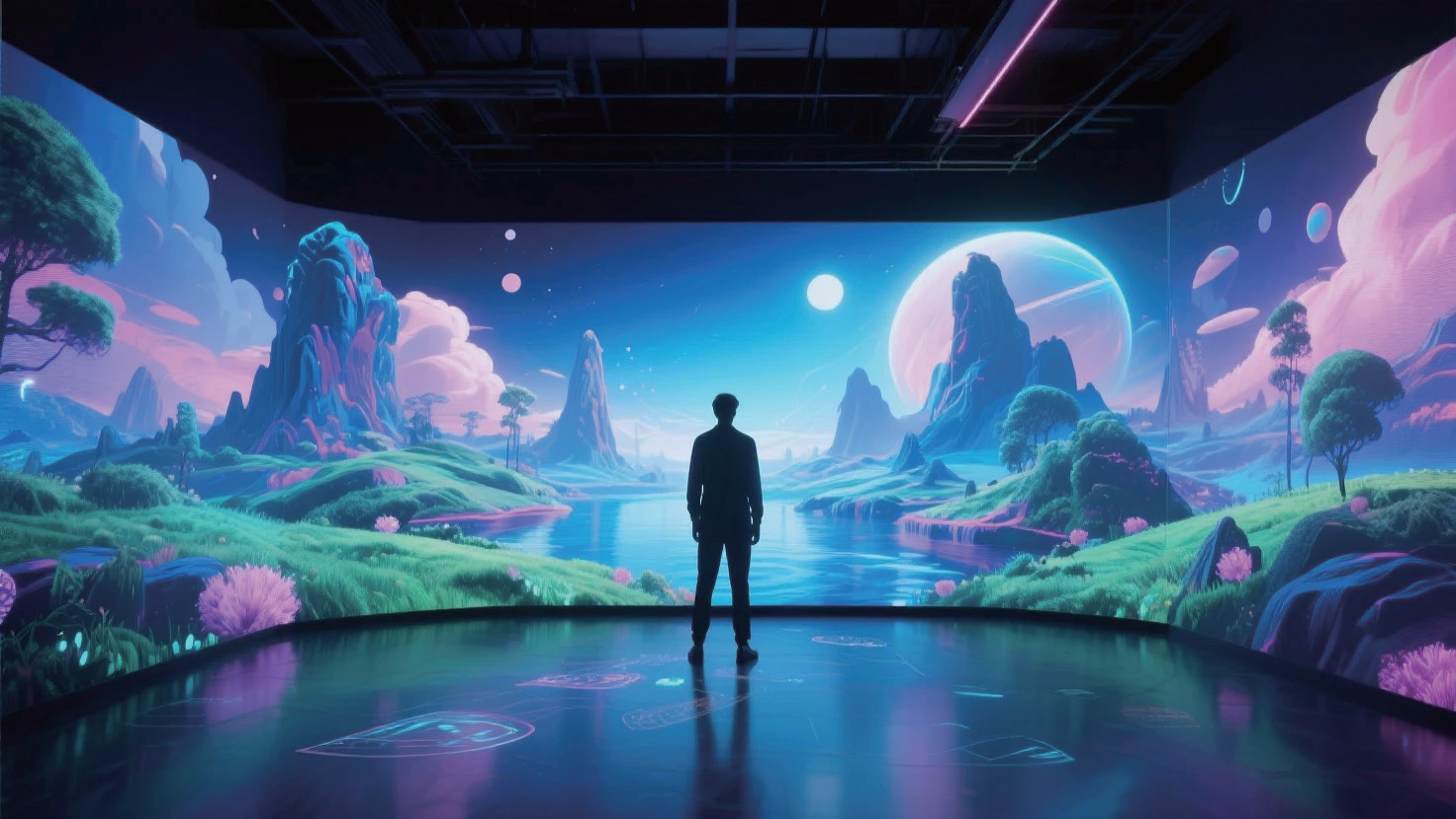

High-end indoor display scenarios

10-second selling point interpretation

1. Ultra-micro chips: Smaller Than Industry Standard

2. 99% ultra-high black area, Extreme black

3. 150° ultra-wide viewing angle, No Color Shift from the Side

4. Low-temperature Cool Screen – No Overheating with Long Use

5. DPR Dual Parallel Redundancy enhances reliability

6. 120Hz high refresh rate, Smooth, No Motion Blur

Specifications

TWH006

TWH007

TWH009

ParameterName/Model
PixelStructure
PixelPitch(mm)
ModuleResolution(W×H)
ModuleSize(WxH,mm)
cabinetModuleComposition(W×H)
CabinetResolution(W×H)
CabinetSize(mm)
PixelDensity(dots/㎡)
ColorTemperature(K)
BrightnessUniformity
Frame Rate(Hz)
Refresh Rate (Hz)
LED Lifespan (hours)
Working Temperature Range (℃)
Storage Temperature Range (℃)

                                                                                TWH006

                                                                                 Hi-Micro

                                                                                0.625

                                                                                240×270

                                                                                150×168.75

                                                                                4*2

                                                                                960×540

                                                                                600×337.5×40.4

                                                                                2,560,000

                                                                                3000—10000adjustable

                                                                                ≥97%

                                                                                60Hz

                                                                                ≥3840

                                                                                100,000

                                                                                -10-40

                                                                                -20-60

                                                                                TWH007

                                                                                 Hi-Micro

                                                                                0.78125

                                                                                192×216

                                                                                150×168.75

                                                                                4*2

                                                                                768×432

                                                                                600×337.5×40.4

                                                                                1,638,400

                                                                                3000—10000adjustable

                                                                                ≥97%

                                                                                120Hz

                                                                                ≥3840

                                                                                100,000

                                                                                -10-40

                                                                                -20-60

                                                                                TWH009

                                                                                 Hi-Micro

                                                                                0.9375

                                                                                160×180

                                                                                150×168.75

                                                                                4*2

                                                                                640×360

                                                                                600×337.5×40.4

                                                                                1,137,778

                                                                                3000—10000adjustable

                                                                                ≥97%

                                                                                120Hz

                                                                                ≥3840

                                                                                100,000

                                                                                -10-40

                                                                                -20-60

Remark: Above data is subject to change without prior notice
