One-click screen energy saving

Activate sleep mode to conserve screen energy

The TWM COB cool screen product is a newly designed common cathode drive fine-pitch display product.

The series includes: TWM007 / TWM009 / TWM012 / TWM015, with an ultra-thin cabinet of 29.5mm;
Cool screen implementation: Common cathode + self-developed film material,Pixel pitch ≥0.9mm,Under 25°C ambient and 600nits brightness,
surface temperature ≤38°C after 2-hour video playback.
The module utilizes floating connections, ensuring quick and easy installation and maintenance;
Supports configurable power backup design based on requirements;
Support cabinet-level 45-degree chamfered splicing;
Support the addition of curved cushion blocks to achieve an internal curvature of 1°-2° between moudule.

Message

Product Highlights

5G Signal More Fast

5G single network cable, stay one step ahead (supports card and power separation)

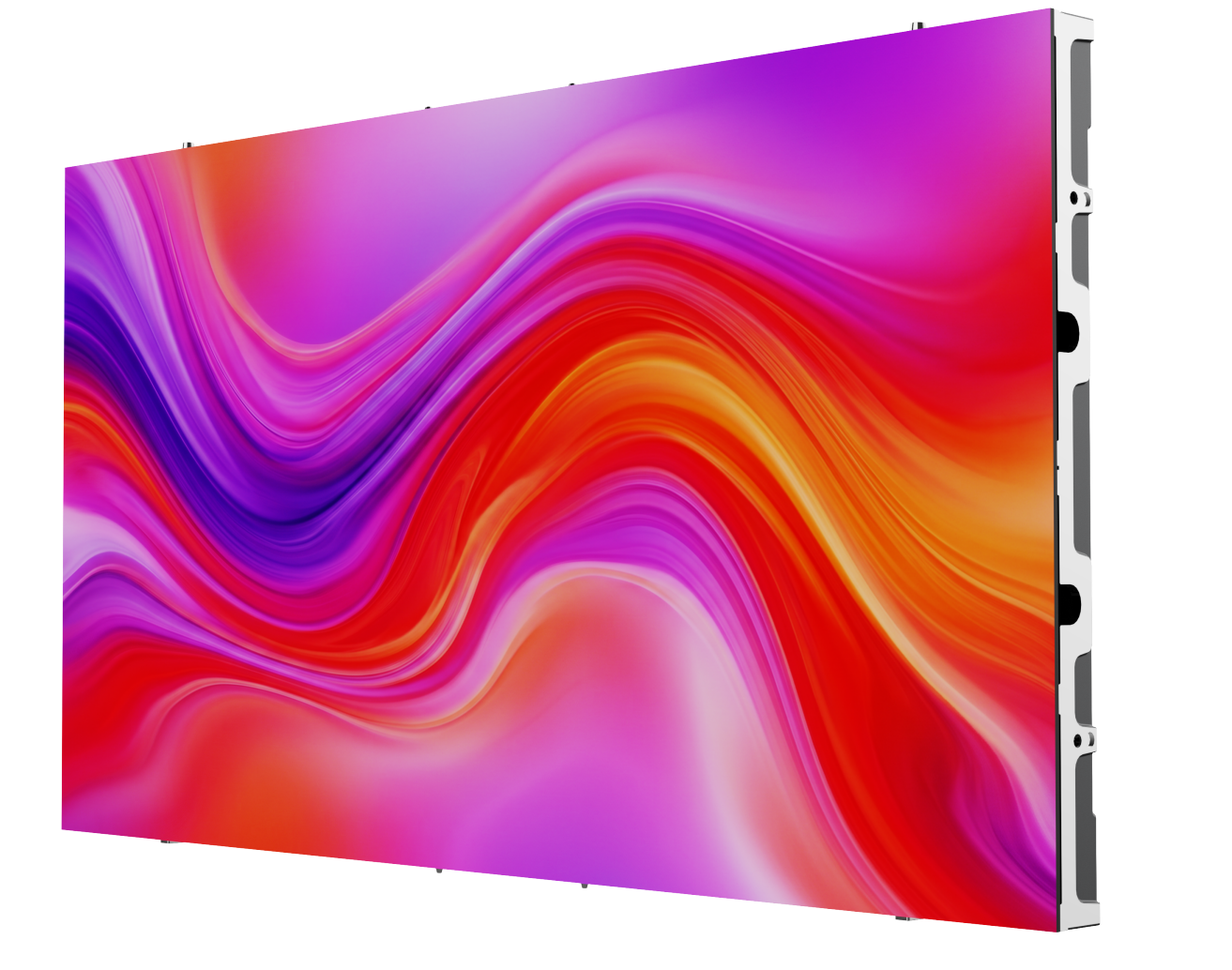

Precision Flatness，Industrial Aesthetics

Unibody Die-Casting - Seamless magnesium alloy construction, durability、abrasion resistance、Impact-resistant, anti-oxidation，diamond-cut；
Floating magnetic attach points，there is a certain space gap between the disk and the magnetic column, which not only maintains the magnetic attraction effect but also solves the splicing problem caused by the unevenness of the disk.

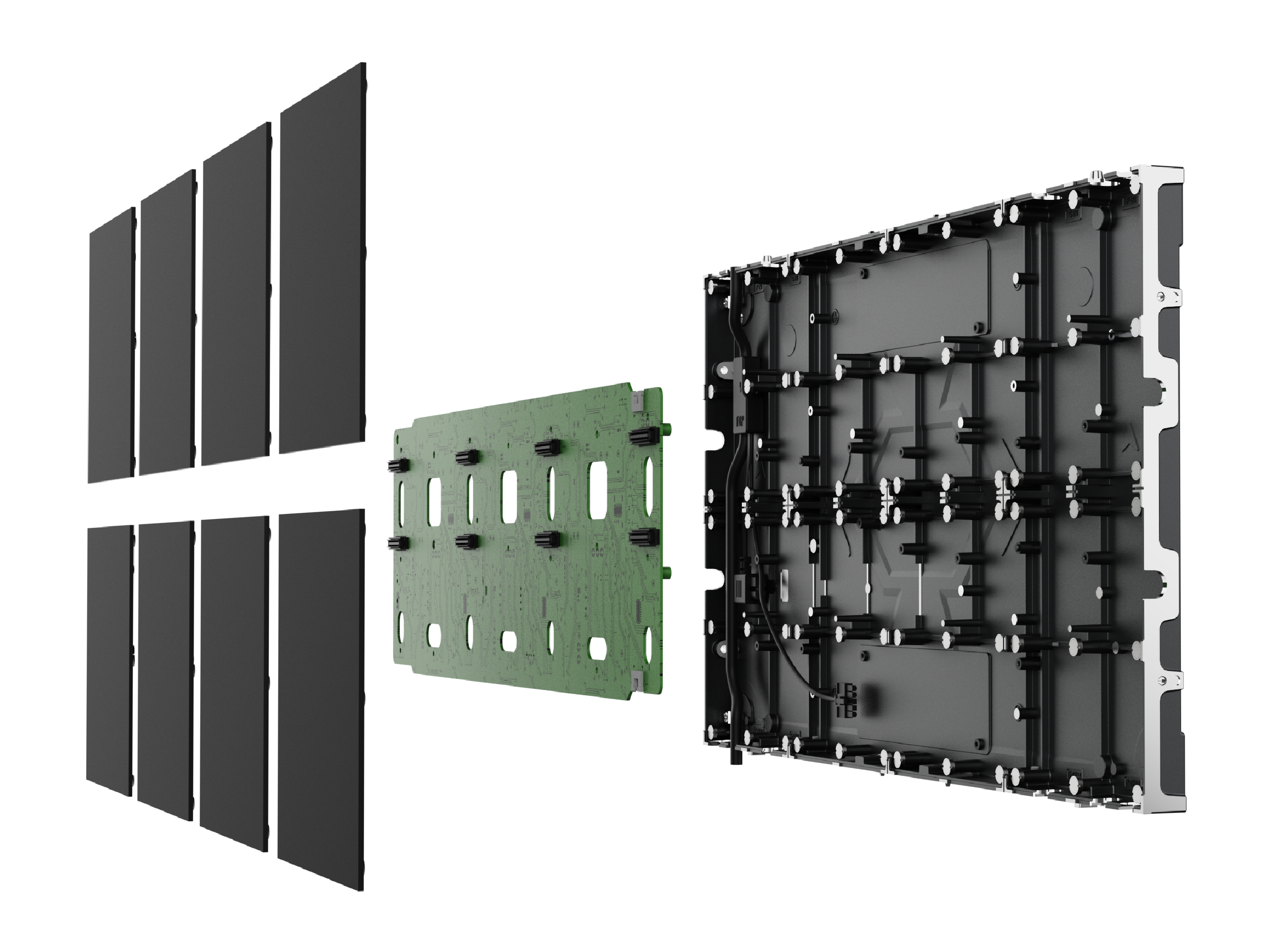

Three-in-one design

The three-in-one design of power supply, receiving card, and adapter board ensures stable and efficient performance

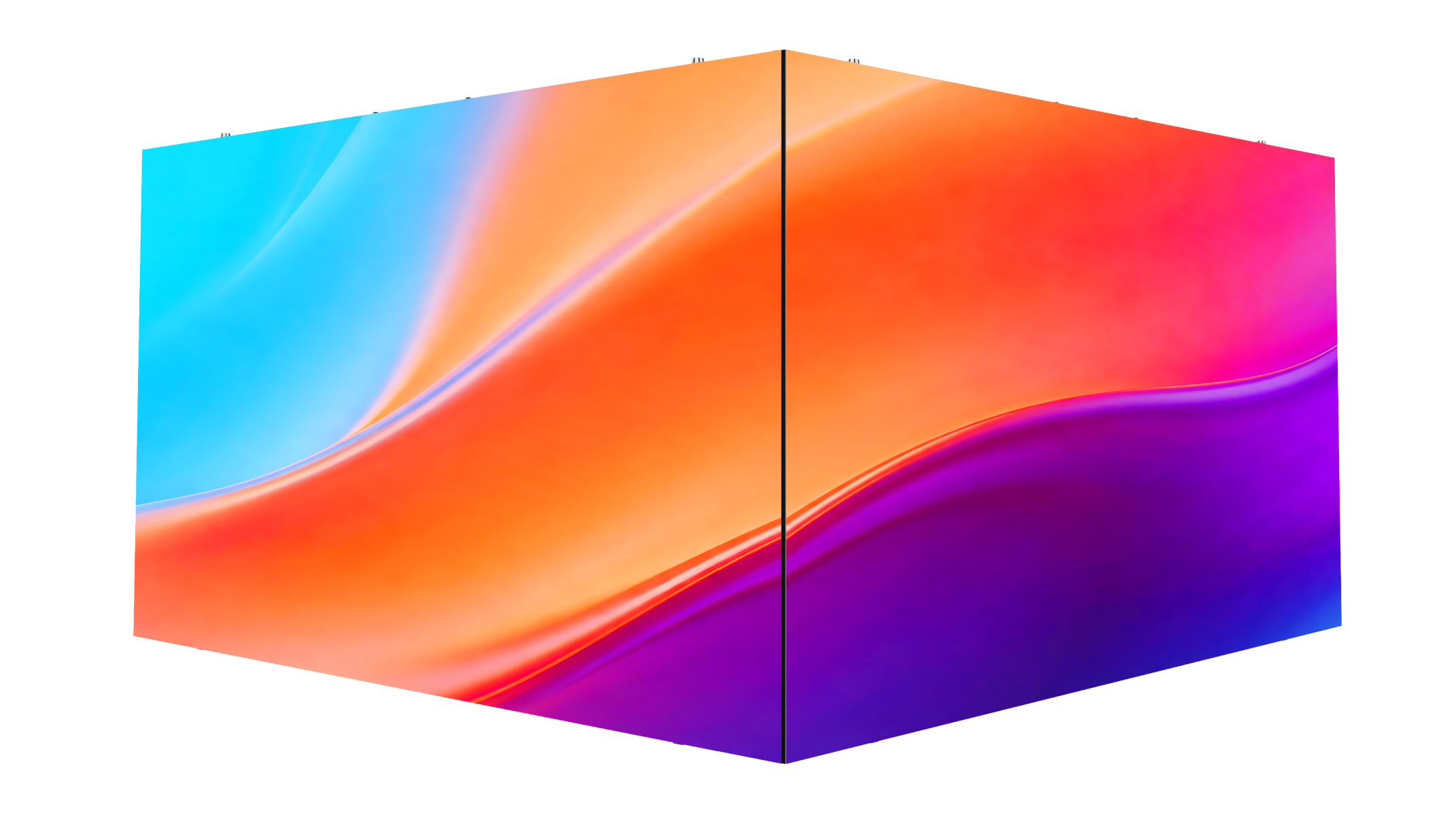

High precision miter-cut splicing

45° miter joints, minimum square pillar side length 600mm

One Button Energy Saving Precise Voltage Control

In black state, the power consumption stays at about 3W per cabinet

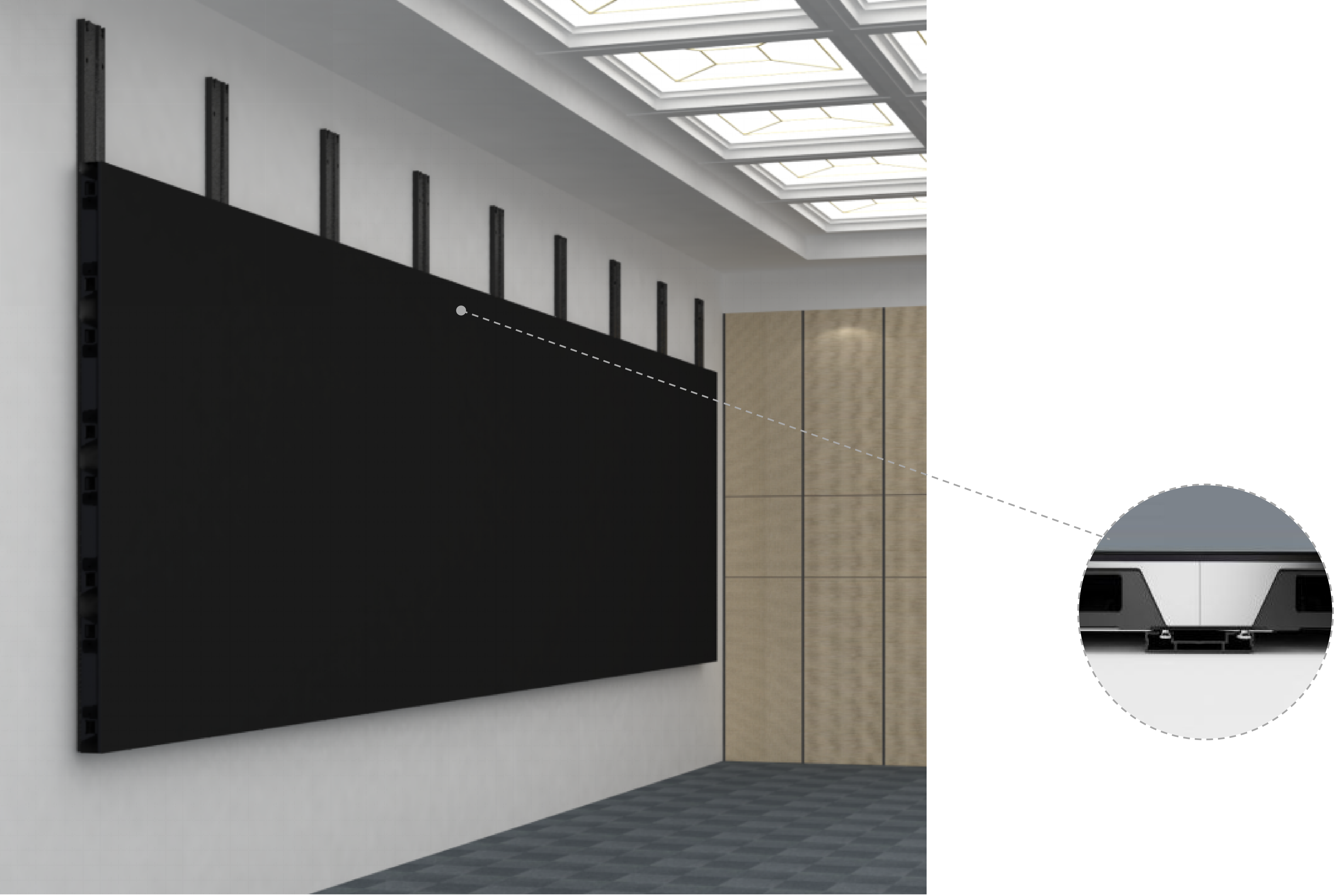

Front access, fast Installation

Multiple installation method, front/rear installation and front access

Solution

Application

Specifications

TWM007

TWM009

TWM012

TWM015

TWM
PixelConfiguration
PixelPitch（mm）
ModuleResolution(dots)
ModuleSize（mm）
CabinetResolution(dots)
PixelDensity(Point/㎡)
CabinetDimension(WxHxD)mm
ColourTemperature,Adjustable(K)
ContrastRatio
RefreshRate(Hz)
Lifetime(hrs)

                                                                                 TWM007

                                                                                 FullFlipChipcob

                                                                                0.78125

                                                                                192*216

                                                                                150*168.75

                                                                                768*432

                                                                                1,638,400

                                                                                600×337.5×29.5

                                                                                 3000~10000Adjustable

                                                                                10000:1

                                                                                3840Hz

                                                                                 100,000

                                                                                TWM009

                                                                                 FullFlipChipcob

                                                                                0.9375

                                                                                160*180

                                                                                150*168.75

                                                                                640*360

                                                                                1,137,778

                                                                                600×337.5×29.5

                                                                                 3000~10000Adjustable

                                                                                10000:1

                                                                                3840Hz

                                                                                 100,000

                                                                                TWM012

                                                                                 FullFlipChipcob

                                                                                1.25

                                                                                120*135

                                                                                150*168.75

                                                                                480*270

                                                                                640,000

                                                                                600×337.5×29.5

                                                                                 3000~10000Adjustable

                                                                                10000:1

                                                                                3840Hz

                                                                                 100,000

                                                                                TWM015

                                                                                 FullFlipChipcob

                                                                                1.5625

                                                                                96*108

                                                                                150*168.75

                                                                                384*216

                                                                                409,600

                                                                                600×337.5×29.5

                                                                                 3000~10000Adjustable

                                                                                10000:1

                                                                                3840Hz

                                                                                 100,000

Remark: Above data is subject to change without prior notice
