FRONT/REAR ACCESS FINE PITCH LED DISPLAY

By utilizing Leyard’s many years experience of fine pitch and adopting the minimalism concept, MG series achieves the
high quality visual performance at a relatively low cost
KEY FEATURES

> HDR Ready                         > 16:9 Aspect Ratio                     > Quick Installation

> Generic Cables                   > Status Diagnostic                     > 6-axis Alignment

> Front/Rear Access              > Floating Connector                  > Easy Maintenance

Message

Product Highlights

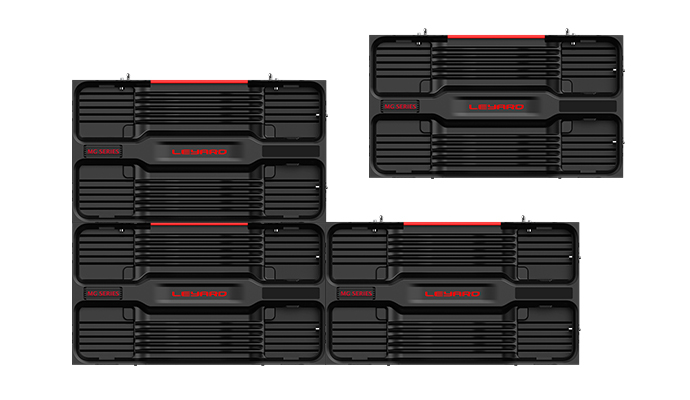

Aluminum Alloy Cabinet

> Aluminum alloy cabinet with high rigidity and high splicing accuracy;
> Magnetic and vacuum tools are optional for maintenance.

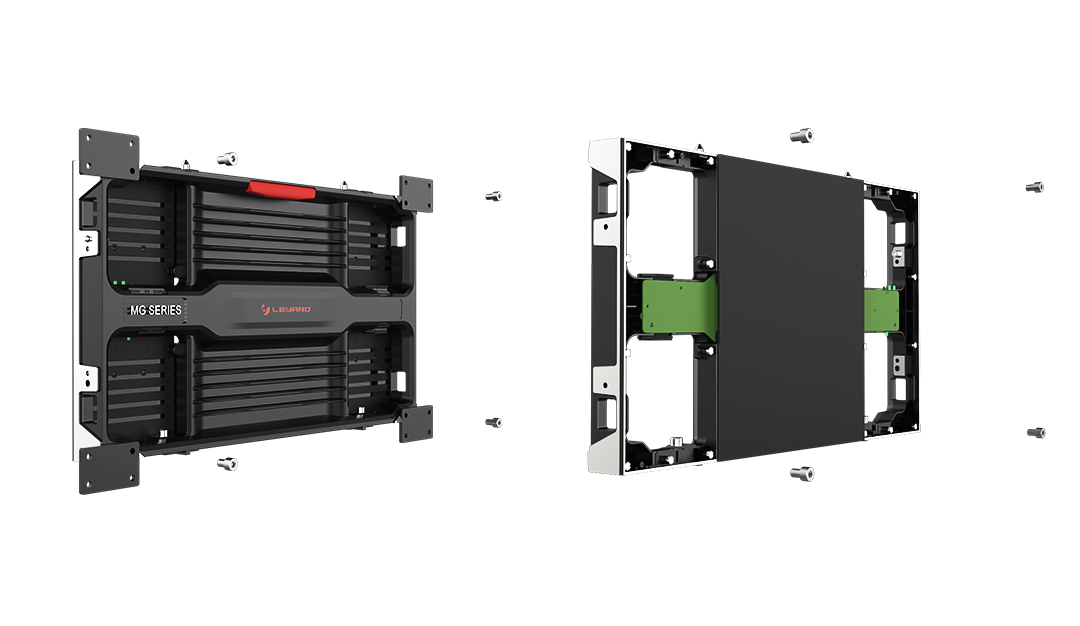

Front / Rear Installation

> Completely front disassembly or rear disassembly;
> Only need to remove two LED modules for easy maintenance.
> Easier rear installation.

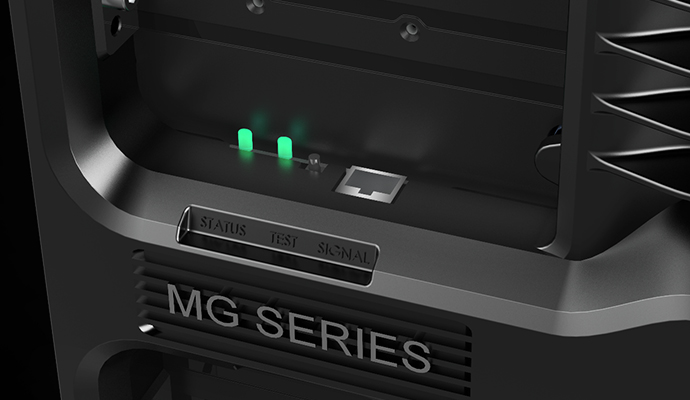

Status Diagnostic

Status indicators and button are in the main frame of the cabinet structure, and can be accessed from both front and back

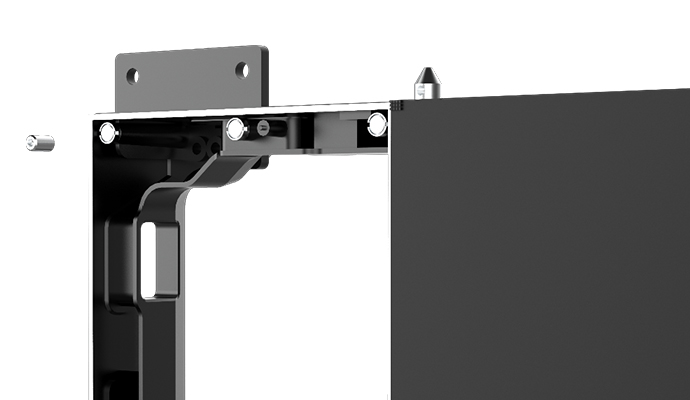

6-axis Alignment

Module can be easily adjusted in Z-direction, and flatness can be optimized again. A uniform tool can be used for X/Y/Z 6-axis adjustment between cabinets.

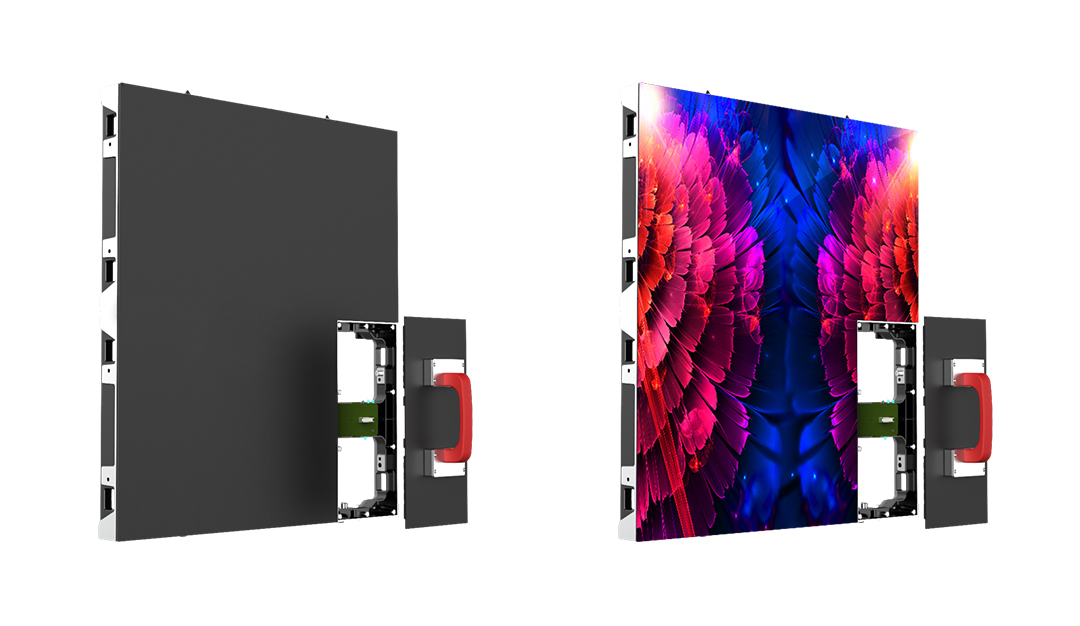

Convenient Maintenance

Module front and rear maintenance, each module has magnetic design making screen seamless.

High Dynamic Range(Optional)

Support HDR function to meet more display requirements.

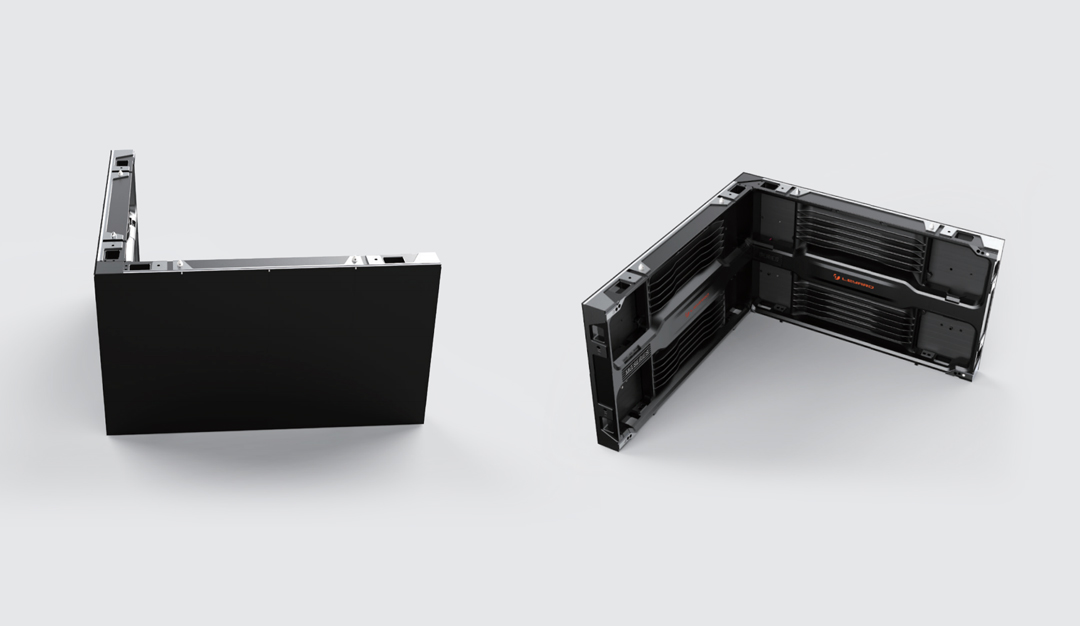

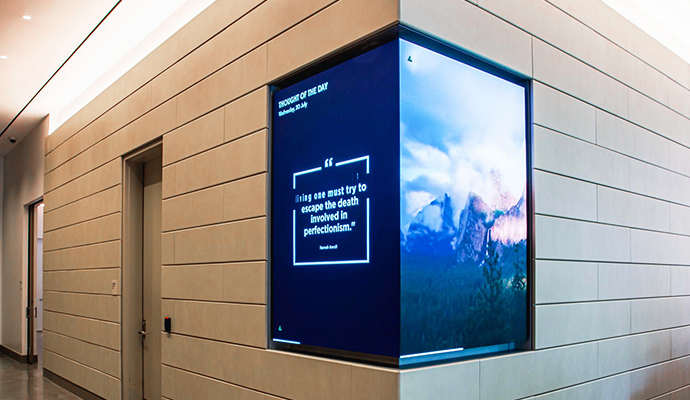

Customizable Right-angle Splicing

A right-angle splicing LED display is needed requirement for achieving a naked-eye 3D display. The shape structure of the LED screen needs to be composed of a right angle or a curved angle at a 90° fold as to increase the difference in depth between our left and right eyes when viewing the picture. We need this type of a set in order to achieve the effect of the image desired.

Customizable Right-angle Splicing

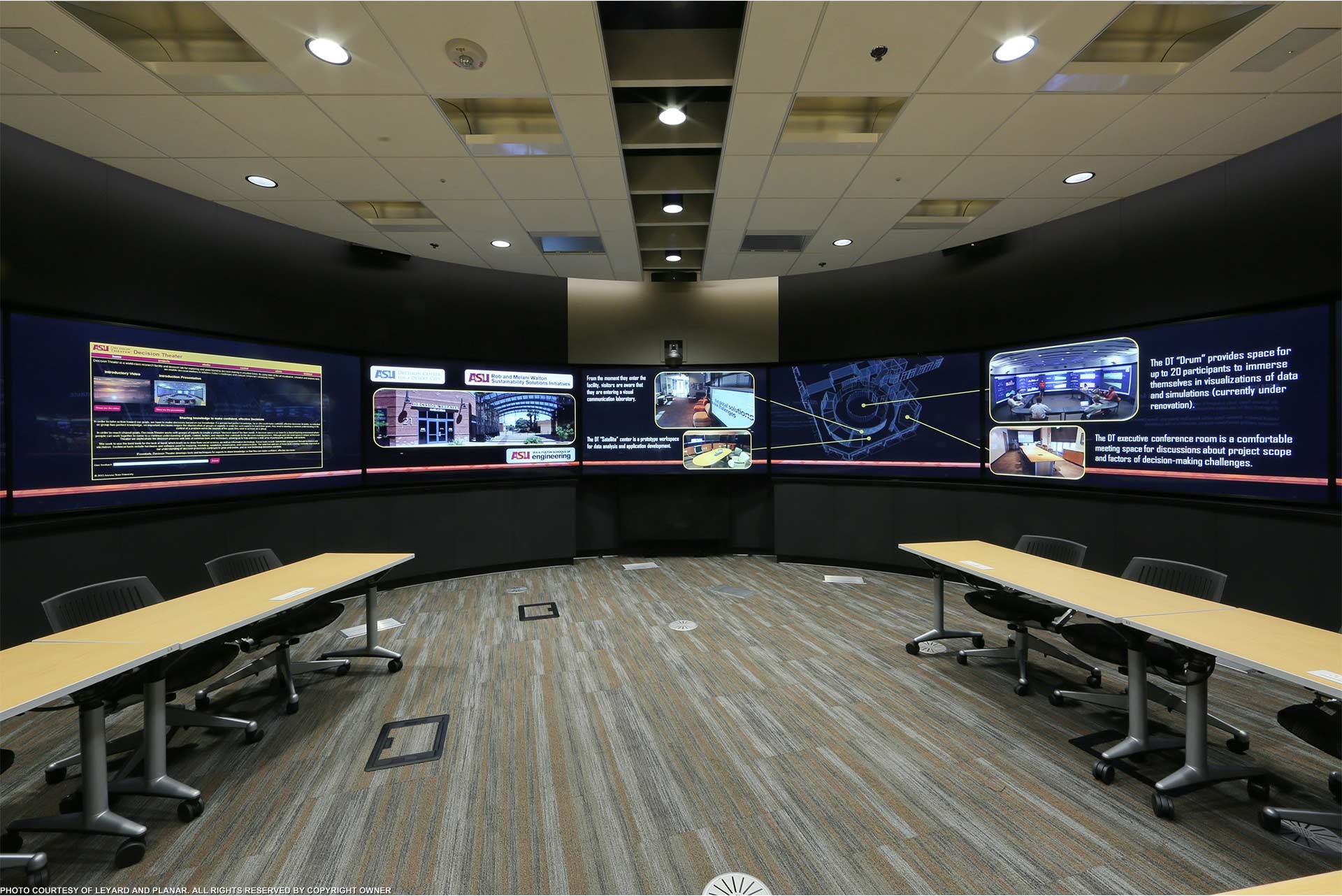

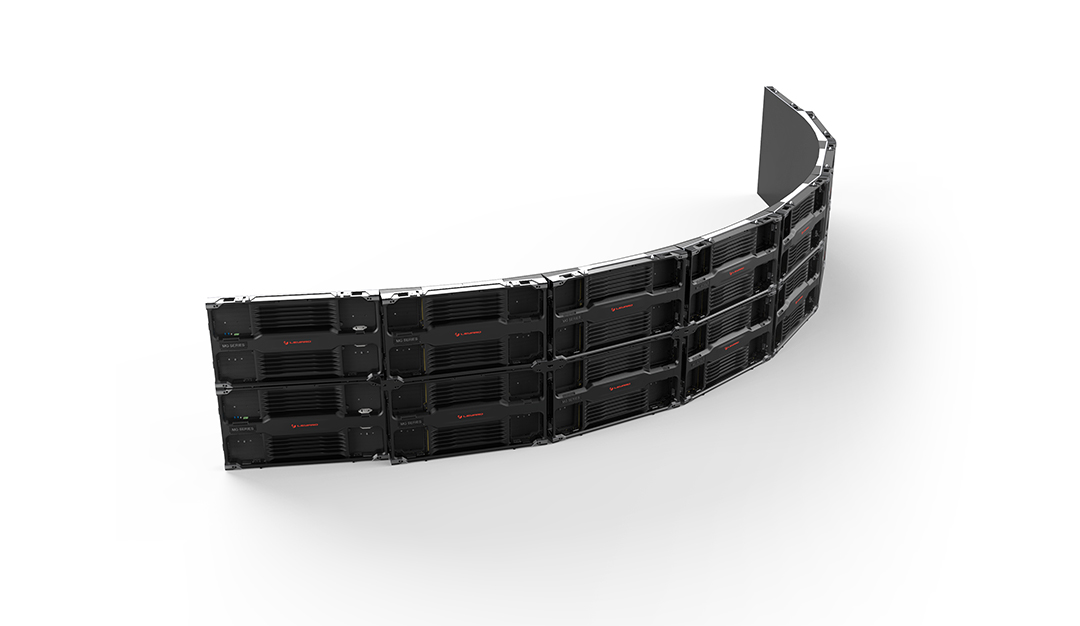

Customizable Concave Splicing

> Angle between modules 0~4.5°
> Max angle between cabinets 18°

Customizable Concave Splicing

Solution

MG series is the new generation fine pitch solution with front/rear access functionality and identical form factor of Leyard TWS series. By utilizing Leyard’s many years experience of fine pitch and adopting the minimalism concept, MG series achieves the high quality visual performance at a relatively low cost. The appearance of the MG series is carefully designed. The key components are well integrated into the compact shape while the heat dissipation is guaranteed. A function diagnostic button and status indicators could also be found on the panel. MG Series realize signal loop feature in default, power & signal redundency optional.

Application

Design Centre

Control Centre

Broadcast

Conference Room

Exhibition Centre

Home Cinema

See More
Specifications
MG009
MG011
MG012
MG015
MG018
MG025
MG009 Microled
MG010 Microled
MG012 Microled
MG015 Microled
MG018 Microled

Item

LED Configuration

Pixel Pitch (mm)

Module Resolution（WxH）

Cabinet Dimension (WxHxD, mm)

Cabinet Area (㎡)

Weight (kg/cabinet; kg/㎡)

Pixel Density (Point/㎡)

Flatness(mm)

IP Level

Brightness (nits)

Color Temperature（K）

Viewing Angle (H/V) °

Power (max; avg)/㎡

Installation

Refresh Rate @60Hz

Operating/Storage Temp(℃)

Operating/Storage Humidity(RH)

MG009

SMD

0.9375

160x360

600x337.5x53

0.2025

6; 30

1137778

≤0.1

IP 30

600~800

3000~10000

160/140

675W; 225W

Front/ Rear

≥3840

-20~40; -30~60

10~90%; 10~80%

MG011

SMD

1.17

128x288

600x337.5x53

0.2025

6; 30

728177

≤0.1

IP 30

600~800

3000~10000

160/140

675W; 225W

Front/ Rear

≥3840

-20~40; -30~60

10~90%; 10~80%

MG012

SMD

1.25

120x270

600x337.5x53

0.2025

6; 30

640000

≤0.1

IP 30

600~800

3000~10000

160/140

675W; 225W

Front/ Rear

≥3840

-20~40; -30~60

10~90%; 10~80%

MG015

SMD

1.5625

96x216

600x337.5x53

0.2025

6; 30

409600

≤0.1

IP 30

600~800

3000~10000

160/140

675W; 225W

Front/ Rear

≥3840

-20~40; -30~60

10~90%; 10~80%

MG018

SMD

1.875

80x180

600x337.5x53

0.2025

6; 30

284444

≤0.1

IP 30

600~800

3000~10000

160/140

675W; 225W

Front/ Rear

≥3840

-20~40; -30~60

10~90%; 10~80%

MG025

SMD

2.5

60x135

600x337.5x53

0.2025

6; 30

160000

≤0.1

IP 30

600~800

3000~10000

160/140

675W; 225W

Front/ Rear

≥3840

-20~40; -30~60

10~90%; 10~80%

MG009 Microled

Micro LED

0.9375

160x360

600x337.5x53

0.2025

6; 30

1137778

≤0.1

IP 30

1200~1500

3000~10000

170/170

470W; 242W

Front/ Rear

≥3840

-20~40; -30~60

10~90%; 10~80%

MG010 Microled

Micro LED

1.05

142x320

600x337.5x53

0.2025

6; 30

897580

≤0.1

IP 30

1200~1500

3000~10000

170/170

455W; 222W

Front/ Rear

≥3840

-20~40; -30~60

10~90%; 10~80%

MG012 Microled

Micro LED

1.25

120x270

600x337.5x53

0.2025

6; 30

640000

≤0.1

IP 30

1200~1500

3000~10000

170/170

455W; 222W

Front/ Rear

≥3840

-20~40; -30~60

10~90%; 10~80%

MG015 Microled

Micro LED

1.5625

96x216

600x337.5x53

0.2025

6; 30

409600

≤0.1

IP 30

1200~1500

3000~10000

170/170

445W; 212W

Front/ Rear

≥3840

-20~40; -30~60

10~90%; 10~80%

MG018 Microled

Micro LED

1.875

80x180

600x337.5x53

0.2025

6; 30

284444

≤0.1

IP 30

1200~1500

3000~10000

170/170

445W; 212W

Front/ Rear

≥3840

-20~40; -30~60

10~90%; 10~80%

Remark: Above data is subject to change without prior notice
