OUTDOOR FINE PITCH LED DISPLAY

MEGA PIXEL, SOLID FOR HARSH APPLICATION
KEY FEATURES

> Micro LED Full Fip Chip                                           > Redundancy Power/ Data

> Eco and Green                                                         > High Contrast

> Front/ Rear Installation                                            > HDR Ready

> IP65                                                                          > Mechnical Safety Lock

> Wide Viewing Angle                                                > Efective Heat Management

> 6 Axis Adjustment                                                    > High Refresh Rat

Message

Product Highlights

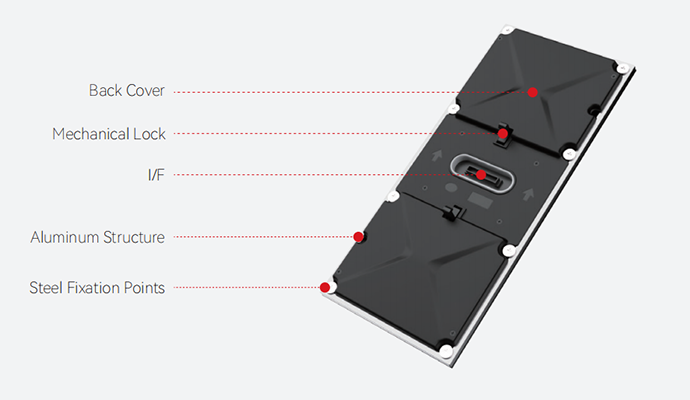

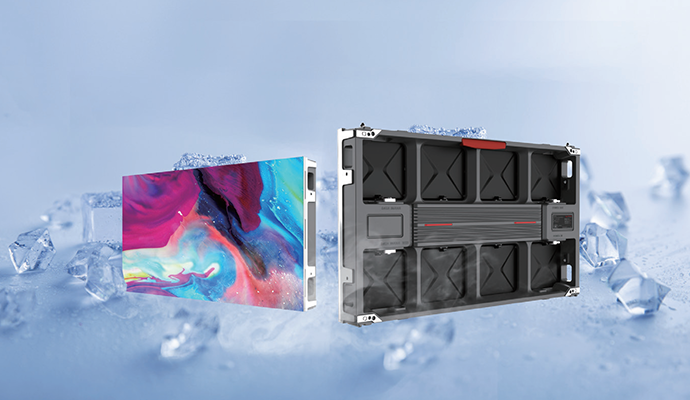

Solid - The Module and the Safety System

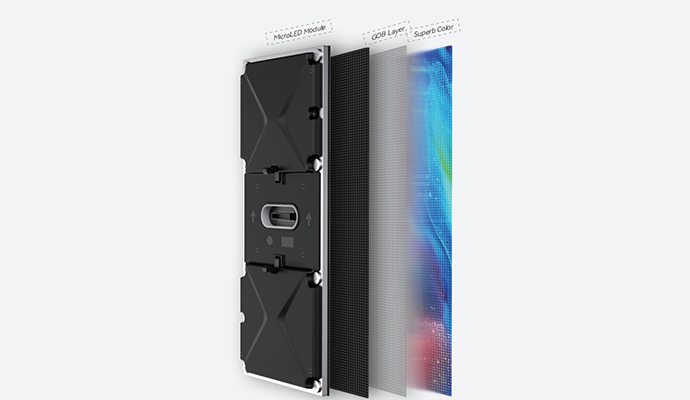

LED module is GOB protected, with the aluminum frame.

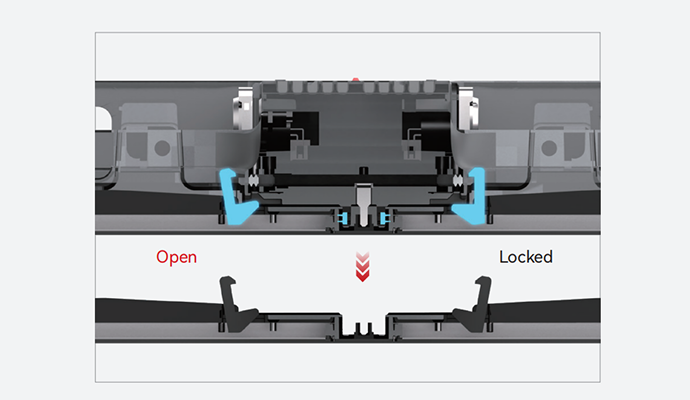

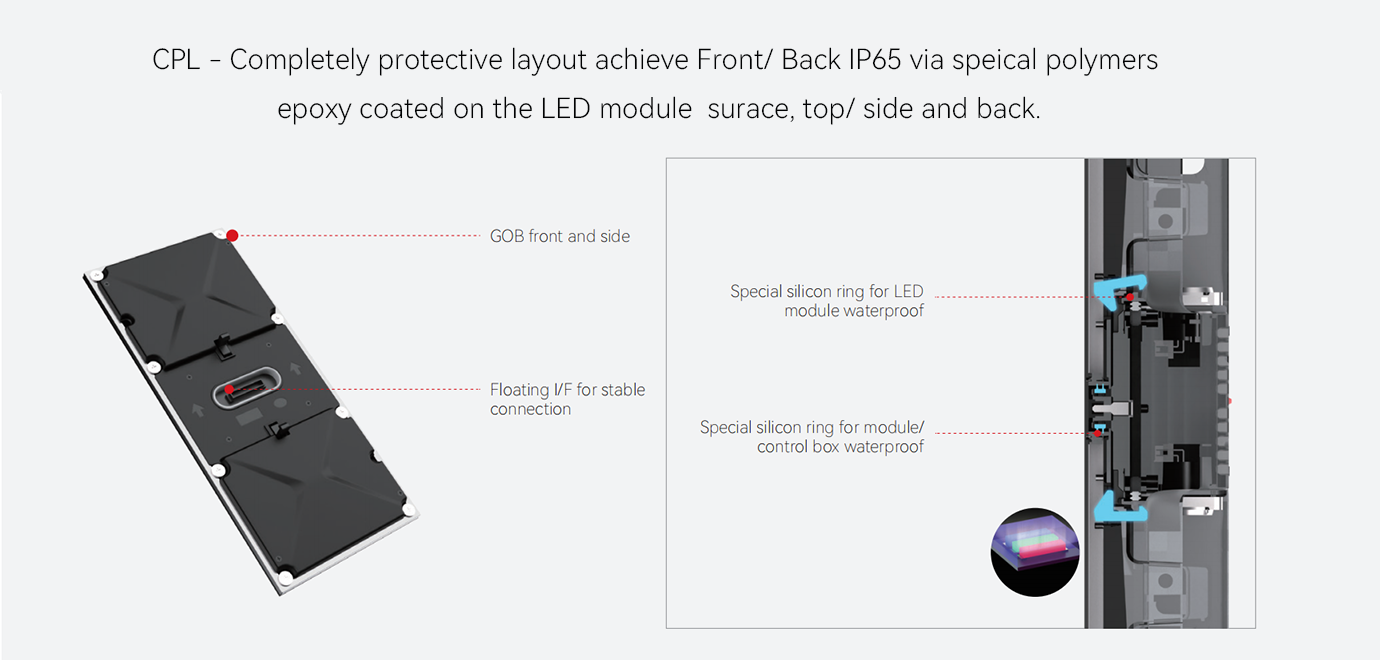

Solid - The Module and the Safety System

The lock system is with double safety setup, the magnectic + special lock, to be used in various harsh
enviornments.

Micro LED Full Flip Chip

Adopting Micro LED full flip chip and leadless MIP packaging process, it has high stability, high reliability, and conventional Outdoor products contrast increased by 1 times, brightness 2500nits-3500nits, better uniformity, lower energy consumption, higher cost performance, and other comprehensive technical and product advantages.

Efective Heat Management

> Less than 40 degree when play a video @600nits setting > 30% lower power consumption
> Micro LED to deliver the great visual perormance
> TUV low blue light radiation

Heat Sinker + High Co-efcency Cilicon O-ring

> MicroLED is in full fipchip package. The light efcency is super high.
> GOB to protect both the front and back for uniform heat dissapation.
> 3 ventilation tunnels inside of the products for better color uniformity and heat management.

High Refresh Rate, High Contrast Ratio

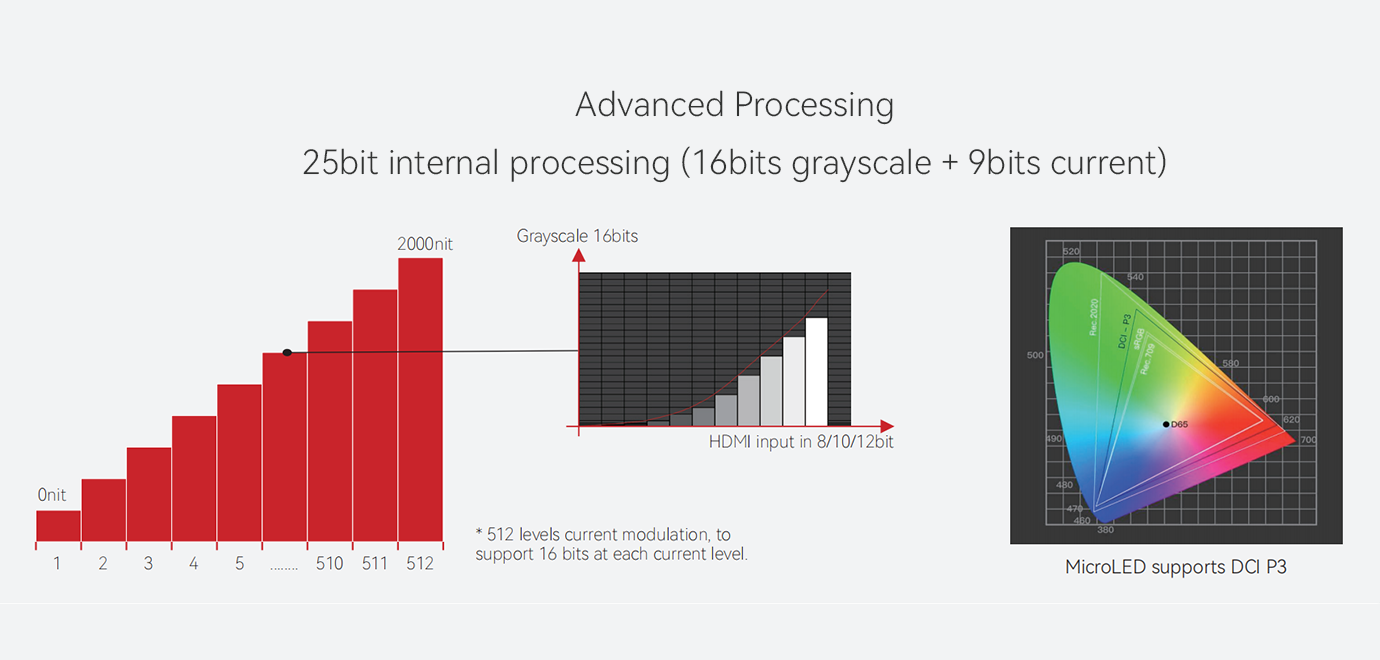

HDR - High Dynamic Range images

More dynamic range and image detail utilizes the best detail for each exposure time relative to the LDR image to synthesize the final HDR image. Can better reflect the real environment in the visual effects. Each pixel has not only the normal RGB information, but also the actual brightness information of that point. The light surface is fully sealed, the point light source becomes surface light source, the diffusion is uniform, and the view angle can be greatly increased.

Solution

Leyard MGS series outdoor fine pixel pitch has the aluminum die-casting cabinet. The GOB is formed by a special hig-tech material for outdoor harsh evniornments.

The product is solid for various application. There are numerious features inlcude the alu frame structure, efecitve heat management, low power consumption, IP65, MicroLED technology with fip chip packaging, the visual perormance is more than the imagination.


Application

Advertisements in squares

Shop windows in shopping malls

Bus stops

See More
Specifications
MGS1.2
MGS1.5
MGS1.8

Item

Pixel Configuration

Pitch (mm)

Module Resolution (WxH）

Panel Dimension (WxHxD, mm)

Pixel Density (pixel/㎡)

Unit Area (㎡)

Weight (Kg/cabinet; Kg/㎡)

Brightness (nits)

Color Temperature (K)

Viewing angle (horiz ; vert) °

Contrast Ratio

Refresh Rate (Hz)

Operational/Storage Temp(℃）

Operational/Storage Humidity (RH)

MGS1.2

Full Flip Chip 3in1

1.25

128x288

640x360x70

640,000

0.2304

8.5; 36.9

3000 ~ 4000 *

3000-10000 Adjustable

170; 170

10000:1

3840

-20 ~ 40; -30 ~ 60

10~80%; 10~85%

MGS1.5

Full Flip Chip 3in1

1.53

104x232

640x360x70

418,888

0.2304

8.5; 36.9

3000 ~ 4000 *

3000-10000 Adjustable

170; 170

10000:1

3840

-20 ~ 40; -30 ~ 60

10~80%; 10~85%

MGS1.8

Full Flip Chip 3in1

1.86

86x192

640x360x70

286,666

0.2304

8.5; 36.9

3000 ~ 4000 *

3000-10000 Adjustable

170; 170

10000:1

3840

-20 ~ 40; -30 ~ 60

10~80%; 10~85%

Remark: Above data is subject to change without prior notice
